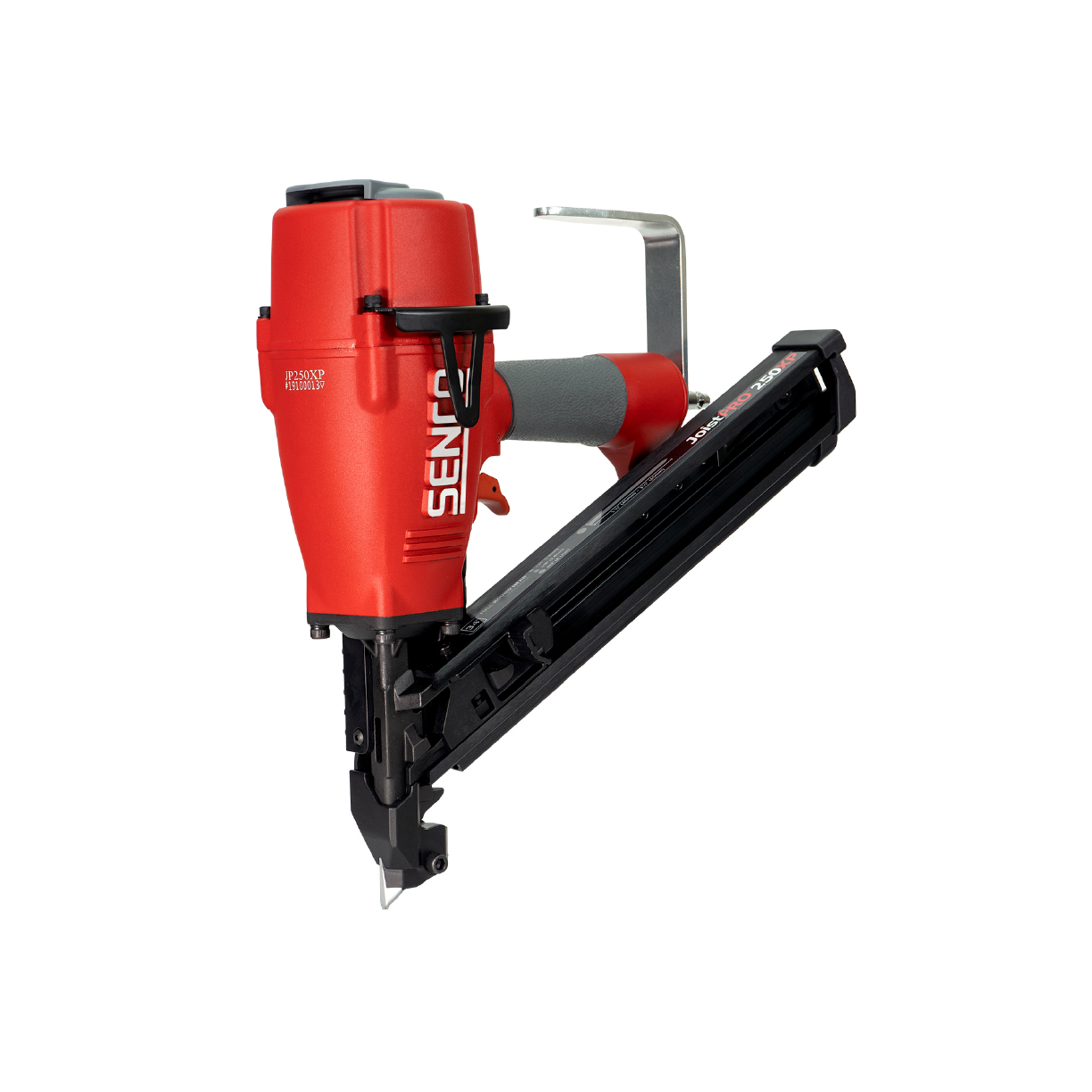

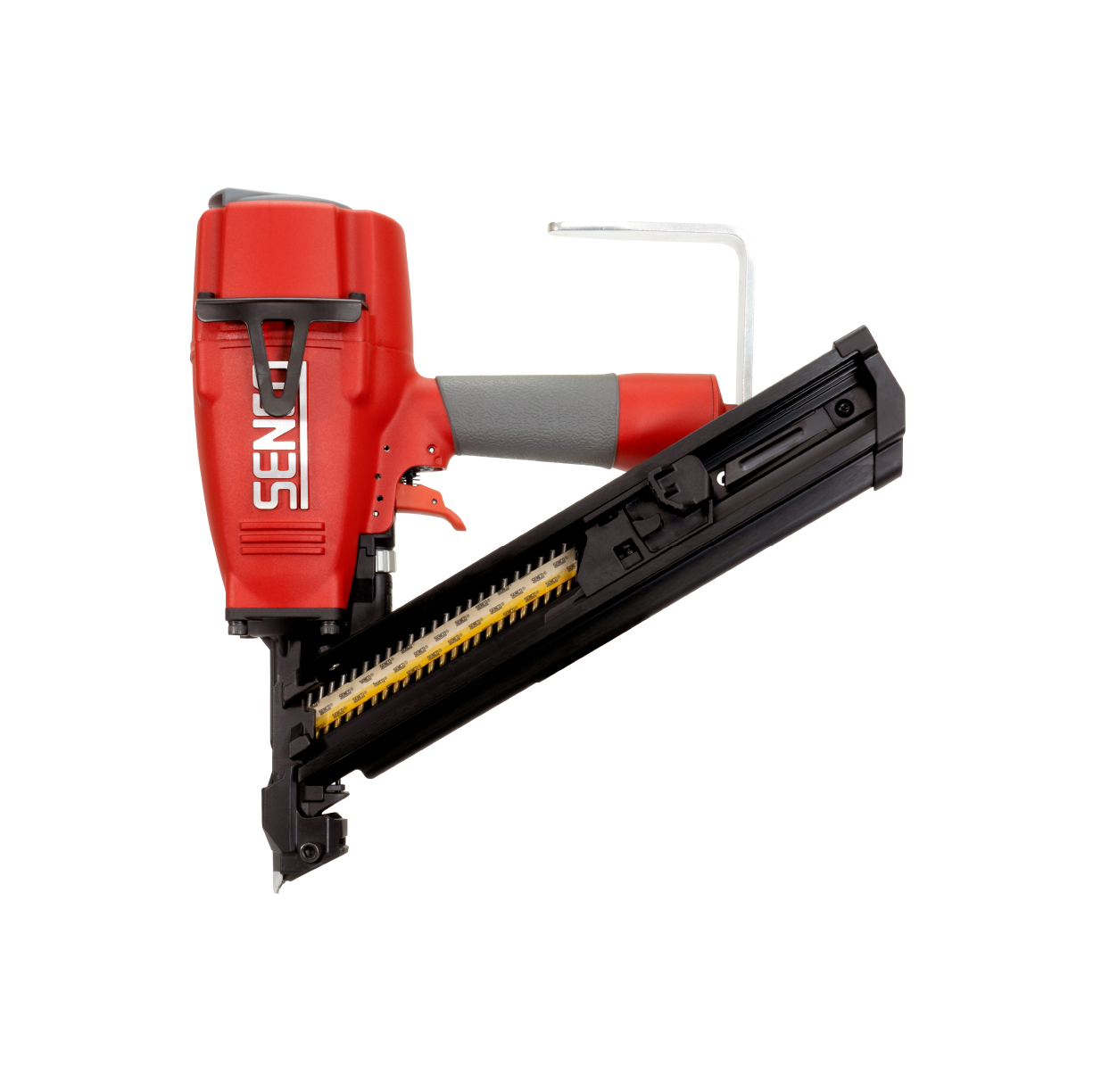

JoistPro™250XP

34°

2-1/2" Metal Connector Nailer

SHARE

The JoistPro™250XP is specifically designed for fastening pre-punched metal connection hardware into dense engineered lumber. This metal connector nailer is ideal for when code dictates larger nails are to be used, driving up to 2-½” metal connector nails through joist hangers, seismic and hurricane ties, and rafter straps. The innovative...
read more
EXPLORE COMPATIBLE FASTENERS
6K0001N

JoistPro™250XP

2-1/2" Metal Connector Nailer

Manual Parts Chart
Features
1

Increased Power

To drive through the toughest substrates, including engineered lumber

2

Lightweight and Well-Balanced Design

Perfect for extended use on the jobsite

3

Innovative Nosepiece Design

Ensures accurate nail placement on each drive

4

Tool-Free Depth Adjustment

For consistent flush or countersunk drives

5

Dry-fire Lockout

Prevents dry firing and signals when to reload

6

Adjustable Rafter Hanger

For added accessibility and convenience

7

360° Adjustable Exhaust

Directs air away from the operator or worksurface

8

Ergonomic Overmold Grip

Reduces fatigue and increases control of the tool

Applications
  • Joist Hangers
  • Rafter Straps
  • Anchors
  • Hurricane Ties
  • Metal Framing

SPECIFICATIONS

  • Item #: 6K0001N
  • Tool Weight: 5.9 lbs (2.68 kgs)
  • Height: 14.1" (359 mm)
  • Length: 13.8" (350 mm)
  • Width: 4.3" (110 mm)
  • Warranty: 5 years
  • Technology: PNEUMATIC
  • Trigger Type: Sequential Actuation
  • Capacity: 20
  • Power Type: Pneumatic
  • Operating Pressure: 70 - 120 (PSI)
  • Operating Pressure: 4.8 - 8.3 (Bar)
  • Air Consumption: 4.1 (SCFM)
  • Air Inlet NPT: 1/4"
  • Range: 1-1/2" - 2-1/2"
  • Diameter: 0.131" - 0.162"
  • Includes: Wrenches, Tool Oil, Safety Glasses Air Plug

FASTENERS

Compatible Fastners
Type: 34° Metal Connector Paper Tape Non-Heat Treated Nails
Degree: 34°
Range: 1-1/2" - 2-1/2"
Collation: 34° Angled Strip
Learn More
Disassembled Pinner Side View

HOW DO I REPLACE THE SEALS IN MY NAILER?

O-rings are simple, circular rubber seals that play an important role in the operation of pneumatic nail guns. They are used to prevent air from leaking between the moving parts of the piston driver assembly, exhaust, and the trigger valve. Additionally, nailers also have several plastic seals that serve the same purpose.

read more
