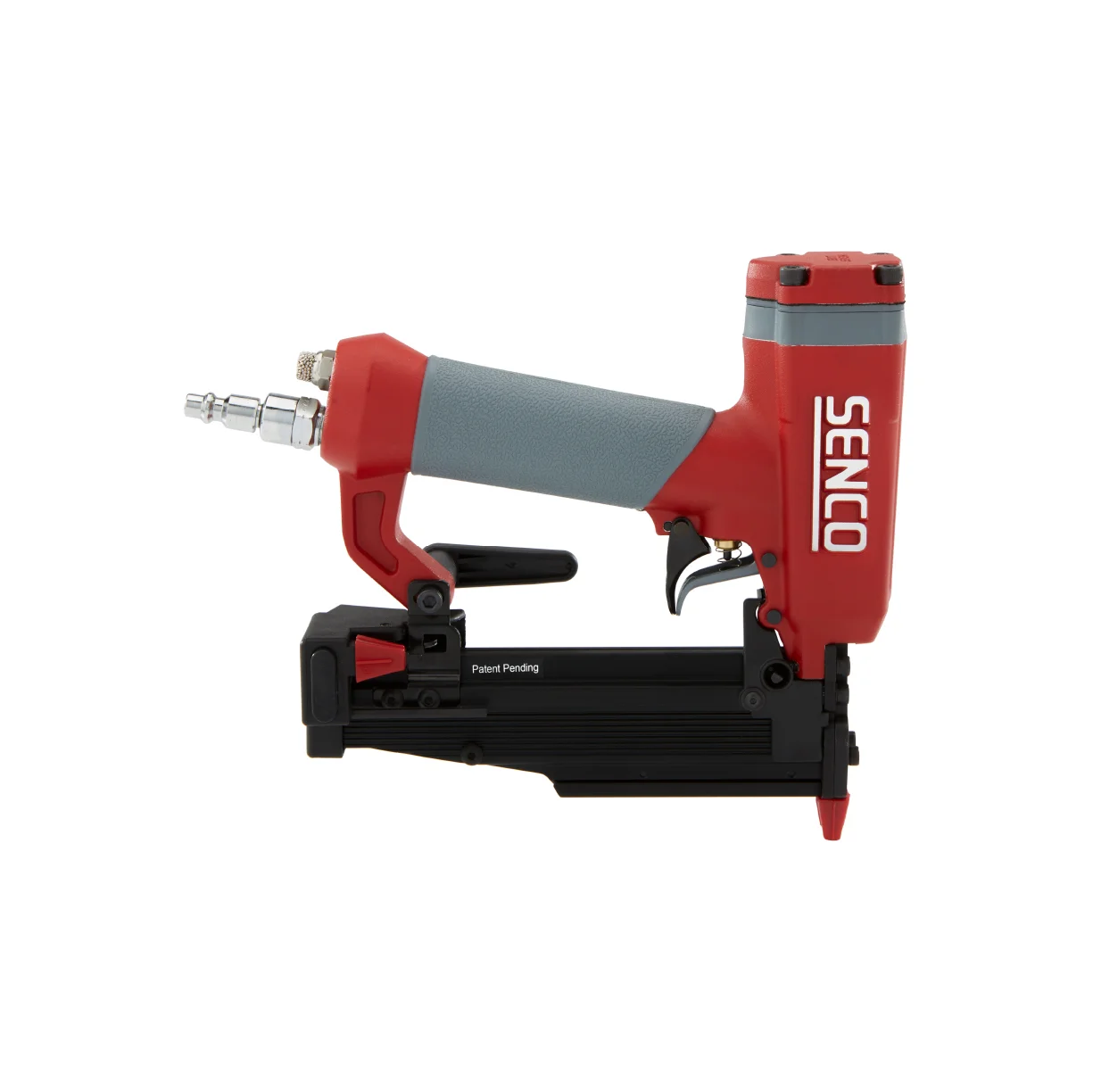

1-3/8” 23 GAUGE PINNER

Degree/Gauge Icon
  • NEVERLUBE® oil-free design
  • Magazine automatically adjusts for fastener length
  • Ergonomic angled “pistol-grip” handle
  • Ultra-narrow nosepiece
  • Reversible belt hook
Featuring SENCO’s NEVERLUBE® oil-free design, the tool never needs to be lubricated, eliminating stains to the work surface. SENCO’s 1-3/8” 23-gauge pin nailer allows you to fasten intricate millwork, casing, and other pieces of trim without splitting or requiring any touch up work. This 23-gauge headless pinner drives 1/2” to...
read more

1-3/8” 23 GAUGE PINNER

Features
1

NEVERLUBE® OIL-FREE DESIGN

Maintenance-free operation, eliminating the risk of oil spillover onto the work surface

2

MAGAZINE ADJUSTS TO FASTENERS

Automatically conforms to fit different pin lengths

3

ERGONOMIC ANGLED “PISTOL-GRIP” HANDLE

Improves control of the tool for comfortable all-day operation

4

ULTRA-NARROW NOSEPIECE

Easy access to tight corners and other hard to reach areas

5

REVERSIBLE BELT HOOK

Mounts to either side of the tool for right or left handed use

6

LAST NAIL LOCKOUT

Prevents dry-firing

7

REAR EXHAUST WITH EMBEDDED MUFFLER

Includes ¼” swivel air plug

8

LOW LOAD INDICATOR

Shows when it’s time to reload (on reverse side of tool)

9

DUAL TRIGGER

Added safety precaution to prevent accidental fires

Applications
  • Fine woodworking
  • Molding and decorative trim

SPECIFICATIONS

  • Item #: TN11G1
  • Tool Weight: 2.41 lbs (1.09 kgs)
  • Height: 7.8" (198 mm)
  • Length: 8.57" (218 mm)
  • Width: 2.6" (66 mm)
  • Warranty: 5 years
  • Technology: PNEUMATIC
  • Trigger Type: Sequential Dual Trigger
  • Capacity: 100
  • Power Type: Pneumatic
  • Operating Pressure: 70-100 (PSI)
  • Operating Pressure: 4.8 - 6.9 (Bar)
  • Air Consumption: 1.1 (60 CPM) (SCFM)
  • Air Inlet NPT: 0.25"
  • Max Pressure: 100 psi
  • Range: 1/2" - 1-3/8"
  • Includes: Case, Swivel Air Plug, Wrench

FASTENERS

Compatible Fasteners
Type: 23 Ga. Straight Strip Micro Pins
Gauge: 23
Range: 1/2" - 1-3/8"
Collation: Straight Strip
