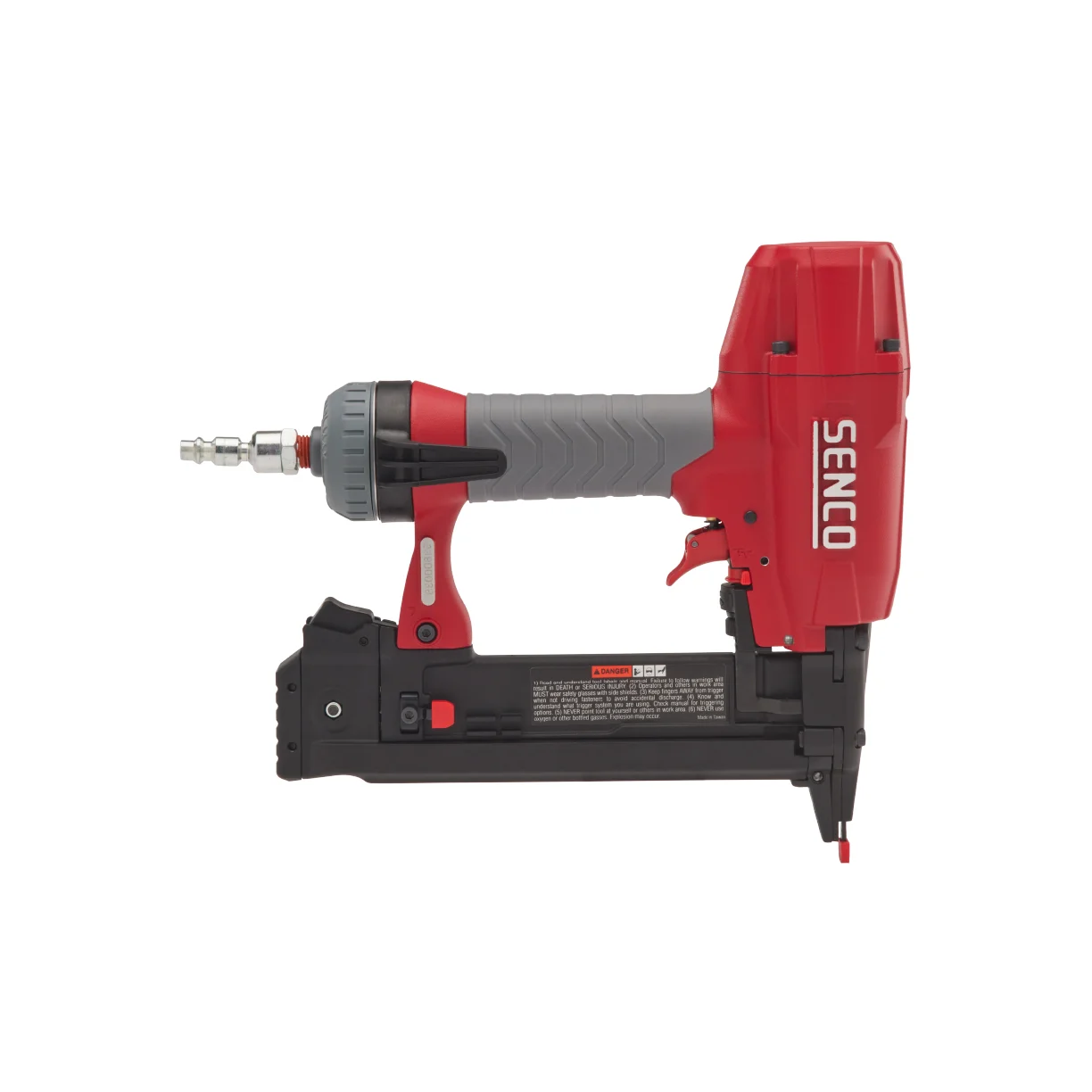

LS61H1P

1/4” CROWN, 1-1/2” 18 GAUGE FINISH STAPLER

18GA

SHARE Facebook Share Twitter Share Linkedin Share Print

  • Oil-less design eliminates the need for routine lubrication
  • Selectable trigger to switch between contact or sequential firing modes
  • Tool-free depth adjustment for consistent flush or countersunk drives
  • 360° adjustable exhaust directs air away from the operator or worksurface
  • Rotatable belt hook for quick right/left hand access
The LS61H1P is an 18-gauge finish stapler that drives ¼” crown staples from 3/8” to 1-1/2” in length. Convenience features like SENCO’s oil-less design eliminates the need for routine lubrication. This stapler is ideal for woodworking, cabinetry, and both internal and external trim applications.
EXPLORE COMPATIBLE FASTENERS
LS61H1P

1/4” CROWN, 1-1/2” 18 GAUGE FINISH STAPLER

Features
1

OIL-LESS DESIGN

Routine lubrication is not required. Saving you time with daily maintenance

2

SELECTABLE TRIGGER

Makes it easy to switch between contact or sequential firing modes

3

TOOL-FREE DEPTH ADJUSTMENT

For consistent flush or countersunk drives

4

360° ADJUSTABLE EXHAUST

Directs air away from the operator and worksurface

5

ROTATABLE BELT HOOK

Provides quick right/left hand access when needed

6

ERGONOMIC OVERMOLDED GRIP

Reduces fatigue and increases control of the tool

7

NO-MAR PAD

Protects the worksurface from being scratched or damaged. Extra no-mar pad included

8

RELOAD INDICATOR

Allows the user to quickly identify when it’s time to reload (not visible, on reverse side of tool)

9

SWIVEL PLUG

For added maneuverability

10

ALUMINUM MAINBODY

Durable and lightweight

Applications
  • Woodworking
  • Cabinets
  • Soffits
  • Drawer assembly

SPECIFICATIONS

  • Item #: LS61H1P
  • Tool Weight: 3.1 lbs (1.4 kgs)
  • Height: 9.5" (241 mm)
  • Length: 10.25" (260 mm)
  • Width: 2.5" (65 mm)
  • Warranty: 5 years
  • Technology: PNEUMATIC
  • Trigger Type: Selectable Actuation
  • Power Source: Pneumatic
  • Capacity: 110
  • Power Type: Pneumatic
  • Operating Pressure: 70-120 (PSI)
  • Operating Pressure: 4.8 - 8.3 (Bar)
  • Air Consumption: 2.4 (SCFM)
  • Air Inlet NPT: 1/4""
  • Range: 3/8" - 1-1/2"
  • Includes: Carrying Case, 1/4" Fitting

FASTENERS

Compatible Fasteners
Type: 18 Ga. 1/4" Crown Medium Wire Staples
Gauge: 18
Range: 3/8" - 1-1/2"
Collation: Glued
