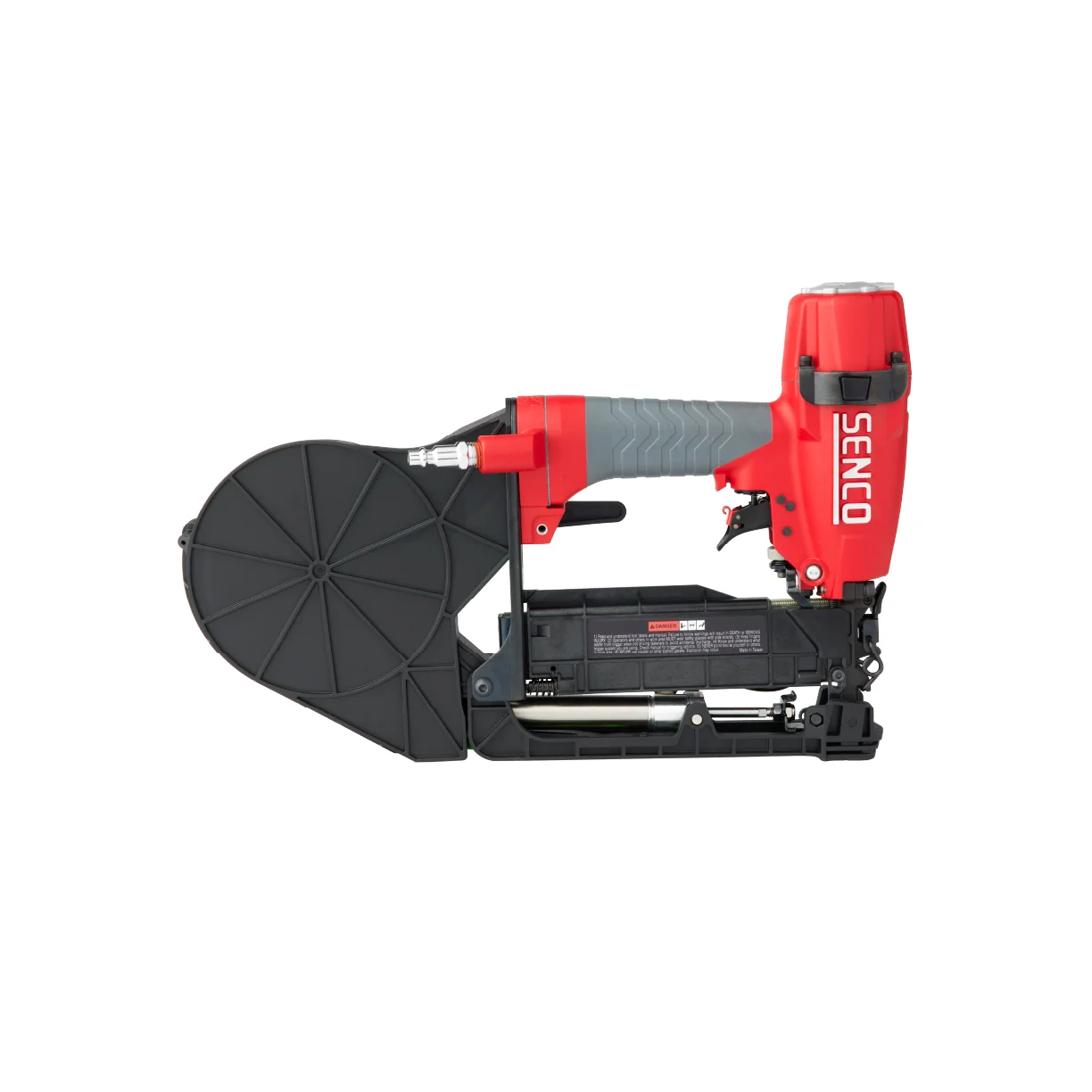

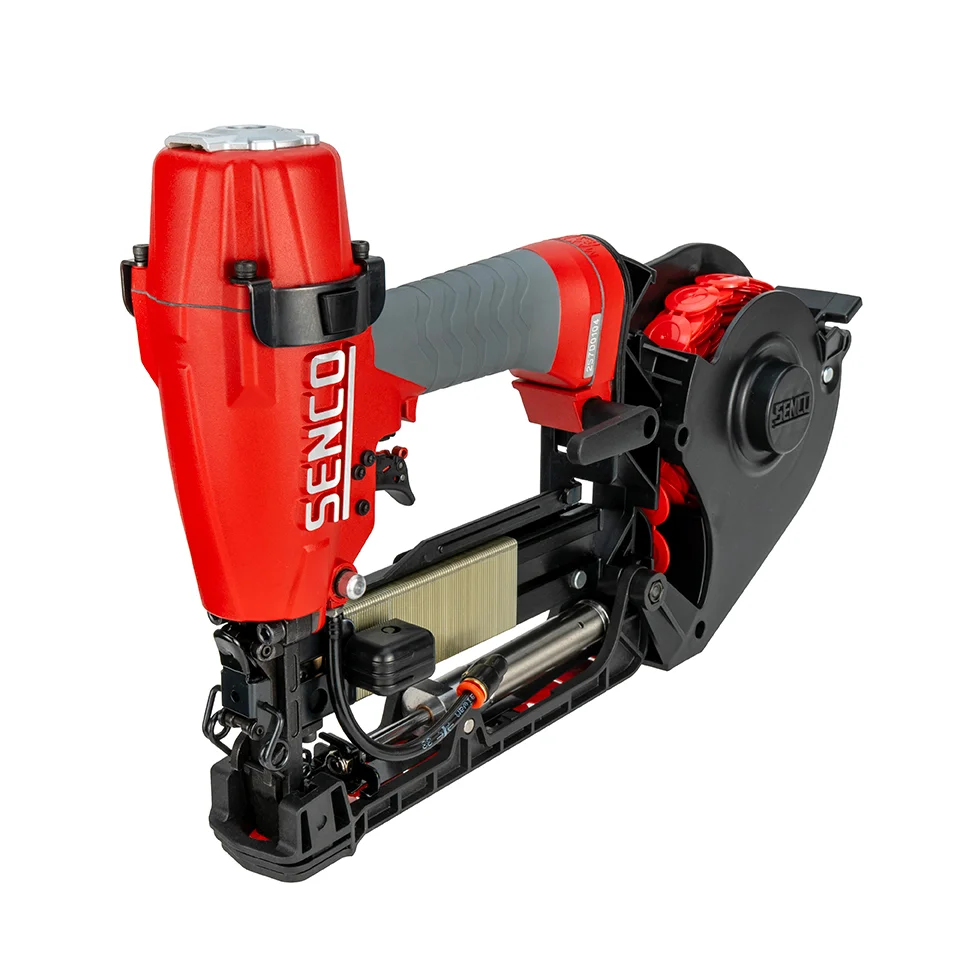

turned view of CS61H1 cap stapler
alternate angle of CS61H1 cap stapler
turned view of CS61H1 cap stapler
alternate angle of CS61H1 cap stapler
CS61H1

3/8″ Crown, 1-1/2″ 18 Gauge Cap Stapler

Degree/Gauge Icon

CS61H1

SHARE Facebook Share Twitter Share Linkedin Share Print

  • Rugged top-load magazine keeps caps secure during use
  • Cap bypass switch to drive staples for door and window jambs
  • In-line compact feed system for optimal line of sight
  • Wear guards for increased durability
  • Cap alignment plate keeps caps firmly in place
Weighing in at only 4.5 lbs., the CS61H1 is a lightweight stapler that drives 18-gauge, 3/8” crown, 5/8” – 1-1/2” staples with plastic caps. Its in-line compact feed system and top-load cap magazine secure the caps while providing optimal line of sight and maneuverability. The cap bypass switch allows the...
read more
EXPLORE COMPATIBLE FASTENERS
CS61H1

3/8″ Crown, 1-1/2″ 18 Gauge Cap Stapler

CS61H1

Features
Image of CS61H1 with Feature indicators
1

TOP-LOAD CAP MAGAZINE

Rugged top-load magazine with spring loaded door keeps caps secure and protected from the elements during use

2

CAP BYPASS SWITCH

Drive staples without caps for applications like door and window jambs

3

IN-LINE MAGAZINE

Improves line of sight and tool maneuverability

4

WEAR GUARDS

Protects tool body from abrasive surfaces and increases durability

5

CAP ALIGNMENT PLATE

Keeps cap firmly in place when firing, eliminating missed caps

6

TOOL-FREE DEPTH ADJUSTMENT

Quickly change drive depth

7

SELECTABLE TRIGGER

Easily switch between contact or sequential firing modes

8

QUICK CLEAR LATCH

Remove jams or misfeeds without the use of a tool

9

360° ADJUSTABLE EXHAUST

Directs air away from the operator and worksurface

10

ERGONOMIC OVERMOLDED GRIP

Reduces fatigue and increases control of the tool

11

REVERSIBLE BELT HOOK

Mounts to either side of the tool for right or left-handed use

Applications

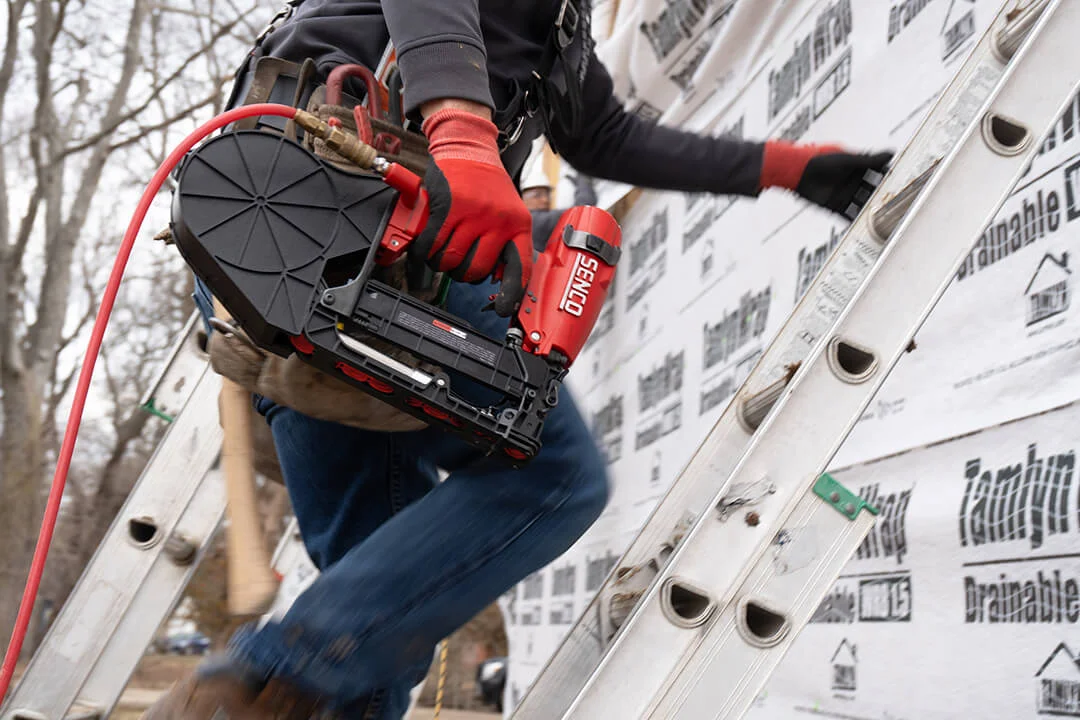

  • House wrap
  • Roofing felt
  • Foam board

SPECIFICATIONS

  • Item #: CS61H1
  • Tool Weight: 4.48 lbs (2.0 kgs)
  • Height: 10.25" (260.4 mm)
  • Length: 15.65" (397.6 mm)
  • Width: 3.95" (100.4 mm)
  • Warranty: 5 years
  • Technology: PNEUMATIC
  • Trigger Type: Selectable Actuation
  • Capacity: 125 Staples, 200 Caps
  • Range: 5/8" - 1-1/2"
  • Crown: 3/8"
  • Power Type: Pneumatic
  • Operating Pressure: 70 - 120 PSI (4.8 - 8.3 Bar)
  • Air Consumption: 2.25 SCFM
  • Air Inlet NPT: 3/8""
  • Includes: Carrying Case, 1/4" Male Coupler, Parts Chart, Manual

FASTENERS

Compatible Fasteners
Type: 18 Ga. 3/8″ Crown Staple Pack
Gauge: 18
Range: 5/8" - 1-1/2"
Collation: Glued
Learn More
