PC0781

A20 Hand Nailer

7" Bulk Nailer

SHARE Facebook Share Twitter Share Linkedin Share Print

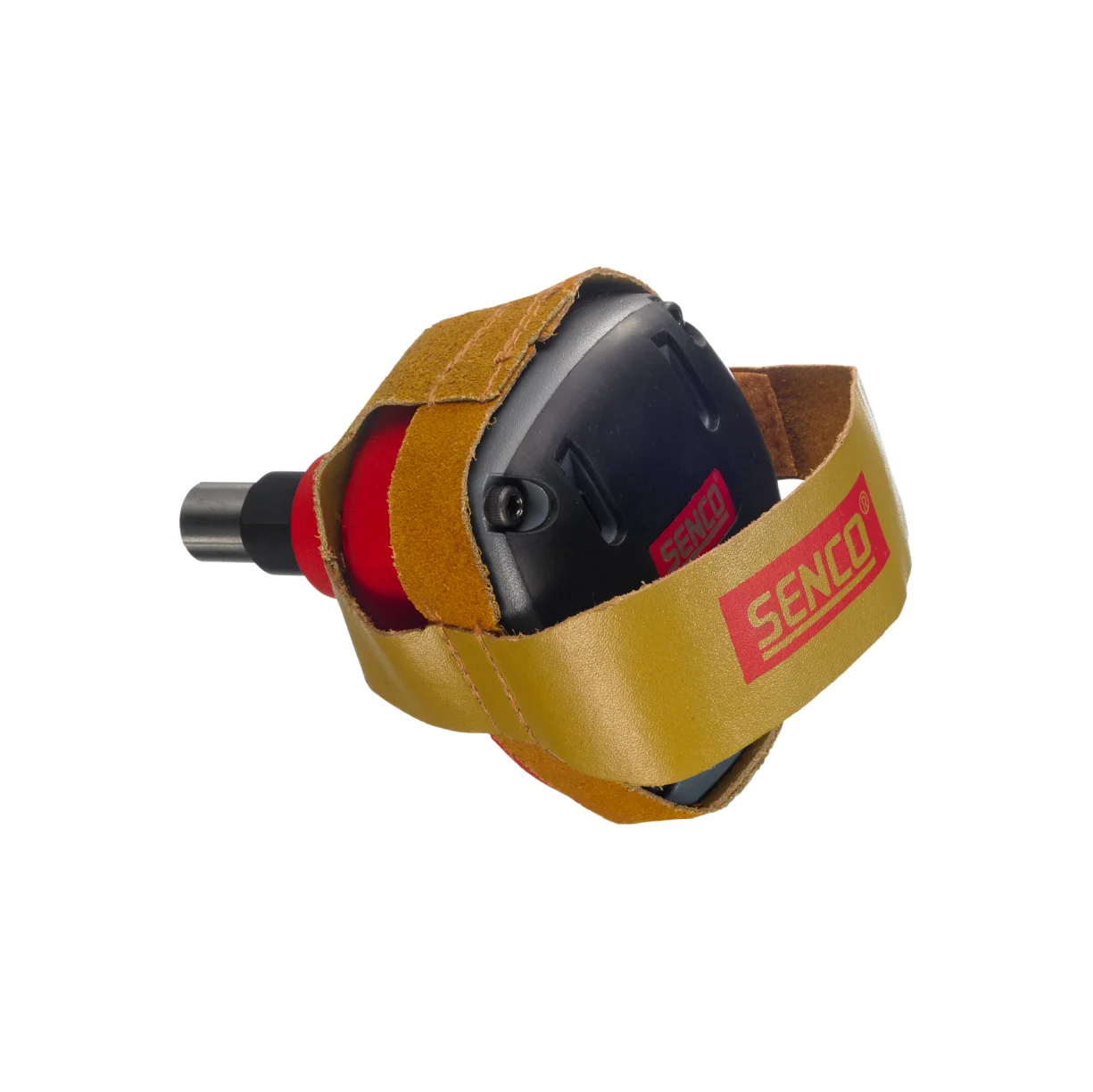

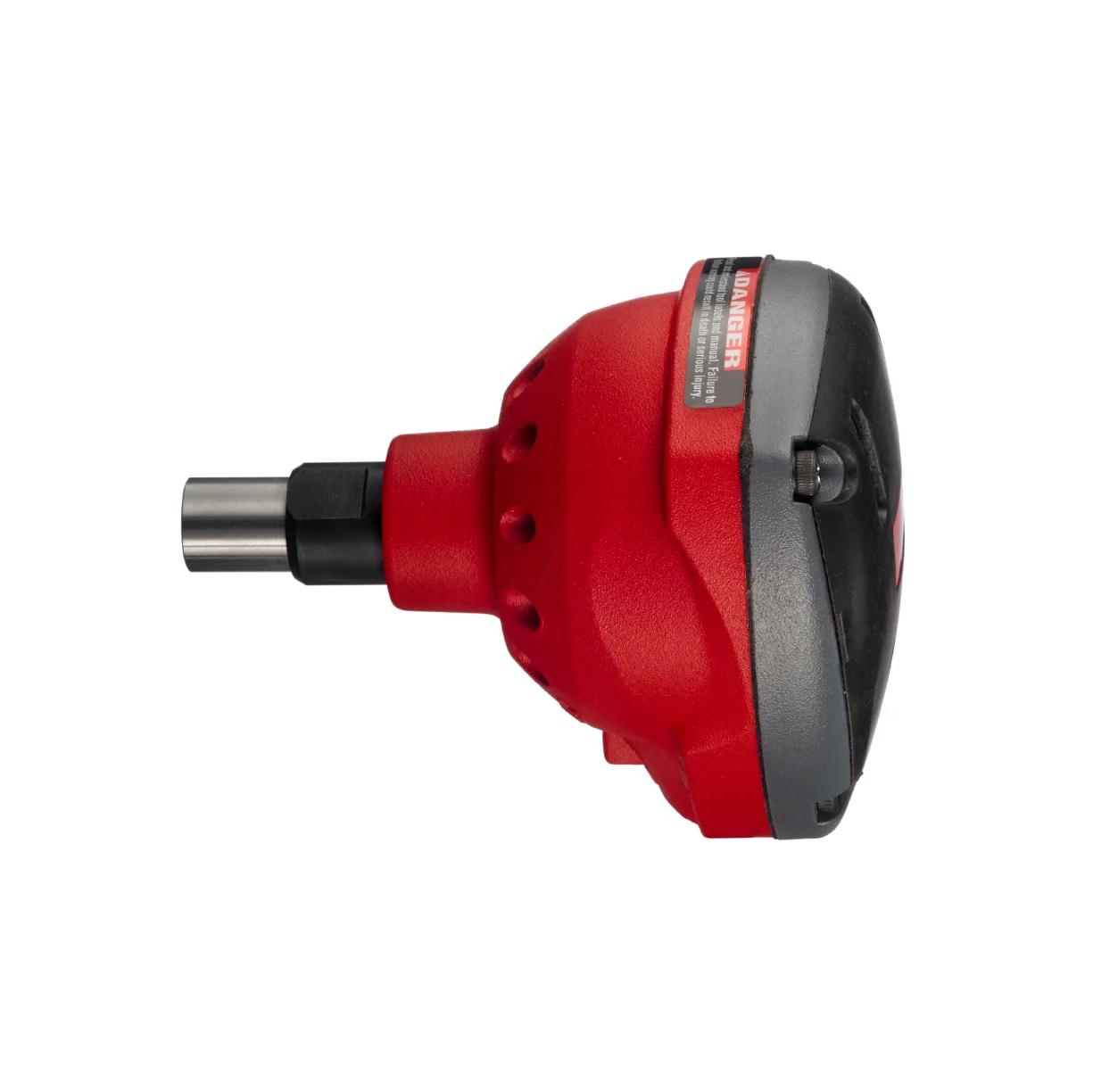

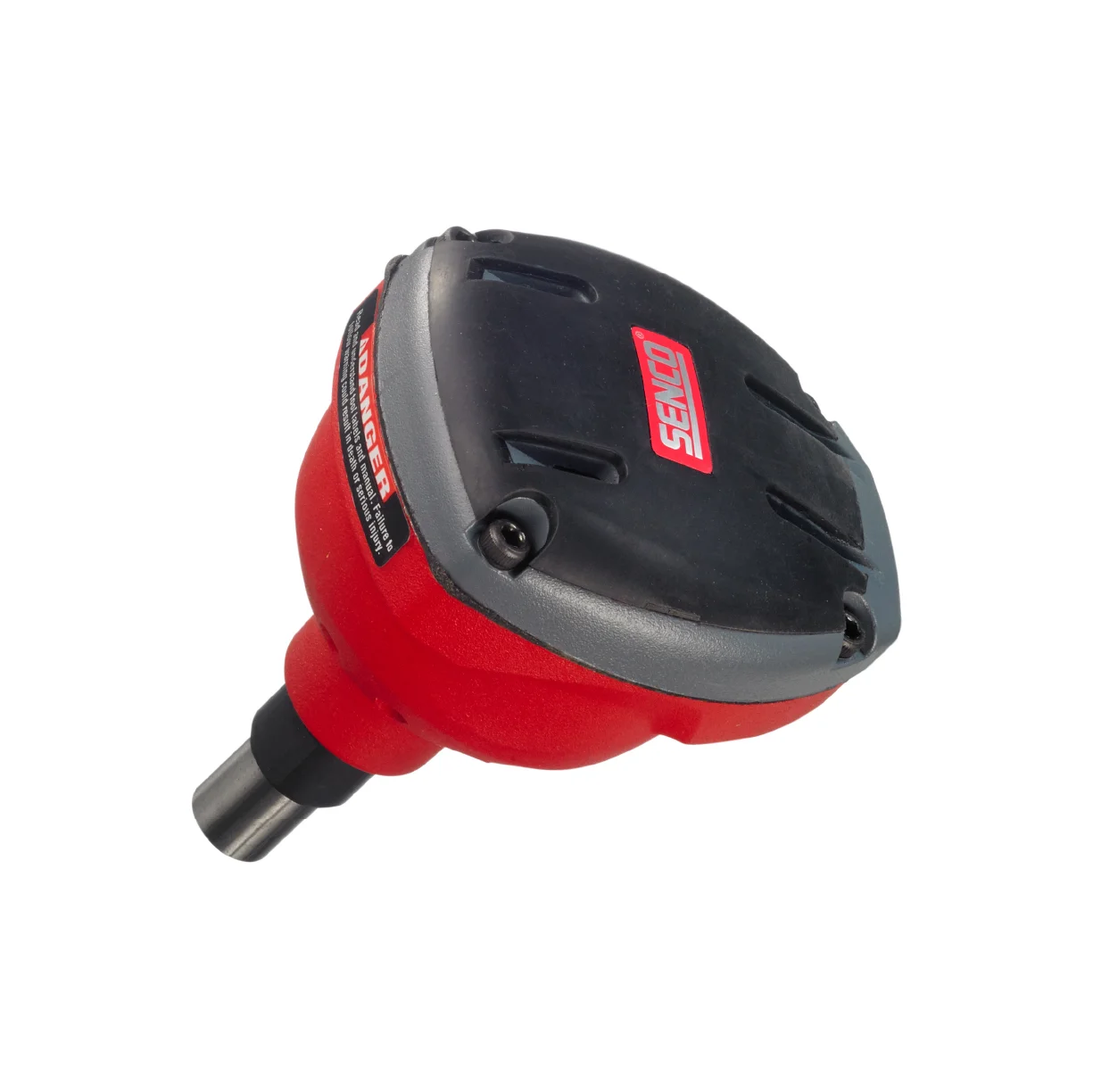

The A20 pneumatic hand nailer from SENCO is designed for installing pre-punched metal connection hardware with limited space. The magnetic tip keeps nails in place when fastening 2”-7” loose bulk nails through joist hangers, seismic and hurricane ties, and rafter straps. The soft rubber palm and leather strap help reduce...

A20 Hand Nailer

7" Bulk Nailer

Manual Parts Chart

Features

1

Lightweight 2.4 lbs. Aluminum Body

2

Soft Rubber Palm Pad

For comfortable grip

3

Magnetic tip

Keeps the nail in place

4

Depth Control

Allows for countersink adjustment

5

Included Leather Strap

To help reduce fatigue

Applications

Installing Metal Framing Hardware
Anchors & Straps

SPECIFICATIONS

Item #: PC0781
Tool Weight: 2.4 lbs (1.1 kgs)
Height: 5.8" (122 mm)
Length: 4" (101 mm)
Width: 3.25" (83 mm)
Warranty: 1 years
Technology: PNEUMATIC
Trigger Type: Contact Actuation

Capacity: 1
Power Type: Pneumatic
Operating Pressure: 50 - 125 (PSI)
Operating Pressure: 3.5 - 8.4 (Bar)
Air Consumption: 2 - 4 (SCFM)
Air Inlet NPT: 3/8"
Range: 2" - 7"
Includes: Leather Strap for Comfort
