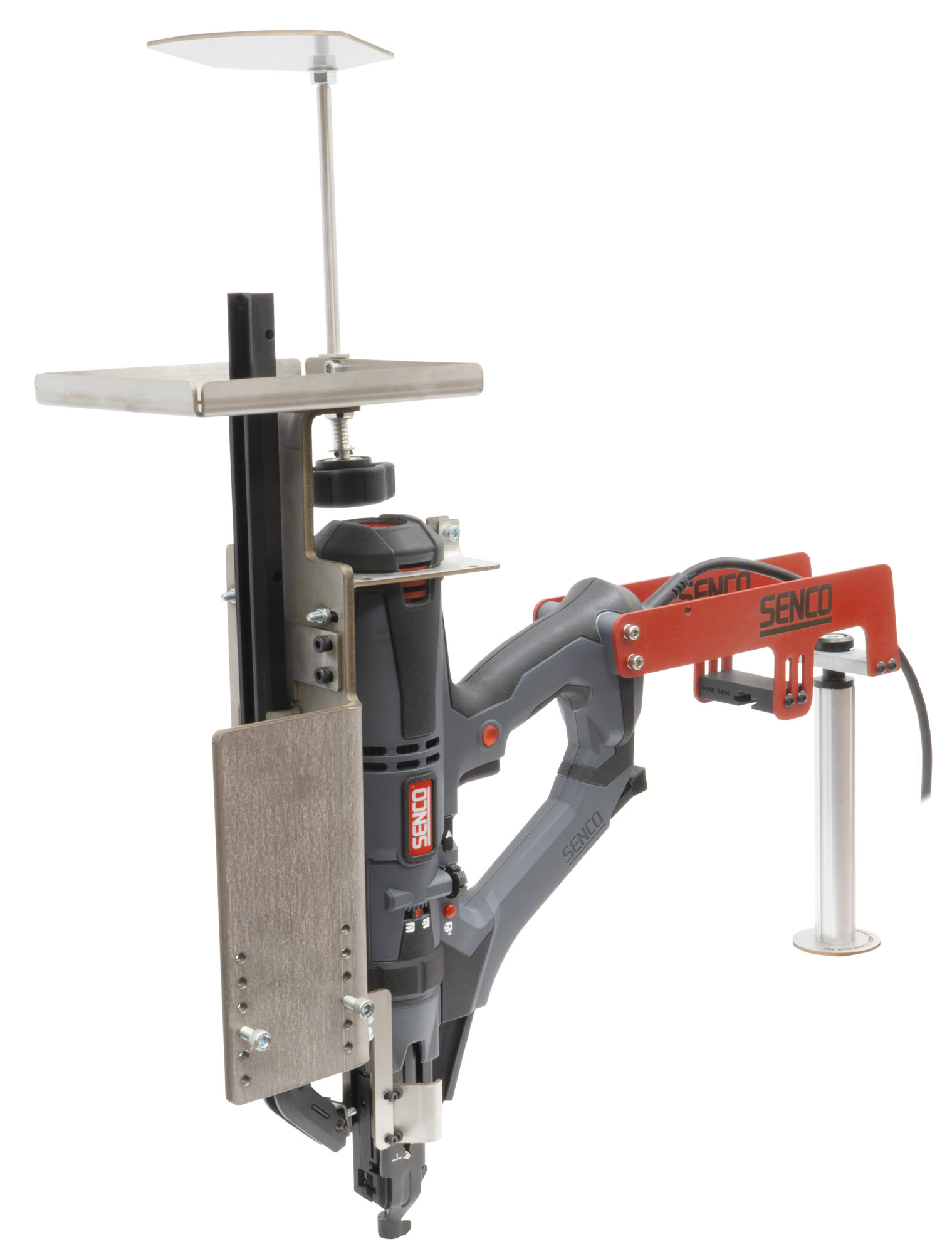

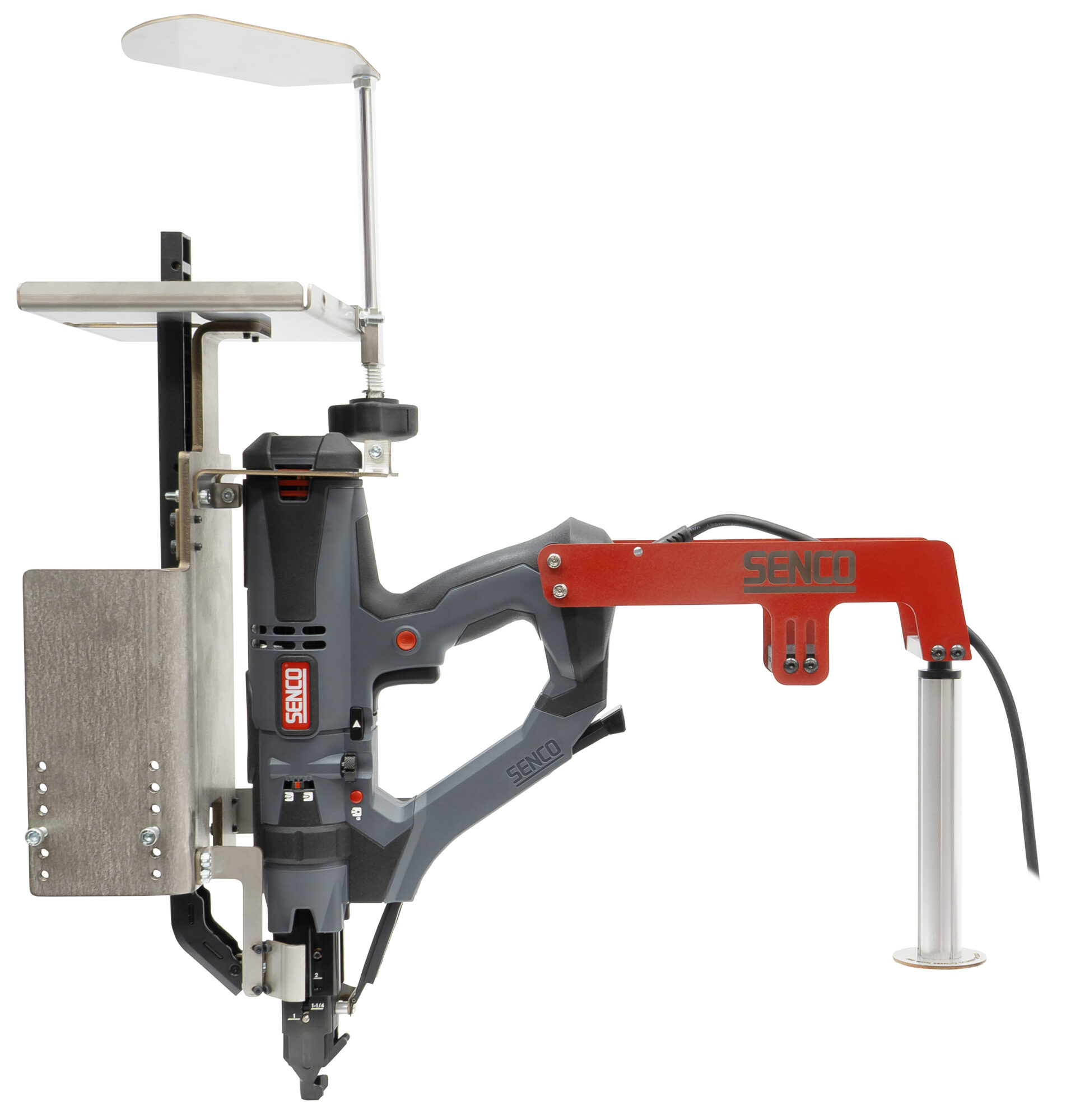

DS342-SL Series
2500 RPM Mounted Collated Screwdriver
Applications
- Mounted applications including wall and floor panels
Fasteners Driven
- Collation Flexible Plastic Strip
DS342-SL Series
VERSATILE 120V 2500 RPM SCREWDRIVER
Drives a wide variety of screws, quick slide button for quick bit changes and tool free screw length adjustment
SINGLE CONNECTION POINT
Easily mounts to multiple bridge/ mounting systems
EXCLUSIVE FASTENER PACKAGING
Screw strip mounts to spool arm directly through packaging, shipping box doubles as collection bin for expelled collated strip

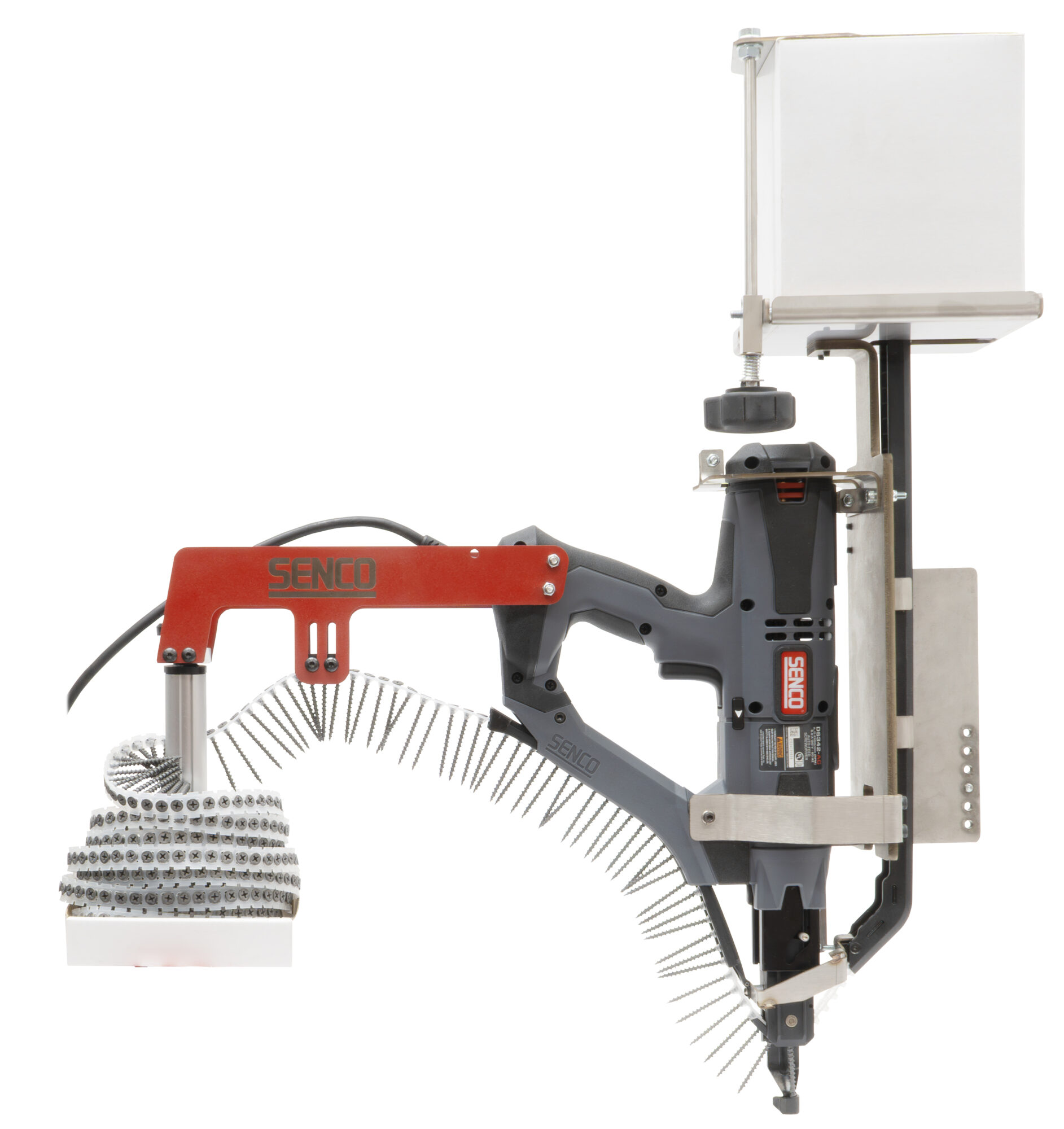

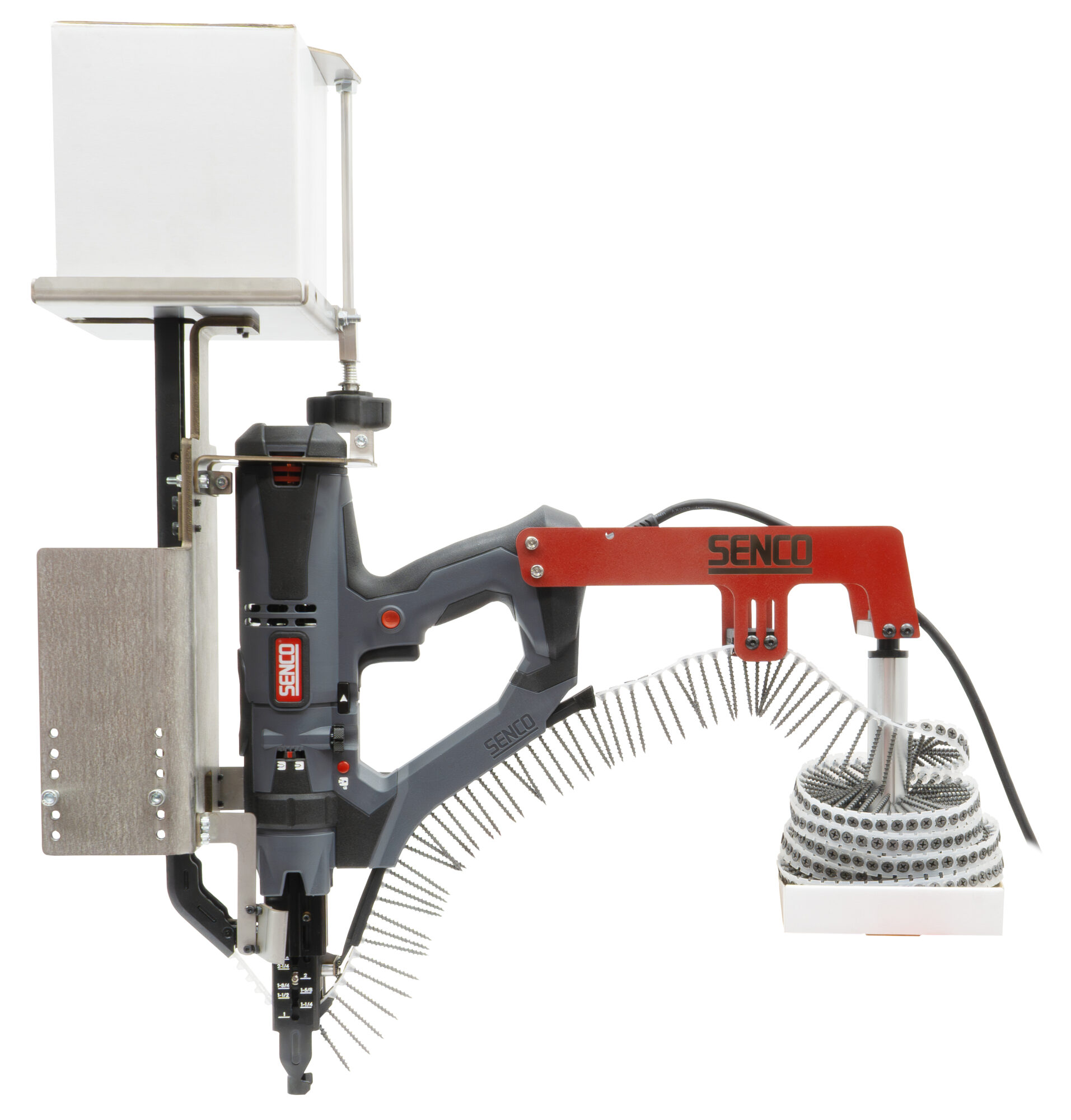

STRIP GUIDE SYSTEM
Simplifies screw reloading, prevents strip tangling, feeds empty strip to collection bin
SLIM PROFILE
Tools nest closely together so multiple screwdrivers can be mounted on a single bridge
AC POWERED
Tools use bridge electrical system to power screwdrivers on and off
TOOL SPECIFICATIONS
- Tool Weight: 16.52 lbs (7.5 kgs)
- Height: 26.6" (676 mm)
- Length: 22.4" (569 mm)
- Width: 6.8" (172 mm)
- Capacity: 500
- Fastener Range: 1" - 2"
- RPM: 2500
- Includes: DS342-AC screwdriver, Screw Spindle, Bridge Mount, Strip Guide Collection System
FASTENERS
Compatible Fasteners
Application: Drywall to Wood
Gauge: 6 and 7 "
Range: 1¼" - 2"
Thread: Coarse
Finish: Gray Phosphate
Drive Type: Phillips
Point: Sharp
Head: Bugle
Gauge: 6 and 7 "
Range: 1¼" - 2"
Thread: Coarse
Finish: Gray Phosphate
Drive Type: Phillips
Point: Sharp
Head: Bugle
Application: Gypsum to Heavy Steel
Gauge: 6
Range: 1 ¼” - 1 5/8"
Thread: Fine
Finish: Clear Zinc
Drive Type: Phillips
Point: Drill
Head: Bugle
Gauge: 6
Range: 1 ¼” - 1 5/8"
Thread: Fine
Finish: Clear Zinc
Drive Type: Phillips
Point: Drill
Head: Bugle
Application: Wood to Wood
Gauge: 8
Range: 1 ¾” - 2"
Thread: Double
Finish: Yellow Zinc
Drive Type: REX
Point: Cut (Type 17)
Head: Flat
Gauge: 8
Range: 1 ¾” - 2"
Thread: Double
Finish: Yellow Zinc
Drive Type: REX
Point: Cut (Type 17)
Head: Flat
