10G0001N

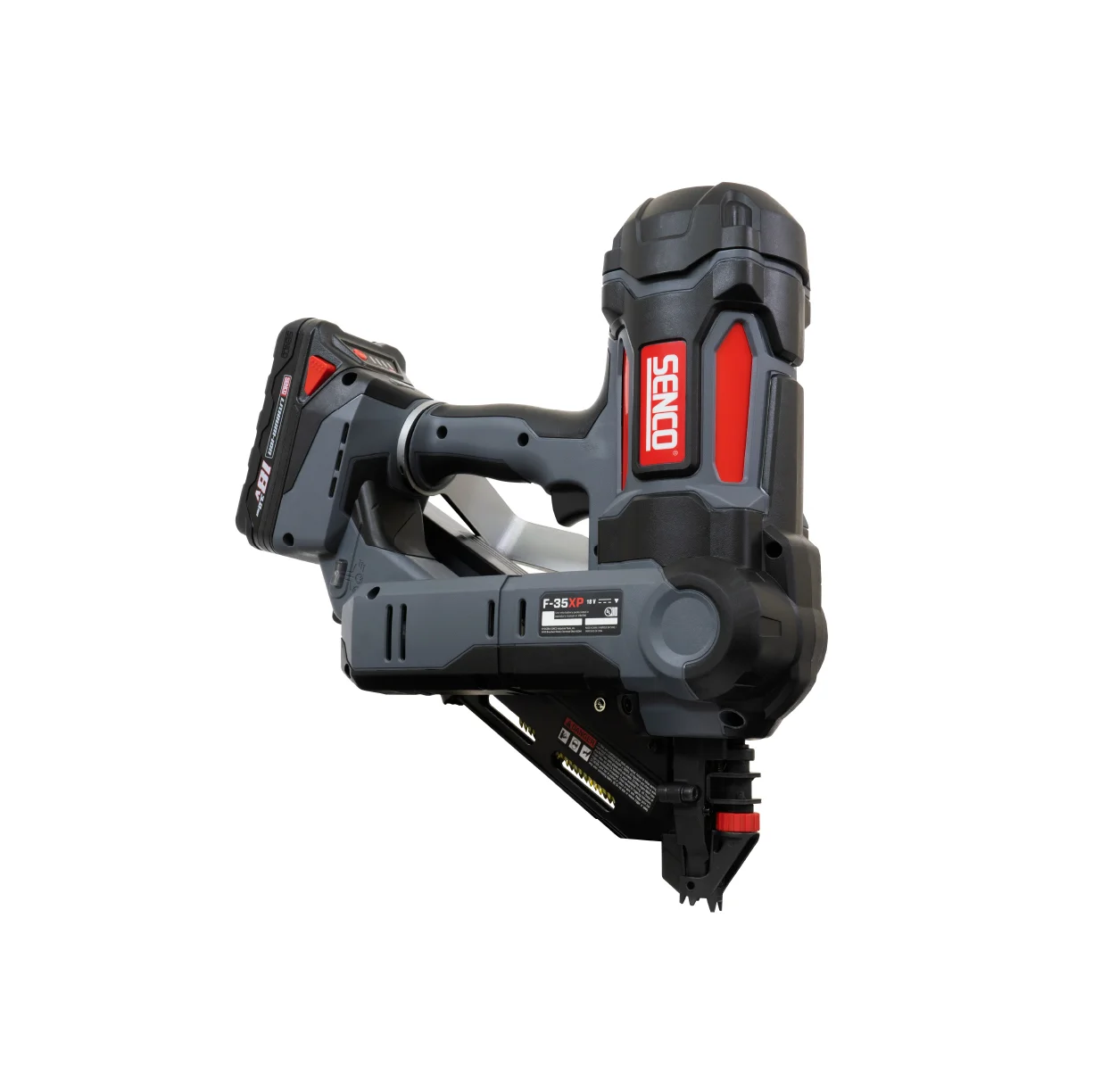

F-35XP

34°

3-1/2” Cordless Paper Tape Framing Nailer

SHARE

  • Fusion cordless air-power technology
  • No hose, compressor or fuel cell
  • Pneumatic-like response with no ramp-up time
  • Jam reduction intelligence for fewer nail jams
  • Dry fire lockout
Combining true pneumatic feel, speed and power with cordless convenience, the F-35XP drives up to 3-1/2” x .148” framing nails into the hardest substrates without the expense and hassle of fuel cells. With its robust design and durable construction, the F-35XP is ideal for professional framers and contractors.
EXPLORE COMPATIBLE FASTENERS
10G0001N

F-35XP

3-1/2” Cordless Paper Tape Framing Nailer

Manual Parts Chart
Features
1

FUSION CORDLESS AIR-POWER TECHNOLOGY

Operates like a true pneumatic with no ramp-up time, providing the power to sink nails completely into hard substrates including engineered lumber

2

PRESSURE RELIEF VALVE & REFILLABLE AIR PORT

Simplifies service repair and tool maintenance

3

BRUSHLESS MOTOR

Efficient, consistent performance

4

RUGGED RAFTER HOOK

Rotatable, aluminum design keeps tool secure when not in use

5

TOOL-FREE DEPTH OF DRIVE

Quickly and easily sets the drive depth

6

SELECTABLE ACTUATION SWITCH

Easily and safely change from sequential to bump fire modes

7

AGGRESSIVE TOENAIL SAFETY

Provides extra grip for toenail applications, no-mar tip included

8

DRY FIRE LOCKOUT

Reduces tool wear and indicates the need to reload fasteners

9

ALUMINUM MAGAZINE

Ultra-durability for the toughest work conditions

10

ON-BOARD INDICATOR

Nail jam and battery recharge notification

11

BATTERY STATUS LIGHT

Quickly shows battery power level

Applications
  • Framing
  • Panelized construction
  • Truss building
  • Subflooring
  • Sheathing
  • Decking
  • Siding
  • Fencing
  • Pallet and crate assembly

SPECIFICATIONS

  • Item #: 10G0001N
  • Tool Weight: 11.37 lbs (5.16 kgs)
  • Height: 14.375" (366 mm)
  • Length: 14.00" (356 mm)
  • Width: 5.50" (140 mm)
  • Warranty: 5 years
  • Battery: 3.0Ah 18V Li-ion Battery
  • Charger: 80% in 30 minutes; 100% in 60 minutes
  • Fasteners Per Charge: 600
  • Amp Draw: 5
  • Technology: FUSION
  • Trigger Type: Selectable Actuation
  • Power Source: Electric
  • Capacity: 60
  • Power Type: Cordless
  • Range: 2" - 3-1/2"
  • Diameter: 0.113" - 0.148"
  • Includes: (2) VB0190 3.0Ah 18V Li-Ion Batteries, Charger, No Mar Pad, Storage Bag

FASTENERS

Compatible Fastners
Type: 34° Ring Shank Paper Tape Collated Nails
Degree: 34°
Range: 2" - 2-3/8"
Collation: 34° Angled Strip
Type: 34° Screw Shank Paper Tape Collated Nails
Degree: 34°
Range: 3
Collation: 34° Angled Strip
Type: 34° Smooth Shank Paper Tape Collated Nails
Degree: 34°
Range: 2" - 3-1/2"
Collation: 34° Angled Strip
Type: ProHead® 34° Smooth Shank Paper Tape Nails
Degree: 34°
Range: 2" - 3-1/2"
Collation: 34° Angled Strip
Learn More
Disassembled Pinner Side View

HOW DO I REPLACE THE SEALS IN MY NAILER?

O-rings are simple, circular rubber seals that play an important role in the operation of pneumatic nail guns. They are used to prevent air from leaking between the moving parts of the piston driver assembly, exhaust, and the trigger valve. Additionally, nailers also have several plastic seals that serve the same purpose.

read more
