9T0001N

PS15XP

16GA

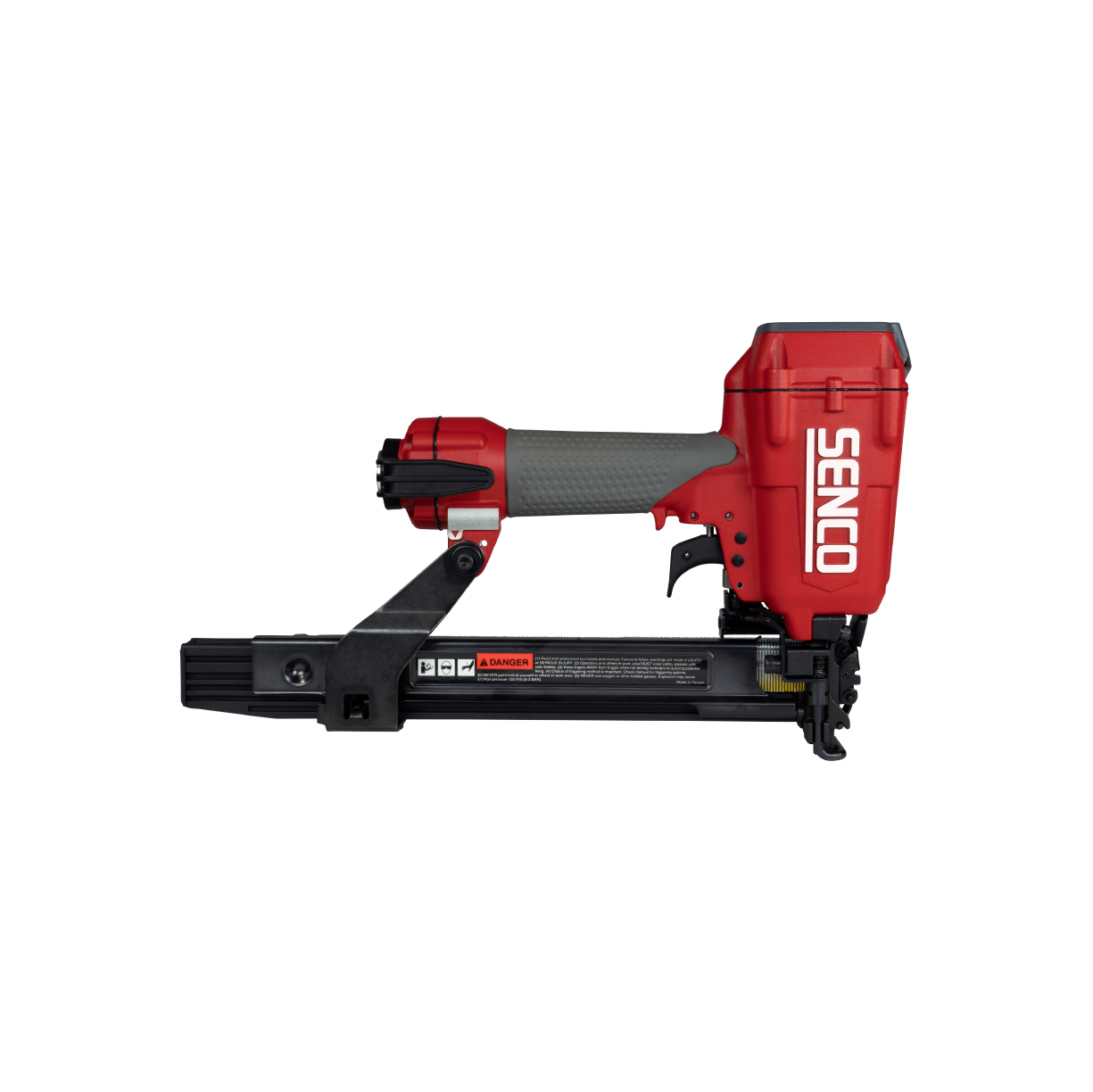

1" Wide Crown, 1-1/2" Construction Stapler

SHARE

Constructed of durable, high strength components, the PS15XP has been developed for extreme performance and longevity. The drive track design and quick clear latch improve the overall holding power of the fasteners, increasing drive performance, and virtually eliminating fastener jams and misfires. This construction stapler is suited for wire lathing,...
read more
EXPLORE COMPATIBLE FASTENERS
9T0001N

PS15XP

1" Wide Crown, 1-1/2" Construction Stapler

Manual Parts Chart
Features
1

Quick Clear Latch

Remove jams or misfeeds without the use of a tool

2

Drive track

Eliminates unwanted movement of staple, enhancing overall drive performance

3

Robust Firing Valve Design

Makes the tool faster, more powerful, and easier to maintain

4

Tool-free Depth Adjustment

For consistent flush or countersunk drives

5

Adjustable Belt Hook

Allows for quick access to the tool when needed

6

Aluminum Housing

Reduces weight and provides superior durability

7

Ergonomic Overmolded Grip

Reduces fatigue and increases control of the tool

8

Exhaust Cap

Directs exhaust downward away from the operator

9

Tapered Body

Improves line of sight

10

3/8" Air Inlet

For increased air flow

Applications
  • Furniture Framing
  • Wire Lathe
  • Foam Insulation Board

SPECIFICATIONS

  • Item #: 9T0001N
  • Tool Weight: 5.5 lbs (2.5 kgs)
  • Height: 9" (229 mm)
  • Length: 15.25" (387 mm)
  • Width: 4" (105 mm)
  • Warranty: 5 years
  • Technology: PNEUMATIC
  • Trigger Type: Contact Actuation
  • Capacity: 160
  • Power Type: Pneumatic
  • Operating Pressure: 70 - 120 (PSI)
  • Operating Pressure: 4.8 - 8.3 (Bar)
  • Air Consumption: 3.18 (SCFM)
  • Air Inlet NPT: 3/8"
  • Range: 1/4" - 1-1/2"

FASTENERS

Compatible Fastners
Type: 16 Ga. 1" Crown Heavy Wire Staples
Gauge: 16
Range: 5/8" - 1-1/2"
Collation: Taped
Learn More
Disassembled Pinner Side View

HOW DO I REPLACE THE SEALS IN MY NAILER?

O-rings are simple, circular rubber seals that play an important role in the operation of pneumatic nail guns. They are used to prevent air from leaking between the moving parts of the piston driver assembly, exhaust, and the trigger valve. Additionally, nailers also have several plastic seals that serve the same purpose.

read more
