580101N

SNS45XP

Degree/Gauge Icon

2" Construction Stapler

SHARE Facebook Share Twitter Share Linkedin Share Print

  • Fast - up to 15 staples per second
  • Quick clear latch to easily clear jams or misfeeds
  • Adjustable depth-of-drive for consistent flush or countersunk drives
  • 360° adjustable exhaust directs air away from the operator or worksurface
  • Top loading magazine

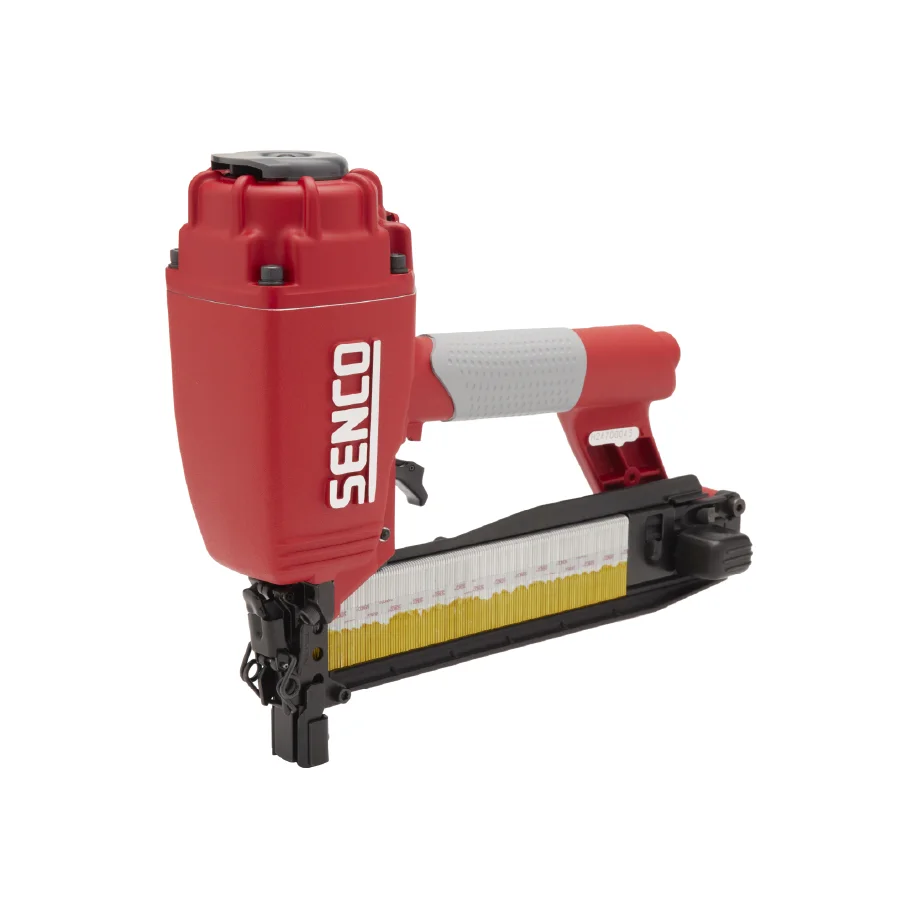

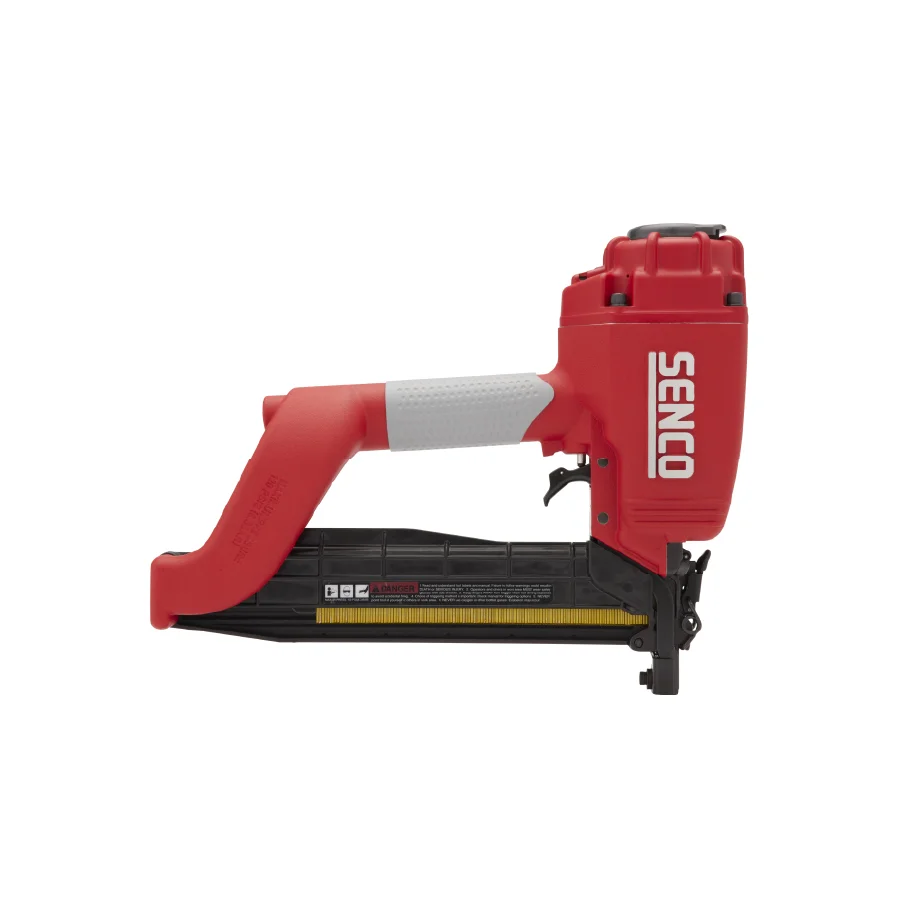

The SNS45XP is a lightweight and efficient 16-gauge construction stapler, capable of driving up to 15 staples per second. This stapler features an easyto-use top-loading magazine for quick reloads, driving 16-gauge 7/16” crown staples up to 2” in length.
EXPLORE COMPATIBLE FASTENERS
580101N

SNS45XP

2" Construction Stapler

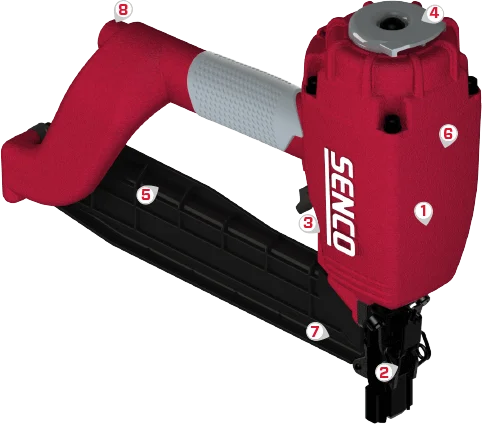

Features
SNS45XP
1

FAST & POWERFUL

Driving up to 15 staples per second into the densest substrates

2

QUICK CLEAR LATCH

Remove jams or misfeeds without the use of a tool

3

Tool-free Depth Adjustment

Quickly change drive depth for flush or countersunk drives

4

360° ADJUSTABLE EXHAUST

Directs air away from the operator and worksurface

5

TOP LOADING MAGAZINE

Easy release feed system for efficient reloads

6

ALUMINUM HOUSING

Reduces weight and provides superior durability

7

RELOAD INDICATOR

Allows the user to quickly identify when it’s time to reload (not visible, on reverse side of tool)

8

3/8" AIR INLET

For increased airflow

Applications
  • Framing
  • Sheathing
  • Subflooring
  • Crate and box assembly
  • Fascia and soffits
  • Pallets and pallet repair

SPECIFICATIONS

  • Item #: 580101N
  • Tool Weight: 5.1 lbs (2.3 kgs)
  • Height: 11" (279 mm)
  • Length: 14" (356 mm)
  • Width: 3.5" (90 mm)
  • Warranty: 5 years
  • Technology: PNEUMATIC
  • Trigger Type: Contact Actuation
  • Capacity: 160
  • Range: 1" - 2"
  • Crown: 7/16"
  • Operating Pressure: 80 - 120 PSI (5.5 - 8.3 Bar)
  • Air Consumption: 5.52 SCFM
  • Air Inlet NPT: 3/8""

FASTENERS

Compatible Fasteners
Type: 16 Ga. 7/16″ Crown Heavy Wire Staples
Gauge: 16
Range: 1" - 2"
Collation: Taped
