750101N

SNS50XP

Degree/Gauge Icon

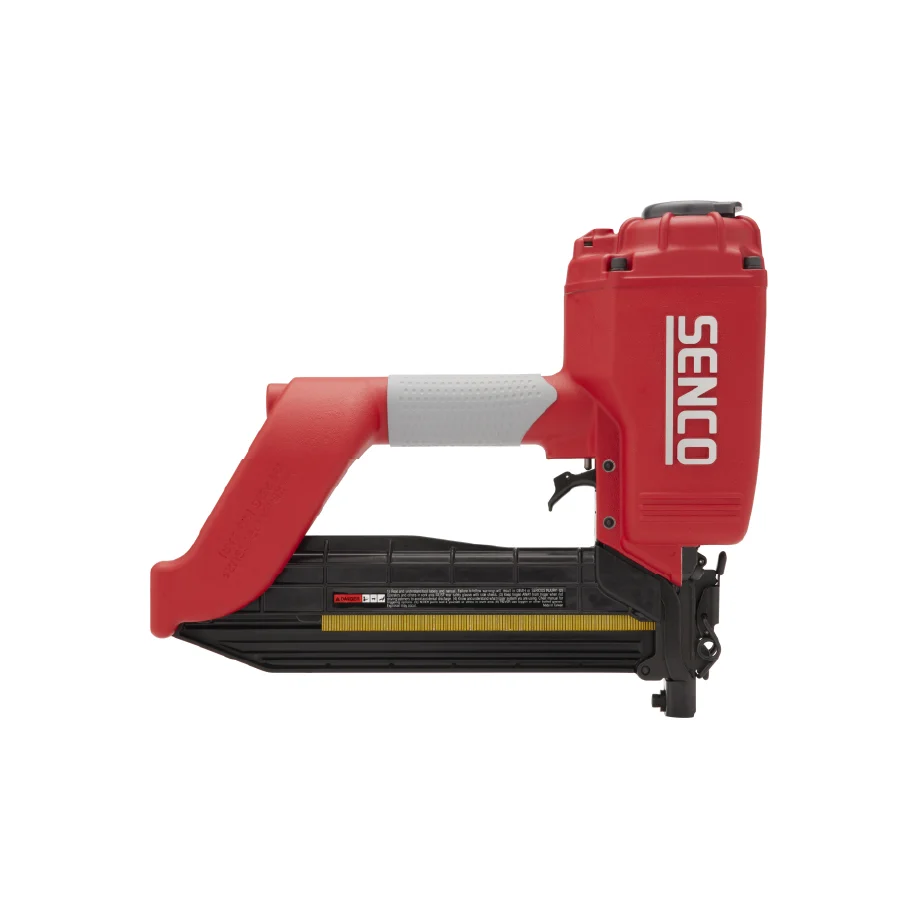

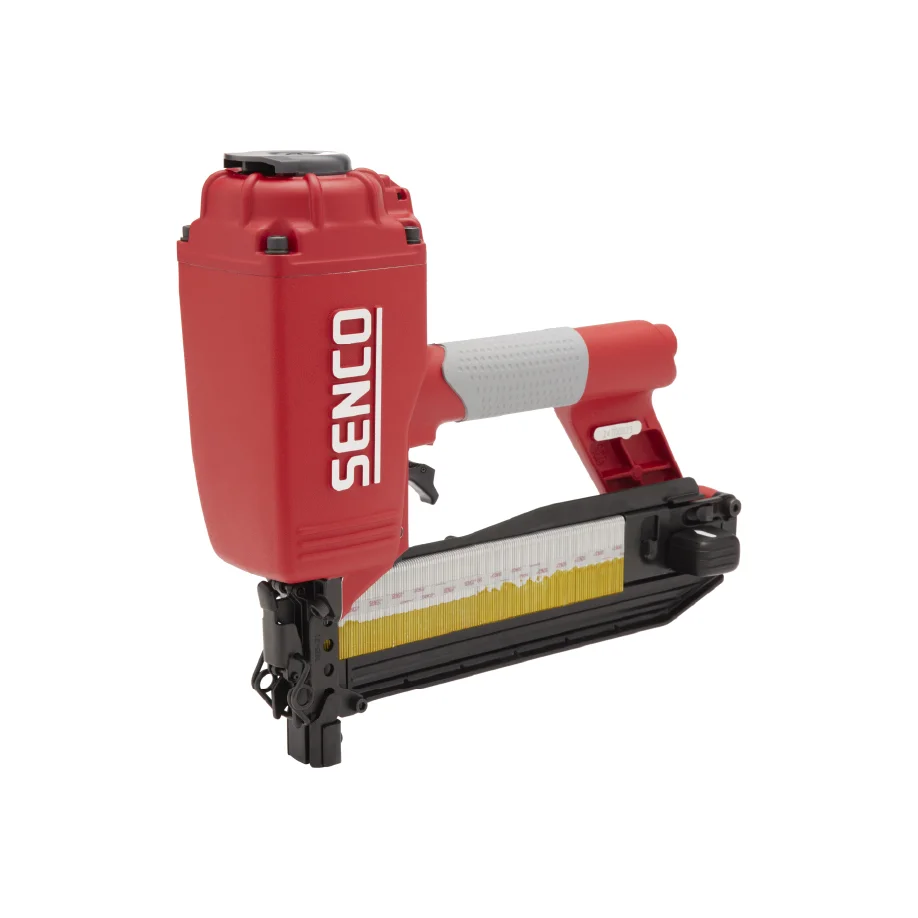

2" Construction Stapler

SHARE Facebook Share Twitter Share Linkedin Share Print

  • Fast - up to 15 staples per second
  • Quick clear latch to easily clear jams or misfeeds
  • Adjustable depth-of-drive for consistent flush or countersunk drives
  • 360° adjustable exhaust directs air away from the operator or worksurface
  • Top loading magazine
The exceptionally rugged SNS50XP has the power to drive up to 15 staples per second into dense woods and laminates commonly found in today’s framing and sheathing applications. This 16-gauge construction stapler features a top loading magazine with an easy release feed system that allows for quick reloads, driving 7/16”...
read more
EXPLORE COMPATIBLE FASTENERS
750101N

SNS50XP

2" Construction Stapler

Manual Parts Chart

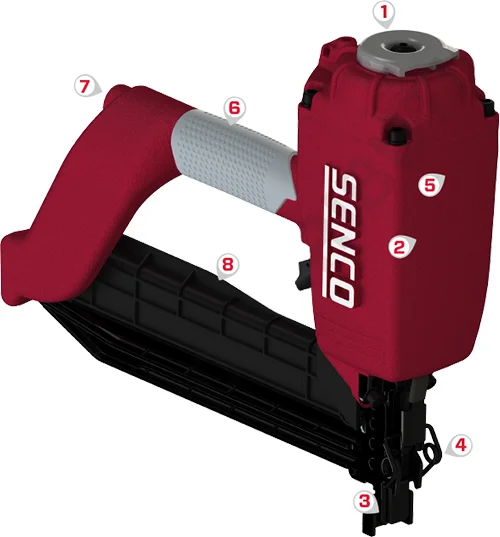

Features
1

FAST & POWERFUL

Driving up to 15 staples per second into the densest substrates

2

QUICK CLEAR LATCH

Remove jams or misfeeds without the use of a tool

3

Tool-free Depth Adjustment

Quickly change drive depth for flush or countersunk drives

4

360° ADJUSTABLE EXHAUST

Directs air away from the operator and worksurface

5

TOP LOADING MAGAZINE

Easy release feed system for efficient reloads

6

ALUMINUM HOUSING

Reduces weight and provides superior durability

7

RELOAD INDICATOR

Allows the user to quickly identify when it’s time to reload (not visible, on reverse side of tool)

8

3/8" Air Inlet

For increased airflow

Applications
  • Framing
  • Sheathing
  • Subflooring
  • Crate and box assembly
  • Pallets and pallet repair

SPECIFICATIONS

  • Item #: 750101N
  • Tool Weight: 5.9 lbs (2.7 kgs)
  • Height: 12" (305 mm)
  • Length: 14.38" (365 mm)
  • Width: 3.6" (92 mm)
  • Warranty: 5 years
  • Technology: PNEUMATIC
  • Trigger Type: Contact Actuation
  • Capacity: 160
  • Range: 1-1/4" - 2"
  • Crown: 7/16"
  • Operating Pressure: 80 - 120 PSI (5.5 - 8.3 Bar)
  • Air Consumption: 6.54 SCFM
  • Air Inlet NPT: 3/8"

FASTENERS

Compatible Fasteners
Type: 16 Ga. 7/16″ Crown Heavy Wire Staples
Gauge: 16
Range: 1-1/4" - 2"
Collation: Taped
Learn More
