660101N

SQS55XP

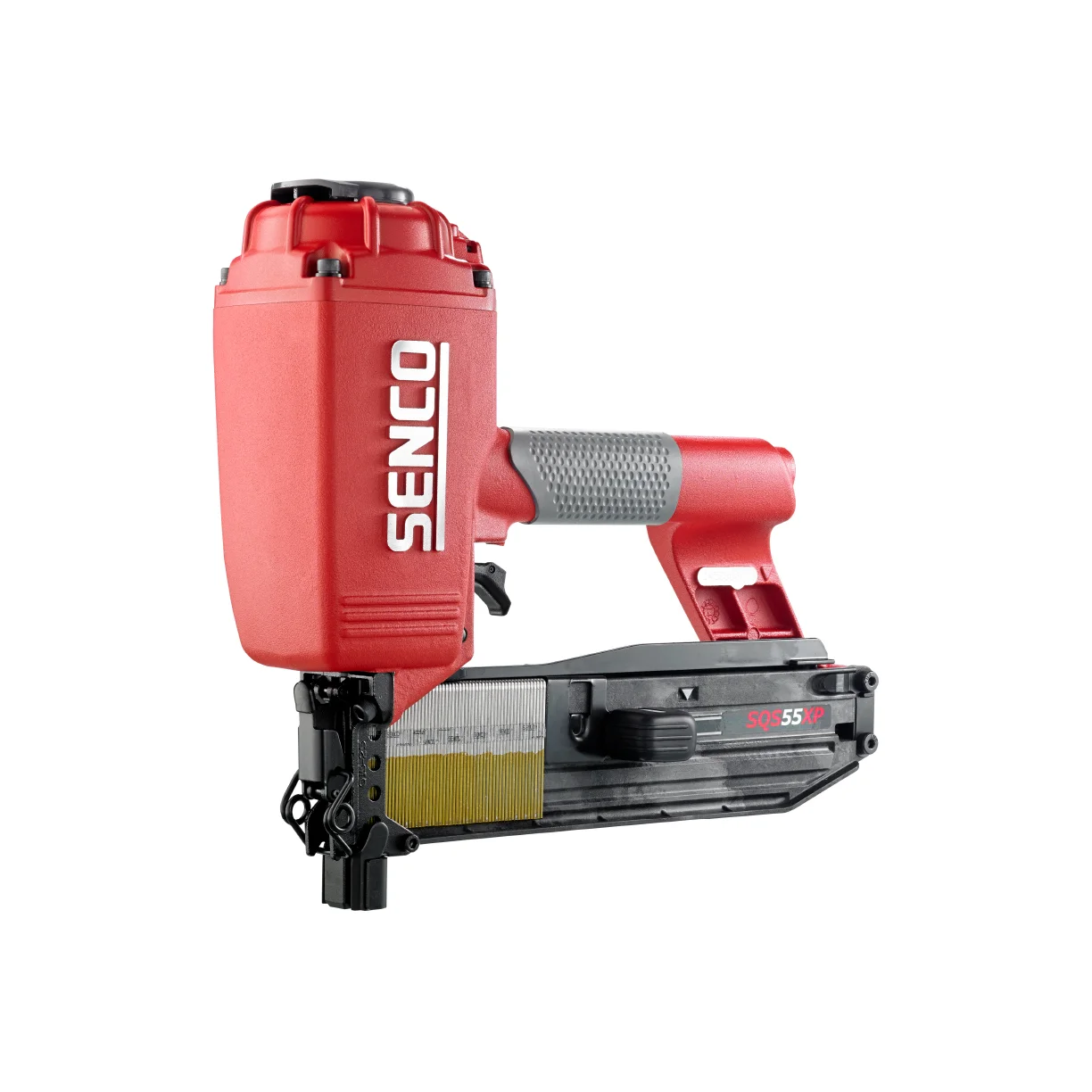

7/16" Crown, 2-1/2" Construction Stapler

SHARE Facebook Share Twitter Share Linkedin Share Print

SENCO’s SQS55XP is an incredibly fast construction stapler that is powerful enough to drive into the densest engineered lumber commonly found in today’s framing and sheathing applications. Capable of shooting up to 15 staplers per second, this staplers multi-directional stitching feature allows for easy application of ridge beams, sheathing, and...

EXPLORE COMPATIBLE FASTENERS

FEATURES
SPECS
FASTENERS
similar products

660101N

SQS55XP

7/16" Crown, 2-1/2" Construction Stapler

Manual Parts Chart

Features

Multidirectional Stitching

Capable of driving up to 15 fasteners per second

Quick Clear Latch

Remove jams or misfeeds without the use of a tool

Adjustable Depth-of-Drive

For consistent flush or countersunk drives

Aluminum Mainbody

Reduces weight and provides superior durability

Adjustable Exhaust Cap

Directs air downward away from the operator

Ergonomic Overmolded Grip

Reduces fatigue and increases control of the tool

⅜" Air Inlet

For increased air flow

Top Loading Magazine

For quick and easy reloading

Applications

Framing
Sheathing
Subflooring
Crate & Box Assembly
Pallet & Pallet Repair

SPECIFICATIONS

Item #: 660101N
Tool Weight: 5.9 lbs (2.7 kgs)
Height: 12" (305 mm)
Length: 14.38" (365 mm)
Width: 3.6" (92 mm)
Warranty: 5 years
Technology: PNEUMATIC
Trigger Type: Contact Actuation

Capacity: 130
Power Type: Pneumatic
Operating Pressure: 80 - 120 (PSI)
Operating Pressure: 5.5 - 8.3 (Bar)
Air Consumption: 6.54 (SCFM)
Air Inlet NPT: 3/8"
Range: 1-1/4" - 2-1/2"

FASTENERS

Compatible Fasteners

Type: 15 Ga. 7/16" Crown Heavy Wire Staples
Gauge: 15
Range: 1-1/4" - 2-1/2"
Collation: Taped

Item Code	Length	Crown	Point	Finish	Coating	Collation	Box Count
Q15BAB	1-1/4	7/16	Chisel	Galvanized	Sencote	Taped	5000
Q17BAB	1-1/2	7/16	Chisel	Galvanized	Sencote	Taped	5000
Q17BRB	1-1/2	7/16	Chisel	Bright Basic	Sencote	Taped	5000
Q19BAB	1-3/4	7/16	Chisel	Galvanized	Sencote	Taped	5000
Q19BRB	1-3/4	7/16	Chisel	Bright Basic	Sencote	Taped	5000
Q21BAB	2	7/16	Chisel	Galvanized	Sencote	Taped	5000
Q21BRB	2	7/16	Chisel	Bright Basic	Sencote	Taped	5000
Q23BRB	2-1/4	7/16	Chisel	Bright Basic	Sencote	Taped	5000
Q25BAB	2-1/2	7/16	Chisel	Galvanized	Sencote	Taped	5000
Q25BGBN	2-1/2	7/16	Chisel	304 Stainless Steel	Sencote	Taped	1000
Q25BRB	2-1/2	7/16	Chisel	Bright Basic	Sencote	Taped	5000
