JN91H1

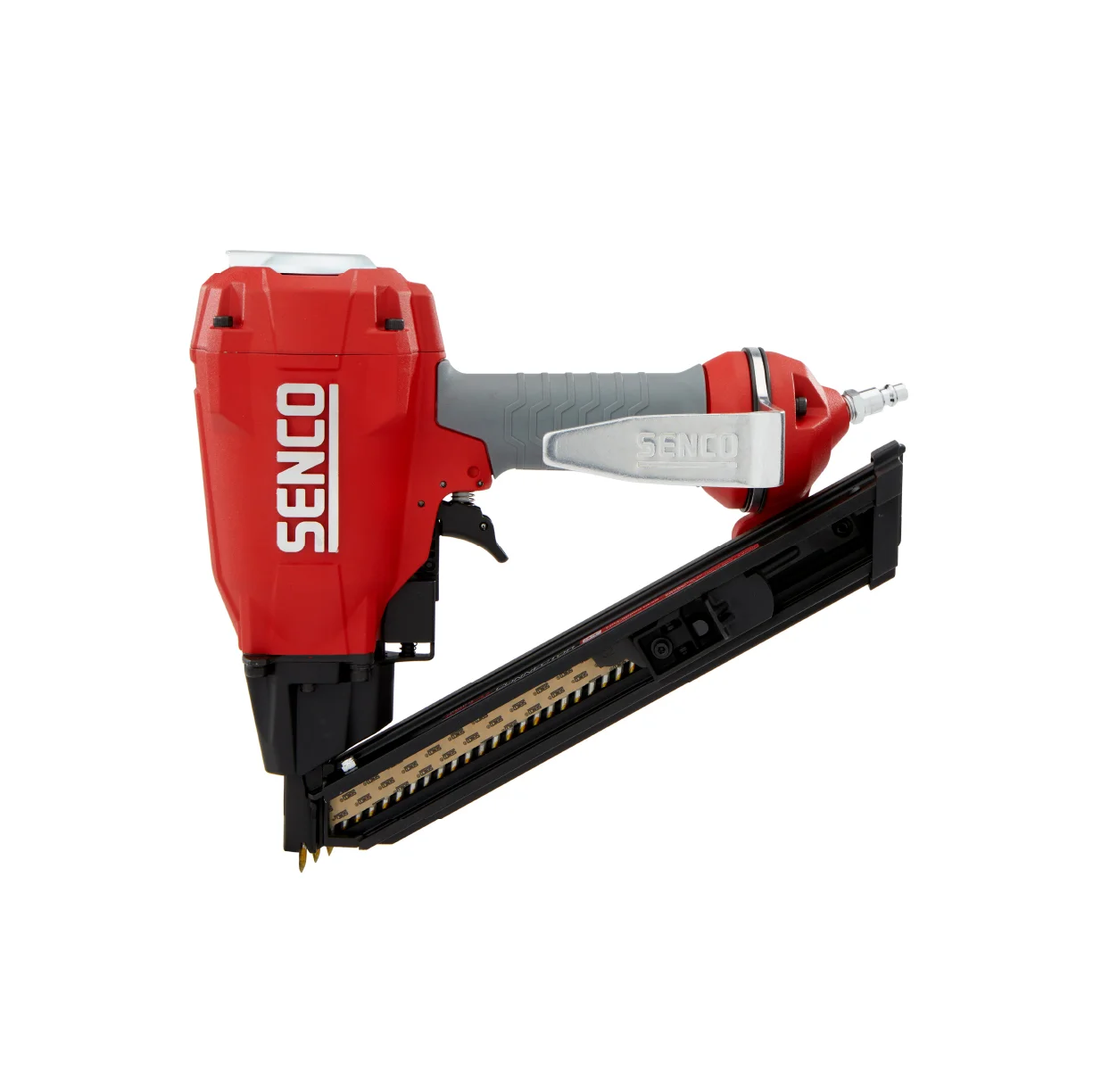

1-1/2” METAL CONNECTOR NAILER

34°

SHARE

  • Best-in-class power, designed to consistently drive through engineered lumber
  • Single strip, allows for increased maneuverability in tight spaces
  • Innovative nosepiece design
  • Dry fire lockout
  • Rugged, rotatable belt hook
  • Overmold grip increases control of the tool
The JN91H1 is specifically designed for fastening pre-punched metal connection hardware to dense engineered lumber, like LVL. This small, compact metal connector nailer fits easily between rafters and joists, driving 1-1/2” nails through joist hangers, seismic and hurricane ties, and rafter straps. The innovative nosepiece design leads with the point...
read more
EXPLORE COMPATIBLE FASTENERS
JN91H1

1-1/2” METAL CONNECTOR NAILER

Manual Parts Chart
Features
1

Lightweight and well-balanced

Compact design, maneuverable in hard to reach areas

2

Powerful

Drives through structural hardware into engineered lumber, like LVL or OSB

3

Nosepiece design

Provides accurate nail placement into metal connector holes

4

Dry fire lockout

Reduces tool wear and indicates the need to reload fasteners

5

Rugged rafter hook

Rotatable, aluminum design keeps tool secure when not in use

6

Overmold grip

Increases control of the tool

Applications
  • Joist hangers
  • Anchors
  • Straps
  • Metal framing

SPECIFICATIONS

  • Item #: JN91H1
  • Tool Weight: 5.48 lbs (2.48 kgs)
  • Height: 12.5" (317 mm)
  • Length: 11.13" (282 mm)
  • Width: 4.38" (111 mm)
  • Warranty: 5 years
  • Technology: PNEUMATIC
  • Trigger Type: Sequential Actuation
  • Capacity: 30
  • Power Type: Pneumatic
  • Operating Pressure: 70-120 (PSI)
  • Operating Pressure: 4.8-8.3 (Bar)
  • Air Consumption: 4.4 (SCFM)
  • Air Inlet NPT: 1/4"
  • Diameter: 0.131" - 0.148"
  • Includes: Wrenches, Tool Oil, Safety Glasses, Air Plug

FASTENERS

Compatible Fastners
Type: 34° Metal Connector Paper Tape Non-Heat Treated Nails
Degree: 34°
Range: 1-1/2
Collation: 34° Angled Strip
Learn More
Disassembled Pinner Side View

HOW DO I REPLACE THE SEALS IN MY NAILER?

O-rings are simple, circular rubber seals that play an important role in the operation of pneumatic nail guns. They are used to prevent air from leaking between the moving parts of the piston driver assembly, exhaust, and the trigger valve. Additionally, nailers also have several plastic seals that serve the same purpose.
