JN91H2

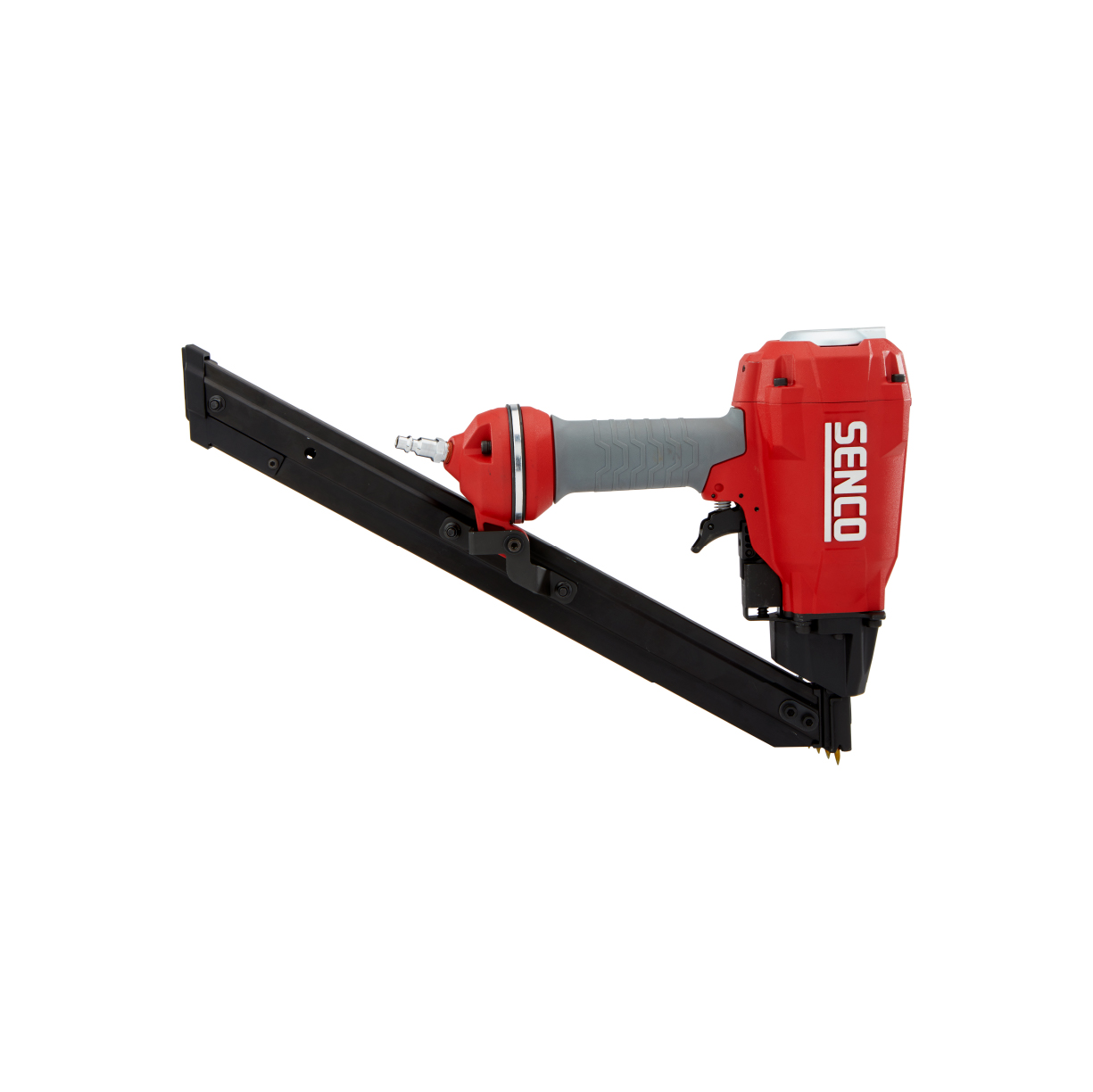

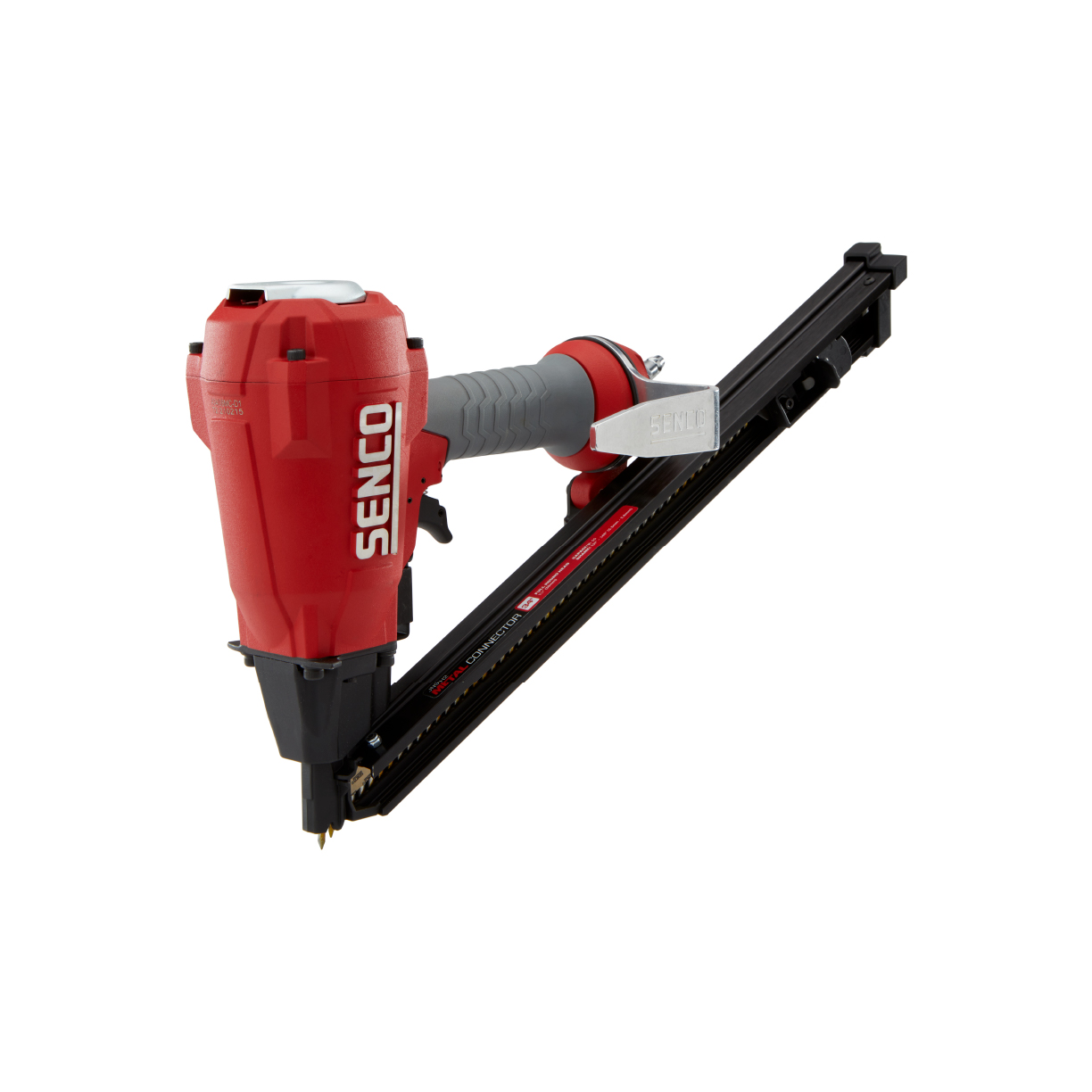

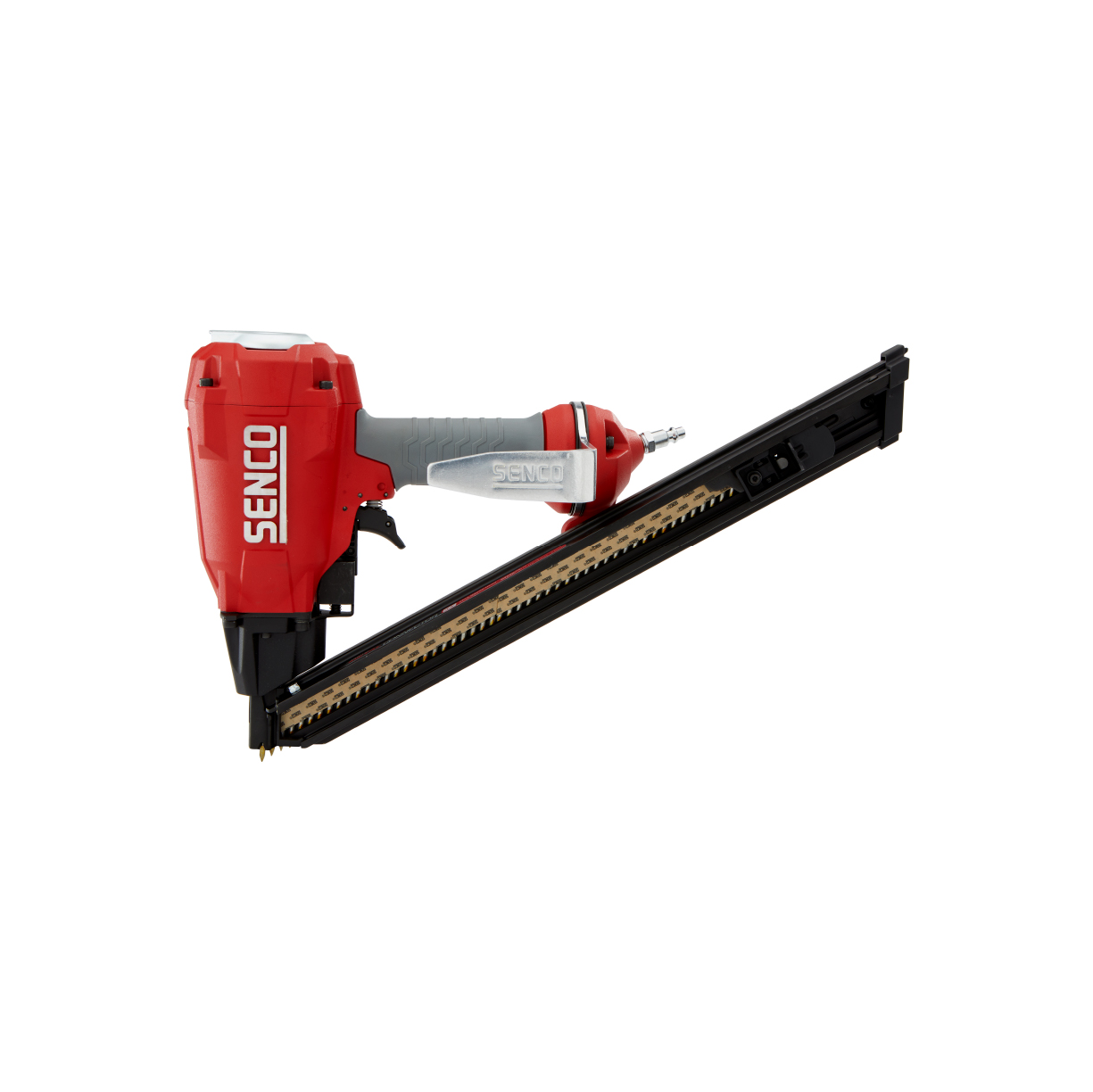

1-1/2” METAL CONNECTOR NAILER EXTENDED MAGAZINE

34°

SHARE

  • Best-in-class power, designed to consistently drive through engineered lumber
  • Double length magazine, provides less downtime and higher production rates
  • Innovative nosepiece design
  • Dry fire lockout
  • Rugged, rotatable belt hook
  • Overmold grip increases control of the tool
The JN91H2 is specifically designed for fastening pre-punched metal connection hardware to dense engineered lumber, like LVL. The tool comes fitted with an extended magazine to hold two full racks of 1-1/2” nails for less downtime and higher production rates. The nosepiece design leads with the point of the nail,...
read more
EXPLORE COMPATIBLE FASTENERS
JN91H2

1-1/2” METAL CONNECTOR NAILER EXTENDED MAGAZINE

Manual Parts Chart
Features
1

Lightweight and well-balanced

Compact design, maneuverable in hard to reach areas

2

Powerful

Drives through structural hardware into engineered lumber, like LVL or OSB

3

Nosepiece design

Provides accurate nail placement into metal connector holes

4

Dry fire lockout

Reduces tool wear and indicates the need to reload fasteners

5

Rugged rafter hook

Rotatable, aluminum design keeps tool secure when not in use

6

Overmold grip

Increases control of the tool

7

Extended magazine

Capable of holding two racks of nails

Applications
  • Joist hangers
  • Anchors
  • Straps
  • Metal framing

SPECIFICATIONS

  • Item #: JN91H2
  • Tool Weight: 5.8 lbs (2.63 kgs)
  • Height: 12.5" (317 mm)
  • Length: 17.86" (453 mm)
  • Width: 4.88" (123 mm)
  • Warranty: 5 years
  • Technology: PNEUMATIC
  • Trigger Type: Sequential Actuation
  • Capacity: 55
  • Power Type: Pneumatic
  • Operating Pressure: 70-120 (PSI)
  • Operating Pressure: 4.8 - 8.3 (Bar)
  • Air Consumption: 4.4 (SCFM)
  • Air Inlet NPT: 1/4"
  • Diameter: 0.131" - 0.148"
  • Includes: Wrenches, Tool Oil, Safety Glasses, Air Plug

FASTENERS

Compatible Fastners
Type: 34° Metal Connector Paper Tape Non-Heat Treated Nails
Degree: 34°
Range: 1-1/2
Collation: 34° Angled Strip
Learn More
Disassembled Pinner Side View

HOW DO I REPLACE THE SEALS IN MY NAILER?

O-rings are simple, circular rubber seals that play an important role in the operation of pneumatic nail guns. They are used to prevent air from leaking between the moving parts of the piston driver assembly, exhaust, and the trigger valve. Additionally, nailers also have several plastic seals that serve the same purpose.

read more
