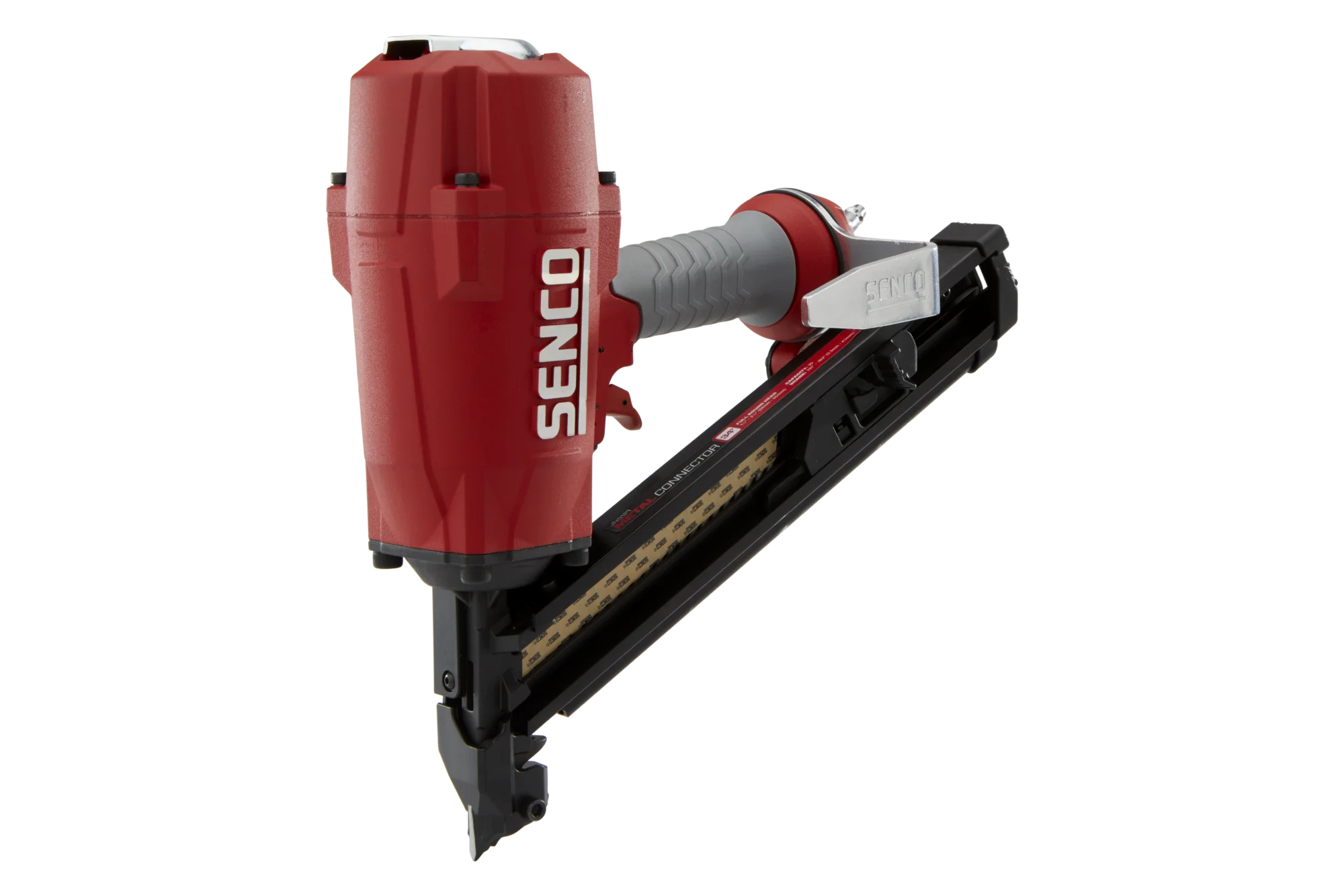

JN91P1

2-1/2” METAL CONNECTOR NAILER

34°

SHARE

  • Best-in-class power, designed to consistently drive through engineered lumber
  • Single strip, allows for increased maneuverability in tight spaces
  • Innovative nosepiece design
  • Tool-free depth of drive
  • Dry fire lockout
  • Rugged, rotatable rafter hook
The JN91P1 delivers the power to drive 1-1/2” to 2-1/2” nails into the toughest substrates, including engineered lumber. This small and compact metal connector nailer fits easily between rafters and joists and the nosepiece design leads with a metal point for accurate nail placement into prepunched holes.
EXPLORE COMPATIBLE FASTENERS
JN91P1

2-1/2” METAL CONNECTOR NAILER

Manual Parts Chart
Features
1

Lightweight and well-balanced

Compact design, maneuverable in hard to reach areas

2

Powerful

Drives through structural hardware into engineered lumber, like LVL or OSB

3

Nosepiece Design

Provides accurate nail placement into metal connector holes

4

Tool-free Depth of Drive

Quickly and easily set drive depth

5

Dry Fire Lockout

Reduces tool wear and indicates the need to reload fasteners

6

Rugged Rafter Hook

Rotatable, aluminum design keeps tool secure when not in use

7

Overmold Grip

Increases control of the tool

Applications
  • Joist hangers
  • Anchors
  • Straps
  • Metal framing

SPECIFICATIONS

  • Item #: JN91P1
  • Tool Weight: 7.53 lbs (3.41 kgs)
  • Height: 14.38" (365 mm)
  • Length: 14" (355 mm)
  • Width: 5.25" (133 mm)
  • Warranty: 5 years
  • Technology: PNEUMATIC
  • Trigger Type: Sequential Actuation
  • Capacity: 35
  • Power Type: Pneumatic
  • Operating Pressure: 70 - 120 (PSI)
  • Operating Pressure: 4.8 - 8.3 (Bar)
  • Air Consumption: 6.4 (SCFM)
  • Air Inlet NPT: 0.25"
  • Range: 1-1/2" - 2-1/2"
  • Diameter: 0.131" - 0.162"
  • Includes: Wrenches, Tool Oil, Safety Glasses, Air Plug

FASTENERS

Compatible Fastners
Type: 34° Metal Connector Paper Tape Non-Heat Treated Nails
Degree: 34°
Range: 1-1/2" - 2-1/2"
Collation: 34° Angled Strip
Learn More
Disassembled Pinner Side View

HOW DO I REPLACE THE SEALS IN MY NAILER?

O-rings are simple, circular rubber seals that play an important role in the operation of pneumatic nail guns. They are used to prevent air from leaking between the moving parts of the piston driver assembly, exhaust, and the trigger valve. Additionally, nailers also have several plastic seals that serve the same purpose.

read more
