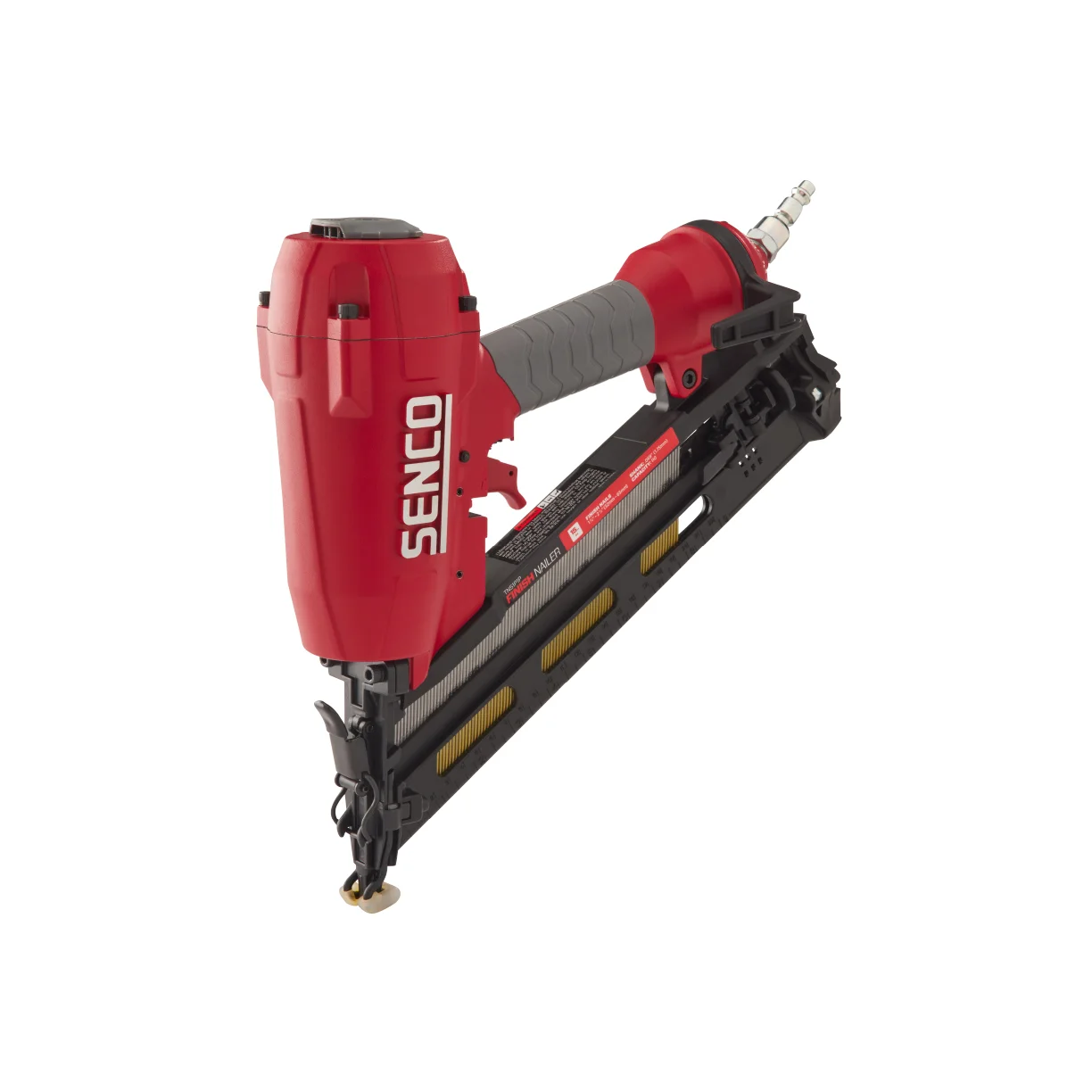

TN51P1P_35°_High_Upright_w_fasteners@72ppi-100
TN51P1P_180°_w_fasteners@72ppi-100
TN51P1P_0°_upright_w_fasteners@72ppi-100
TN51P1P_35°_High_Upright_w_fasteners@72ppi-100
TN51P1P_180°_w_fasteners@72ppi-100
TN51P1P

2-1/2” 15 GAUGE FINISH NAILER

Degree/Gauge Icon

SHARE Facebook Share Twitter Share Linkedin Share Print

  • Oil-less design eliminates the need for routine lubrication
  • Dry fire lockout reduces tool wear and indicates when to reload
  • Selectable trigger to switch between contact or sequential firing modes
  • Quick clear latch to easily clear jams or misfeeds
  • Tool-free depth adjustment for consistent flush or countersunk drives
Designed for the professional finish carpenter, the TN51P1P delivers the holding power necessary when installing large interior and exterior trim such as casing, paneling, cabinetry, and a wide variety of other finish applications. The tool is designed with convenient features such as SENCO’s quick clear latch to quickly clear jams...
read more
EXPLORE COMPATIBLE FASTENERS
TN51P1P

2-1/2” 15 GAUGE FINISH NAILER

Manual Parts Chart
Features
1

OIL-LESS DESIGN

Routine lubrication is not required. Saving you time with daily maintenance

2

DRY FIRE LOCKOUT

Reduces tool wear and indicates the need to reload fasteners

3

SELECTABLE TRIGGER

Makes it easy to switch between contact or sequential firing modes

4

QUICK CLEAR LATCH

Remove jams or misfeeds without the use of a tool

5

TOOL-FREE DEPTH ADJUSTMENT

For consistent flush or countersunk drives

6

360° ADJUSTABLE EXHAUST

Directs air away from the operator and worksurface

7

ROTATABLE BELT HOOK

Provides quick right/left hand access when needed

8

ERGONOMIC OVERMOLDED GRIP

Reduces fatigue and increases control of the tool

9

NO-MAR PAD

Protects the worksurface from being scratched or damaged. Extra no-mar pad included

10

SWIVEL PLUG

For added maneuverability

11

ALUMINUM MAINBODY

Durable and lightweight

Applications
  • Finish and trim
  • Woodworking
  • Baseboards
  • Casing
  • Door and window jambs
  • Moldings
  • Cabinets

SPECIFICATIONS

  • Item #: TN51P1P
  • Tool Weight: 4.5 lbs (2.0 kgs)
  • Height: 12.25" (311 mm)
  • Length: 13" (330 mm)
  • Width: 3.5" (89 mm)
  • Warranty: 5 years
  • Technology: PNEUMATIC
  • Trigger Type: Selectable Actuation
  • Power Source: Pneumatic
  • Capacity: 110
  • Power Type: Pneumatic
  • Operating Pressure: 70-120 (PSI)
  • Operating Pressure: 4.8-8.3 (Bar)
  • Air Consumption: 3.2 (SCFM)
  • Air Inlet NPT: 1/4"
  • Range: 1-1/4" - 2-1/2"
  • Includes: Carrying Case, 1/4" Fitting

FASTENERS

Compatible Fasteners
Type: 15 Ga. 34° Angled Strip Finish Nails
Degree: 34°
Range: 1-1/4" - 2-1/2"
Collation: 34° Angled Strip
