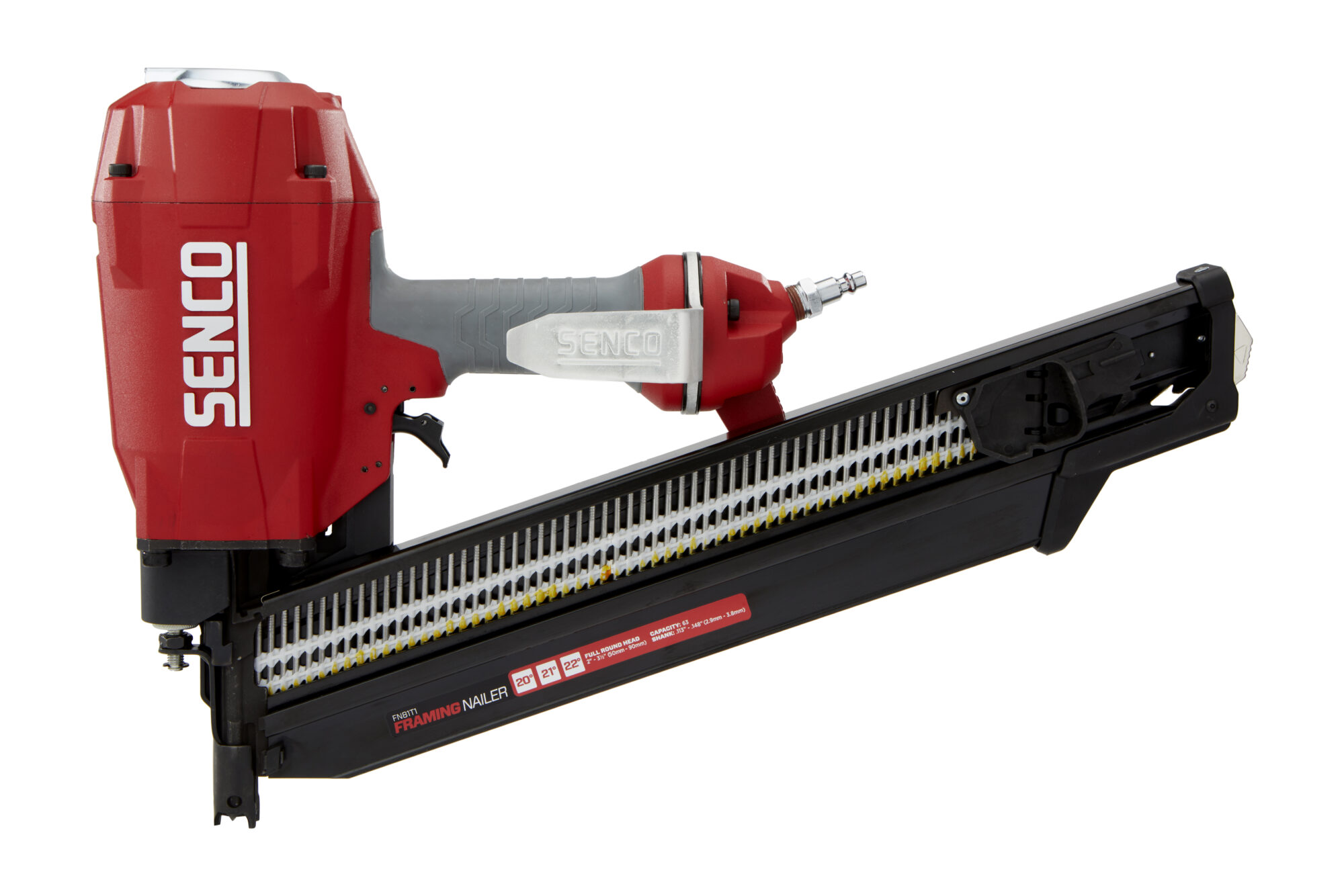

FN81T1

3-1/2” FULL ROUND HEAD FRAMING NAILER

20°21°22°

SHARE

  • Best in class tool power & durability
  • Well-balanced ergonomic design
  • In-line magazine for optimal line of sight
  • Aggressive toenail safety
  • Tool-free depth of drive
  • Engineered and Assembled in Cincinnati, Ohio
The FN81T1 delivers the power and durability demanded by professional contractors for all-day performance on the toughest jobsites. It drives a wide range of plastic collated nails from .113” to .148” in diameter, and 2”- 3-½” in length. Upgraded features include, an ergonomic design, an in-line magazine for clear line...
read more
EXPLORE COMPATIBLE FASTENERS
FN81T1

3-1/2” FULL ROUND HEAD FRAMING NAILER

Manual Parts Chart
Features
1

ERGONOMIC DESIGN

Superb balance for all-day use

2

POWERFUL

Consistently drives a full range of nails

3

IN-LINE MAGAZINE

Provides clear line of sight for right and left handed operators, improves balance and reduces fatigue

4

AGGRESSIVE TOENAIL SAFETY

Provides extra grip for toenail applications, no-mar tip included

5

TOOL-FREE DEPTH OF DRIVE

Quickly and easily set the drive depth

6

OVERMOLD GRIP

Increases control of the tool, accelerating productivity

7

RUGGED RAFTER HOOK

Rotatable, aluminum design keeps the tool secure when not in use

8

DRY FIRE LOCKOUT

Reduces tool wear and indicates the need to reload fasteners

9

REAR TWO-STEP LOADING

Allows for rapid reloads for both right and left handed operators

Applications
  • Framing
  • Truss Building
  • Subflooring
  • Sheathing
  • Decking
  • Siding
  • Fencing
  • Pallet and Crate Assembly

SPECIFICATIONS

  • Item #: FN81T1
  • Tool Weight: 8.75 lbs (3.9 kgs)
  • Height: 14.13" (358 mm)
  • Length: 20.75" (527 mm)
  • Width: 4.88" (123 mm)
  • Warranty: 5 years
  • Technology: PNEUMATIC
  • Trigger Type: Sequential Actuation
  • Capacity: 63
  • Power Type: Pneumatic
  • Operating Pressure: 70 - 120 (PSI)
  • Operating Pressure: 4.8 - 8.3 (Bar)
  • Air Consumption: 6.7 (SCFM)
  • Air Inlet NPT: 3/8"
  • Range: 2" - 3-1/2"
  • Diameter: 0.113" - 0.148"
  • Includes: No-Mar Pad, Air Plug and Belt Hook

FASTENERS

Compatible Fastners
Type: 20° Angled Strip Full Round Head Ring Shank Plastic Collated Nails
Degree: 20°
Range: 2" - 3"
Collation: 20° Angled Strip
Type: 20° Angled Strip Full Round Head Smooth Shank Plastic Collated Nails
Degree: 20°
Range: 2-3/8" - 3-1/2"
Collation: 20° Angled Strip
Learn More
Disassembled Pinner Side View

HOW DO I REPLACE THE SEALS IN MY NAILER?

O-rings are simple, circular rubber seals that play an important role in the operation of pneumatic nail guns. They are used to prevent air from leaking between the moving parts of the piston driver assembly, exhaust, and the trigger valve. Additionally, nailers also have several plastic seals that serve the same purpose.

read more
