Convert a standard screwdriver into an auto-feed screw system in seconds. For Makita screwdrivers (FS2200, FS2500, FS4200, FS6200, XSF03, XSF04, XSF05)
DS230-M1

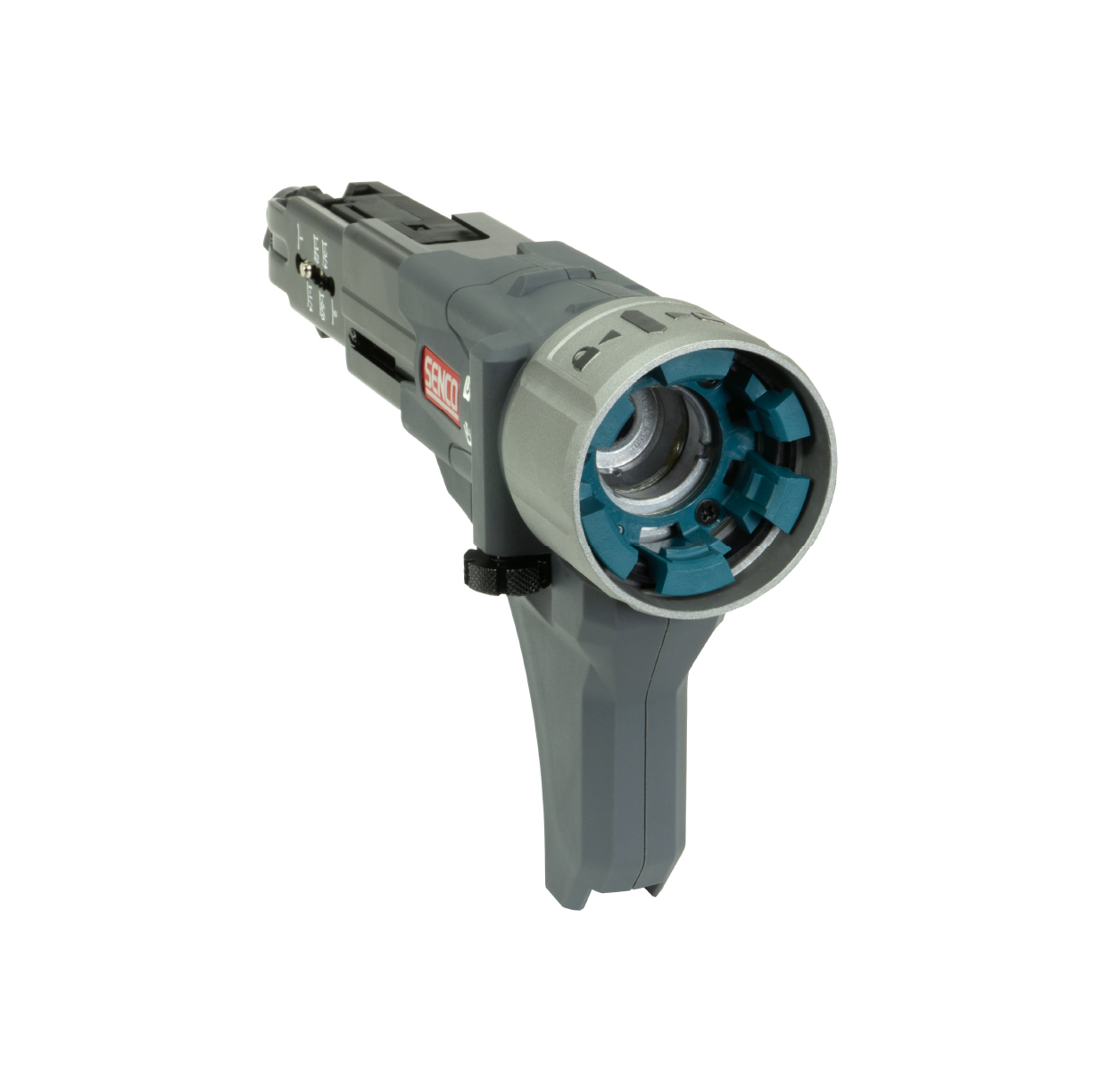

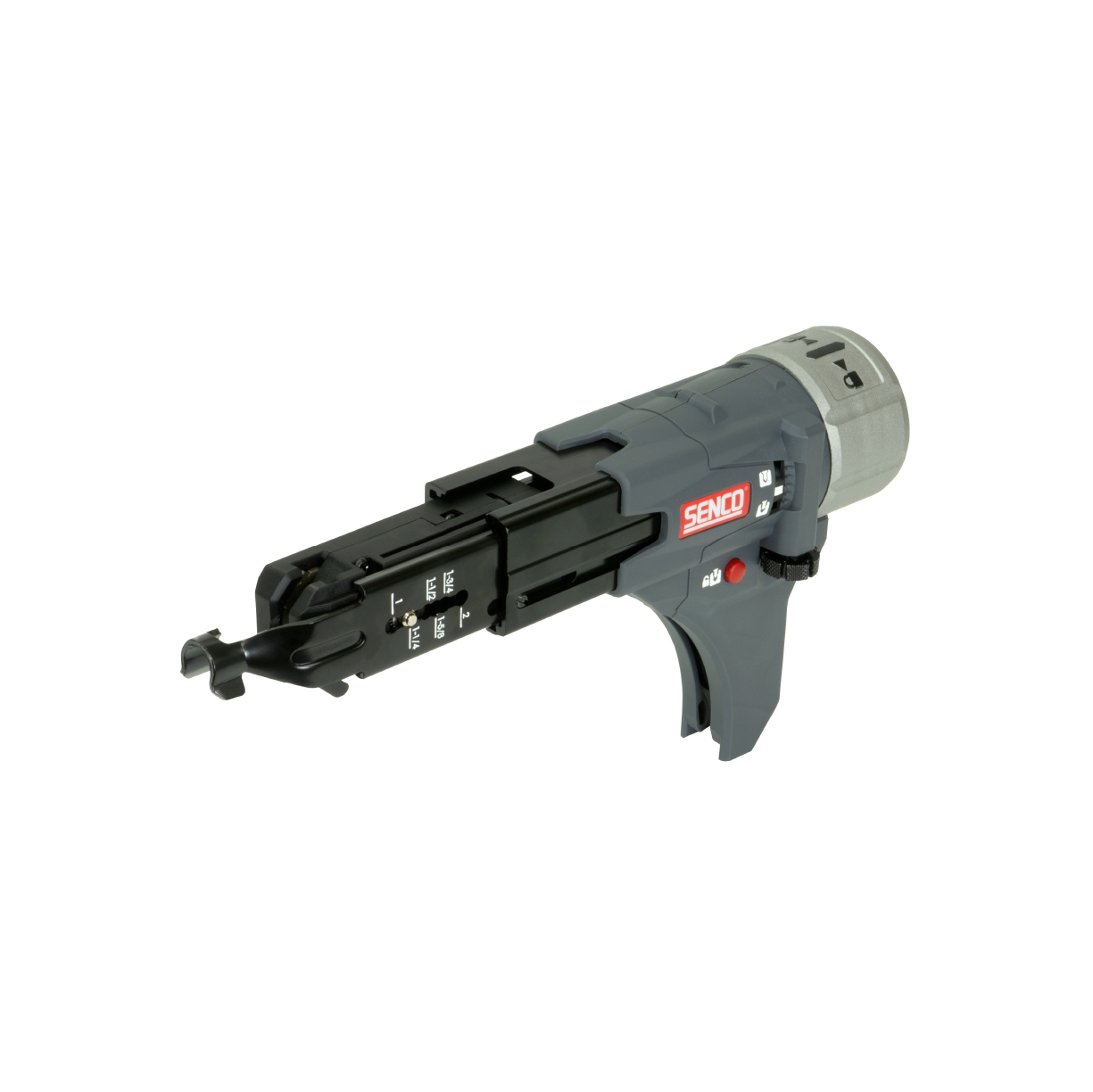

2" Auto-Feed Screwdriver Attachment
- Patented corner-fit feed system
- Feed on return functionality to improve speed and reliability of drives
- Universal nosepiece for drywall and wood applications
- Easily remove attachment to access bit
- Tool-free screw length adjustment
Convert a standard screwdriver into an auto-feed screw system in seconds. For Makita screwdrivers (FS2200, FS2500, FS4200, FS6200, XSF03, XSF04, XSF05)
Features
1
CORNER-FIT FEED SYSTEM
Improved line of sight and better corner access
2
FEED ON RETURN
Screws are in place before you drive for faster and more consistent performance
3
REMOVABLE FEED SYSTEM
Detachable feed system for easier reversing
4
1”-2” TOOL FREE ADJUSTABLE NOSEPIECE
Single nosepiece for wood and drywall applications, with easy-to-read length markings
5
ADJUSTABLE DEPTH-OF-DRIVE WITH DEPTH LOCK
For consistent flush drive or countersink (knob is on reverse side of attachment, not shown)
6
METAL FRAME
For unmatched durability
7
SCREW GUIDE
Prevents screw binding ensuring consistent feeding
Applications
- Ideal for drywall (into wood or steel studs)
- Metal Framing
- Sheathing
- Cement Board
SPECIFICATIONS
- Item #: 9Z0021N
- Tool Weight: 1.30 lbs (0.59 kgs)
- Height: 5.50" (140 mm)
- Length: 10.3125" (253 mm)
- Width: 2.50" (63 mm)
- Warranty: 5 years
- Technology: DURASPIN
- Power Type: Attachment
- Screw Diameteres: #6 - #12
- Range: 1" - 2"
- Includes: (2) Drive Bits EA0300, EA0301
Bits
Compatible Bits
FASTENERS
Compatible Fasteners
Application: DrywalltoLightSteelPBSHGP
Diameter: #6
Range: 1-1/4" - 1-5/8"
Thread: Double
Finish: Gray Phosphate
Quantity: 1000
Drive Type: Phillips
Point: Sharp
Head: Bugle
Diameter: #6
Range: 1-1/4" - 1-5/8"
Thread: Double
Finish: Gray Phosphate
Quantity: 1000
Drive Type: Phillips
Point: Sharp
Head: Bugle
Application: DrywalltoWoodPBSHEX
Diameter: #6
Range: 1-5/8
Thread: Coarse
Finish: Exterior
Quantity: 1000
Drive Type: Phillips
Point: Sharp
Head: Bugle
Diameter: #6
Range: 1-5/8
Thread: Coarse
Finish: Exterior
Quantity: 1000
Drive Type: Phillips
Point: Sharp
Head: Bugle
Application: DrywalltoWoodPBSHGP
Diameter: #6
Range: 1-1/4" - 2"
Thread: Coarse
Finish: Gray Phosphate
Quantity: 1000
Drive Type: Phillips
Point: Sharp
Head: Bugle
Diameter: #6
Range: 1-1/4" - 2"
Thread: Coarse
Finish: Gray Phosphate
Quantity: 1000
Drive Type: Phillips
Point: Sharp
Head: Bugle
Application: WoodtoLightSteelSFSHCZ
Diameter: #8
Range: 1-1/2
Thread: Double
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Sharp
Head: Flat
Diameter: #8
Range: 1-1/2
Thread: Double
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Sharp
Head: Flat
Application: CementBoardSWNDREX
Diameter: #8
Range: 1-1/2
Thread: Fine
Finish: Exterior
Quantity: 4000
Drive Type: Square
Point: Drill
Head: Wafer + Nibs
Diameter: #8
Range: 1-1/2
Thread: Fine
Finish: Exterior
Quantity: 4000
Drive Type: Square
Point: Drill
Head: Wafer + Nibs
Application: UnderlaymentPTNSHGP
Diameter: #7
Range: 1
Thread: High Low
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Phillips
Point: Sharp
Head: Trim Head + Nibs
Diameter: #7
Range: 1
Thread: High Low
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Phillips
Point: Sharp
Head: Trim Head + Nibs
Application: UnderlaymentSTNSHGP
Diameter: #7
Range: 1-1/4
Thread: High Low
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Square
Point: Sharp
Head: Trim Head + Nibs
Diameter: #7
Range: 1-1/4
Thread: High Low
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Square
Point: Sharp
Head: Trim Head + Nibs
