10D0001N

DS245-AC

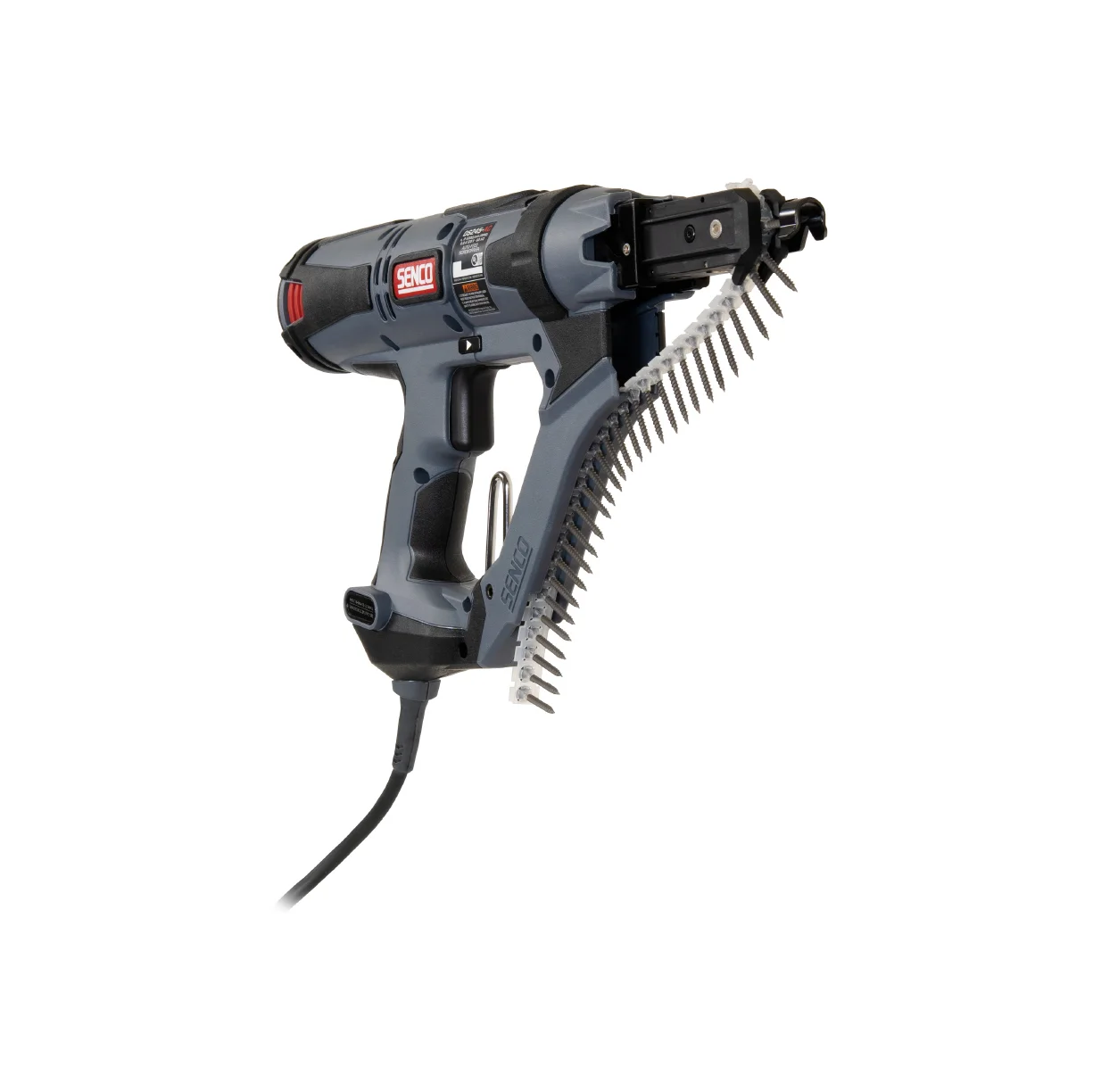

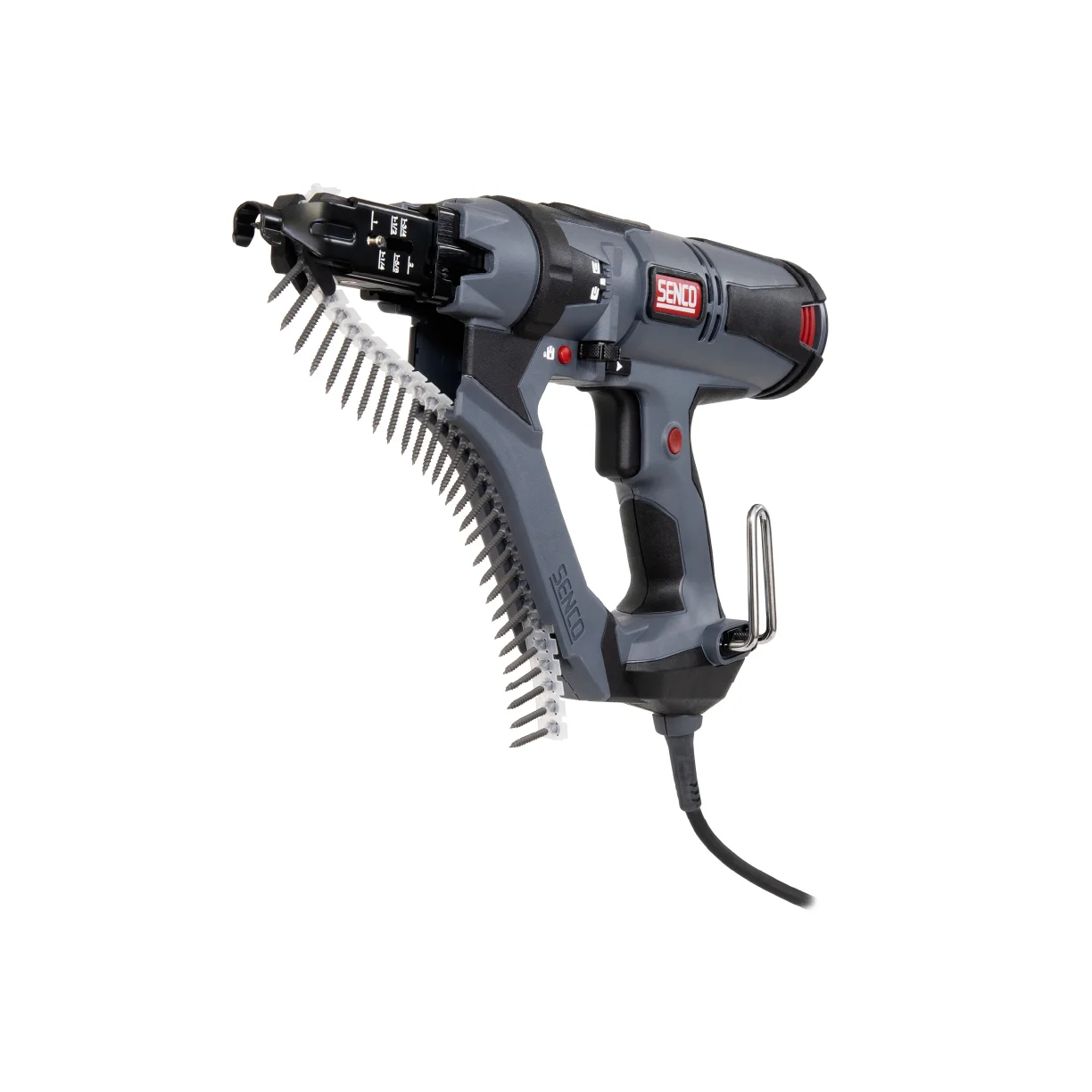

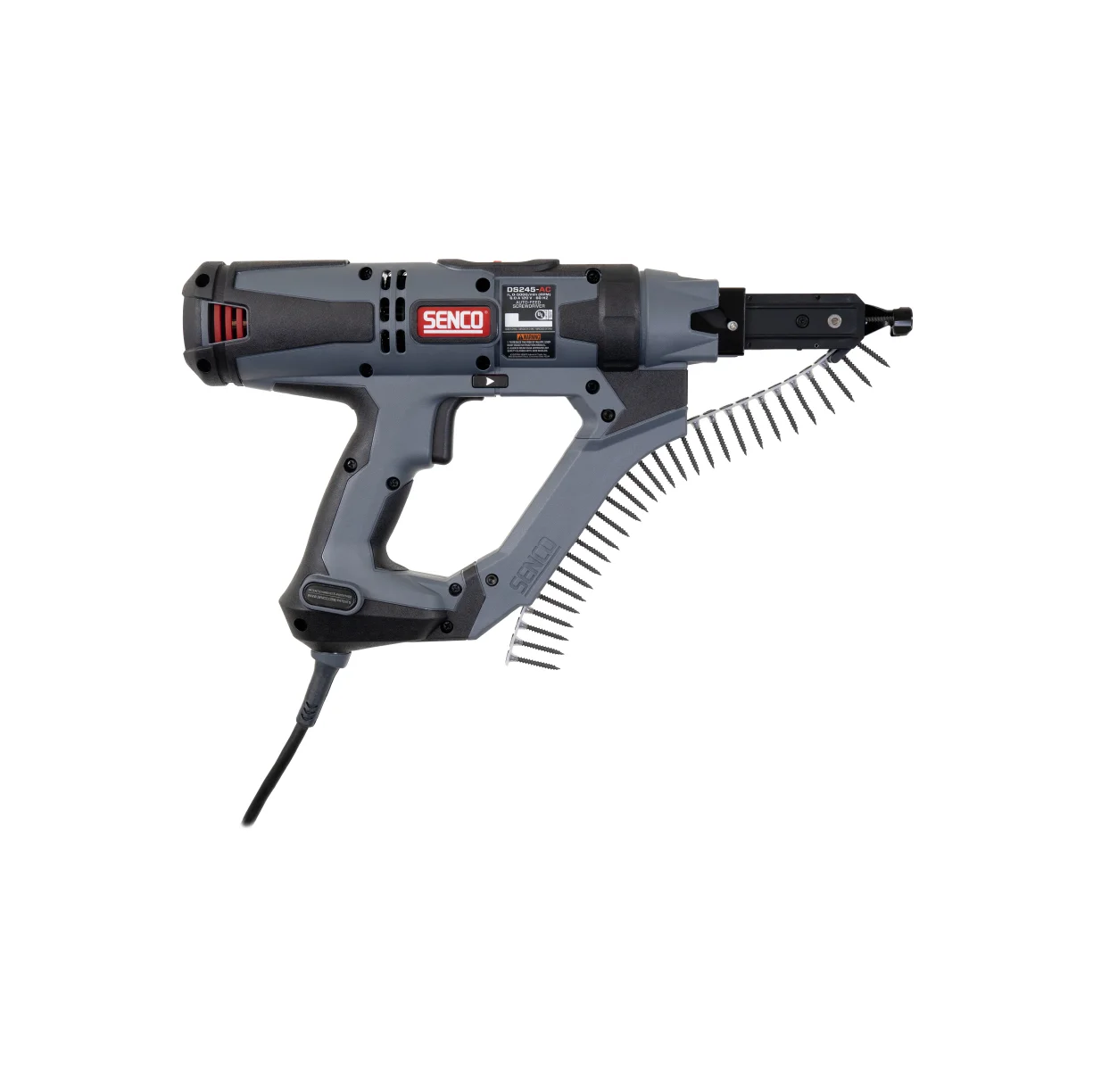

2" 120V 5000 RPM Auto-Feed Screwdriver

Patented corner-fit feed system
Precise depth of drive adjustment with depth lock
Quick slide button bit change
Tool-free screw length adjustment
Variable speed trigger with lock and reverse

Blazing fast speed in a compact, well-balanced package provides the ultimate in performance and durability. The DS245-AC is equipped with a variable speed 5000 rpm motor designed for high-volume applications including drywall (into wood or light gauge steel studs), sheathing, cement board, and underlayment applications. SENCO’s patented corner-fit feed system...

EXPLORE COMPATIBLE FASTENERS

FEATURES
SPECS
Bits
FASTENERS
similar products

10D0001N

DS245-AC

2" 120V 5000 RPM Auto-Feed Screwdriver

Manual Parts Chart

Features

CORNER-FIT FEED SYSTEM

For better line of sight, easier operation and excellent corner access

FEED ON RETURN

Screws are in place before you drive for faster and more consistent performance

STRIP FOLDBACK PROTECTION

Prevents empty strip from jamming the tool

HIGH SPEED MOTOR

Effectively drives screws into drywall and similar materials

ADJUSTABLE DEPTH-OF-DRIVE WITH DEPTH LOCK

For consistent flush drive or countersink (not visible, on other side of tool)

QUICK SLIDE BIT RELEASE

Easily change or replace bits

TOOL FREE ADJUSTABLE NOSEPIECE

Single nosepiece for wood and drywall applications, with easy-to-read length markings

REVERSE SWITCH

Quickly switch between forward and reverse

VARIABLE SPEED TRIGGER

Vary RPMs for self-tapping screws into steel

SCREW GUIDE

Prevents screw binding for consistent feeds

BELT HOOK

Left or right side mounting option

POWER CORD

Heavy duty 10 ft. power cord

Applications

High speed applications inlcuding drywall (into wood or light gauge steel studs)
Subfloor
Sheathing
Cement Board
Underlayment

SPECIFICATIONS

Item #: 10D0001N
Tool Weight: 5.54 lbs (2.51 kgs)
Height: 9.65" (245.11 mm)
Length: 16.34" (415.036 mm)
Width: 3.23" (82.042 mm)
Warranty: 5 years
Technology: DURASPIN

Trigger Type: Variable with Lock
Power Type: Corded
Screw Diameteres: #6 - #10
RPM: 0 - 5000
Range: 1" - 2"
Includes: (2) Drive Bits EA0400(phillips), EA0401(square), Storage Bag

Bits

Compatible Bits

EA0297Phillips Bit

EA0298Square Bit

EA0299Rex Bit

FASTENERS

Compatible Fastners

Application: DrywalltoWoodPBSHEX
Diameter: #6
Range: 1-5/8
Thread: Coarse
Finish: Exterior
Quantity: 1000
Drive Type: Phillips
Point: Sharp
Head: Bugle

Application: DrywalltoWoodPBSHGP
Diameter: #6
Range: 1-1/4" - 2"
Thread: Coarse
Finish: Gray Phosphate
Quantity: 1000
Drive Type: Phillips
Point: Sharp
Head: Bugle

Application: DrywalltoLightSteelPBSHGP
Diameter: #6
Range: 1-1/4" - 1-5/8"
Thread: Double
Finish: Gray Phosphate
Quantity: 1000
Drive Type: Phillips
Point: Sharp
Head: Bugle

Application: UnderlaymentPTNSHGP
Diameter: #7
Range: 1
Thread: High Low
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Phillips
Point: Sharp
Head: Trim Head + Nibs

Application: UnderlaymentSTNSHGP
Diameter: #7
Range: 1-1/4
Thread: High Low
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Square
Point: Sharp
Head: Trim Head + Nibs

Application: WoodtoWoodSFCTCZ
Diameter: #8
Range: 1-1/4
Thread: Coarse
Finish: Clear Zinc
Quantity: 4000
Drive Type: Square
Point: Cut (Type 17)
Head: Flat

Application: WoodtoWoodSFCTYZ
Diameter: #8
Range: 1-3/4
Thread: Coarse
Finish: Yellow Zinc
Quantity: 4000
Drive Type: Square
Point: Cut (Type 17)
Head: Flat

Application: WoodtoWoodSFSHYZ
Diameter: #8
Range: 1-1/2" - 2"
Thread: Coarse
Finish: Yellow Zinc
Quantity: 1000
Drive Type: Square
Point: Sharp
Head: Flat

Application: WoodtoWoodSTNSHYZ
Diameter: #8
Range: 2
Thread: High Low
Finish: Yellow Zinc
Quantity: 4000
Drive Type: Square
Point: Sharp
Head: Trim Head + Nibs

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
06A162W	1-5/8	#6	Coarse	Phillips	Sharp	Bugle	Exterior	1000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
06A125P	1-1/4	#6	Coarse	Phillips	Sharp	Bugle	Gray Phosphate	1000
06A125PB	1-1/4	#6	Coarse	Phillips	Sharp	Bugle	Gray Phosphate	4000
06A162P	1-5/8	#6	Coarse	Phillips	Sharp	Bugle	Gray Phosphate	1000
06A162PB	1-5/8	#6	Coarse	Phillips	Sharp	Bugle	Gray Phosphate	4000
07A200P	2	#7	Coarse	Phillips	Sharp	Bugle	Gray Phosphate	1000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
06B125P	1-1/4	#6	Double	Phillips	Sharp	Bugle	Gray Phosphate	1000
06B125PB	1-1/4	#6	Double	Phillips	Sharp	Bugle	Gray Phosphate	4000
06B162P	1-5/8	#6	Double	Phillips	Sharp	Bugle	Gray Phosphate	1000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
07Q100PB	1	#7	High Low	Phillips	Sharp	Trim Head + Nibs	Gray Phosphate	4000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
07Q125PBQ	1-1/4	#7	High Low	Square	Sharp	Trim Head + Nibs	Gray Phosphate	4000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08L125CBLCTS	1-1/4	#8	Coarse	Square	Cut (Type 17)	Flat	Clear Zinc	4000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08L175YB	1-3/4	#8	Coarse	Square	Cut (Type 17)	Flat	Yellow Zinc	4000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08F150Y	1-1/2	#8	Coarse	Square	Sharp	Flat	Yellow Zinc	1000
08F175Y	1-3/4	#8	2/3 Coarse	Square	Sharp	Flat	Yellow Zinc	1000
08F200Y	2	#8	2/3 Coarse	Square	Sharp	Flat	Yellow Zinc	1000

Item Code	Length	Diameter	Thread	Drive Type	Point	Head	Finish	Box Count
08F200YBTHSS	2	#8	High Low	Square	Sharp	Trim Head + Nibs	Yellow Zinc	4000
