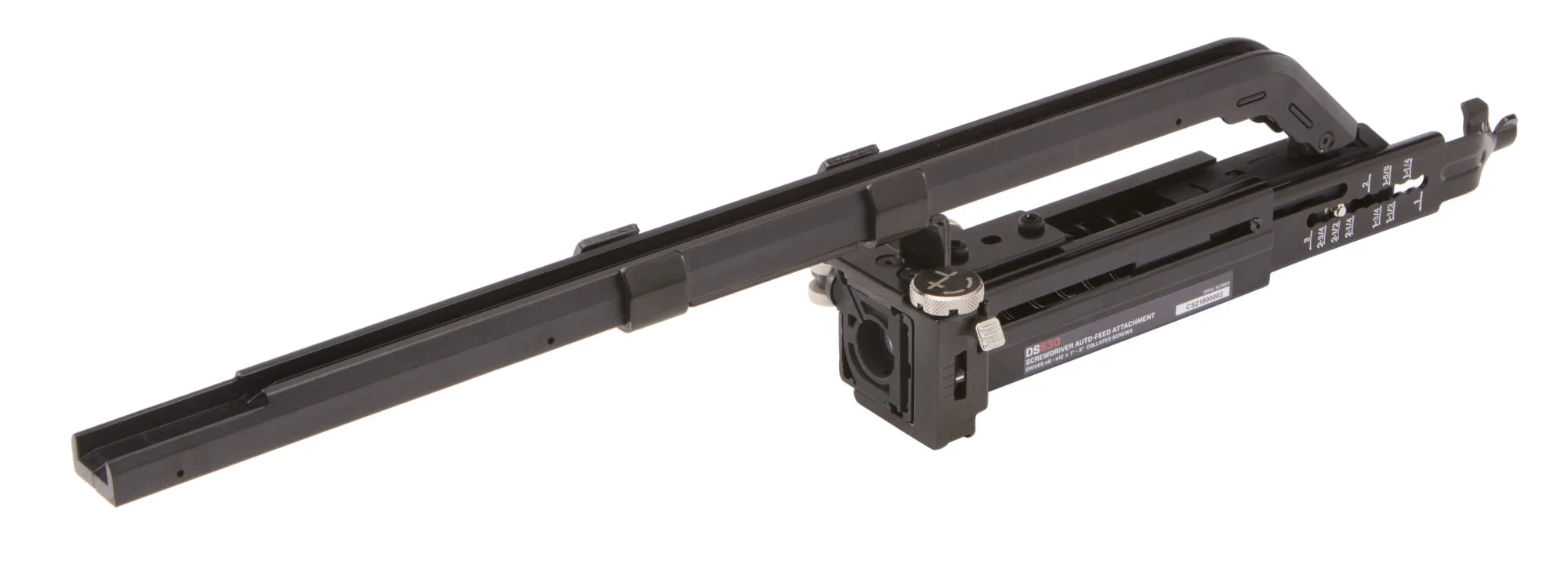

DS530_Attachment_Hero_Low_Back

DS530-D1

Degree/Gauge Icon

3” Auto-Feed Screwdriver Attachment

  • Feed On Return
  • Patented Sliding Screw Guide
  • Corner-Fit Feed System
  • Quick Release Clamp
  • Extension Pole
The DS530 auto-feed screwdriver attachments are perfect for those looking to extend the reach of their existing power screwdrivers. The included extension pole turns your screwdriver into a stand-up tool, making it ideal for applications such as laying subfloor, underlayment, decking, cement board, and sheathing to steel. Capable of driving...
read more

DS530-D1

3” Auto-Feed Screwdriver Attachment

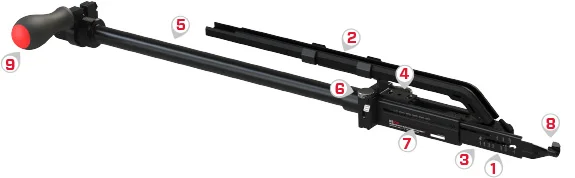

Features
1

FEED ON RETURN

Screws are in place before you drive for faster and more consistent performance

2

SLIDING SCREW GUIDE

Prevents screw binding ensuring consistent feeds

3

CORNER-FIT FEED SYSTEM

For better line of sight, easier operation, and excellent corner access

4

QUICK RELEASE CLAMP

Easily change or replace bits

5

EXTENSION POLE

Provides extended reach for standing applications

6

ADJUSTABLE DEPTH-OF-DRIVE WITH DEPTH LOCK

For consistent flush or countersink drives

7

STRIP FOLDBACK PROTECTION

Prevents empty strip from jamming the tool

8

TOOL-FREE ADJUSTABLE NOSEPIECE

Single nosepiece for wood and drywall applications, with easy-to-read length markings

9

ADJUSTABLE POWER GRIP HANDLE

Durable and rotates 360°

Applications
  • Sheathing
  • Decking
  • Underlayment
  • Sub-flooring
  • Steel decking
  • Drywall
  • Cement board
  • Rigid foam insulation

SPECIFICATIONS

  • Item #: 10X0012N
  • Tool Weight: 3.4 lbs (1.5 kgs)
  • Height: 3.5" (89 mm)
  • Length: 33" (838 mm)
  • Width: 2.75" (70 mm)
  • Warranty: 5 years
  • Technology: DURASPIN
  • Power Type: Attachment
  • Screw Diameteres: #6 - #12
  • Range: 1" - 3"
  • Diameter: 6" - 12"
  • Includes: Auto-feed Attachment, Extension Pole, Adapter, Adjustable Handle, (3) Drive Bits: EA0314, EA0315, EA0316

Bits

Compatible Bits

EA0314Phillips Bit

EA0315Square Bit

EA0316Rex Bit

FASTENERS

Compatible Fasteners
Application: UnderlaymentPTNSHGP
Diameter: #7
Range: 1
Thread: High Low
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Phillips
Point: Sharp
Head: Trim Head + Nibs
Application: UnderlaymentSTNSHGP
Diameter: #7
Range: 1-1/4
Thread: High Low
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Square
Point: Sharp
Head: Trim Head + Nibs
Application: CompositeDeckingScrewsSCPSHEB
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Brown
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan
Application: CompositeDeckingScrewsSCPSHEG
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Gray
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan
Application: CompositeDeckingScrewsSCPSHET
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Tan
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan
Application: CompositeDeckingScrewsSTCTEX
Diameter: #8
Range: 2-1/2" - 3"
Thread: 2/3 Coarse
Finish: Exterior
Quantity: 800
Drive Type: Square
Point: Cut (Type 17)
Head: Trim
08D200W_SCREW
Application: DeckingAndDocksSFCTEX
Diameter: #8
Range: 2" - 3"
Thread: 2/3 Coarse
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Cut (Type 17)
Head: Flat
Application: DeckingAndDocksSFCTSS
Diameter: #8
Range: 2-1/2" - 3"
Thread: 2/3 Coarse
Finish: 304 Stainless Steel
Quantity: 800
Drive Type: Square
Point: Cut (Type 17)
Head: Flat
Application: WoodtoLightSteelSFSHCZ
Diameter: #8
Range: 1-1/2
Thread: Double
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Sharp
Head: Flat
Application: DrywalltoWoodPBSHEX
Diameter: #6
Range: 1-5/8
Thread: Coarse
Finish: Exterior
Quantity: 1000
Drive Type: Phillips
Point: Sharp
Head: Bugle
Application: DrywalltoWoodPBSHGP
Diameter: #6
Range: 1-1/4" - 2-1/2"
Thread: Coarse
Finish: Gray Phosphate
Quantity: 1000
Drive Type: Phillips
Point: Sharp
Head: Bugle
Application: CementBoardSWNSPEX
Diameter: #8
Range: 1-1/4" - 2"
Thread: High Low
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Spoon
Head: Wafer + Nibs
Application: CementBoardSWNDREX
Diameter: #8
Range: 1-1/2
Thread: Fine
Finish: Exterior
Quantity: 4000
Drive Type: Square
Point: Drill
Head: Wafer + Nibs
