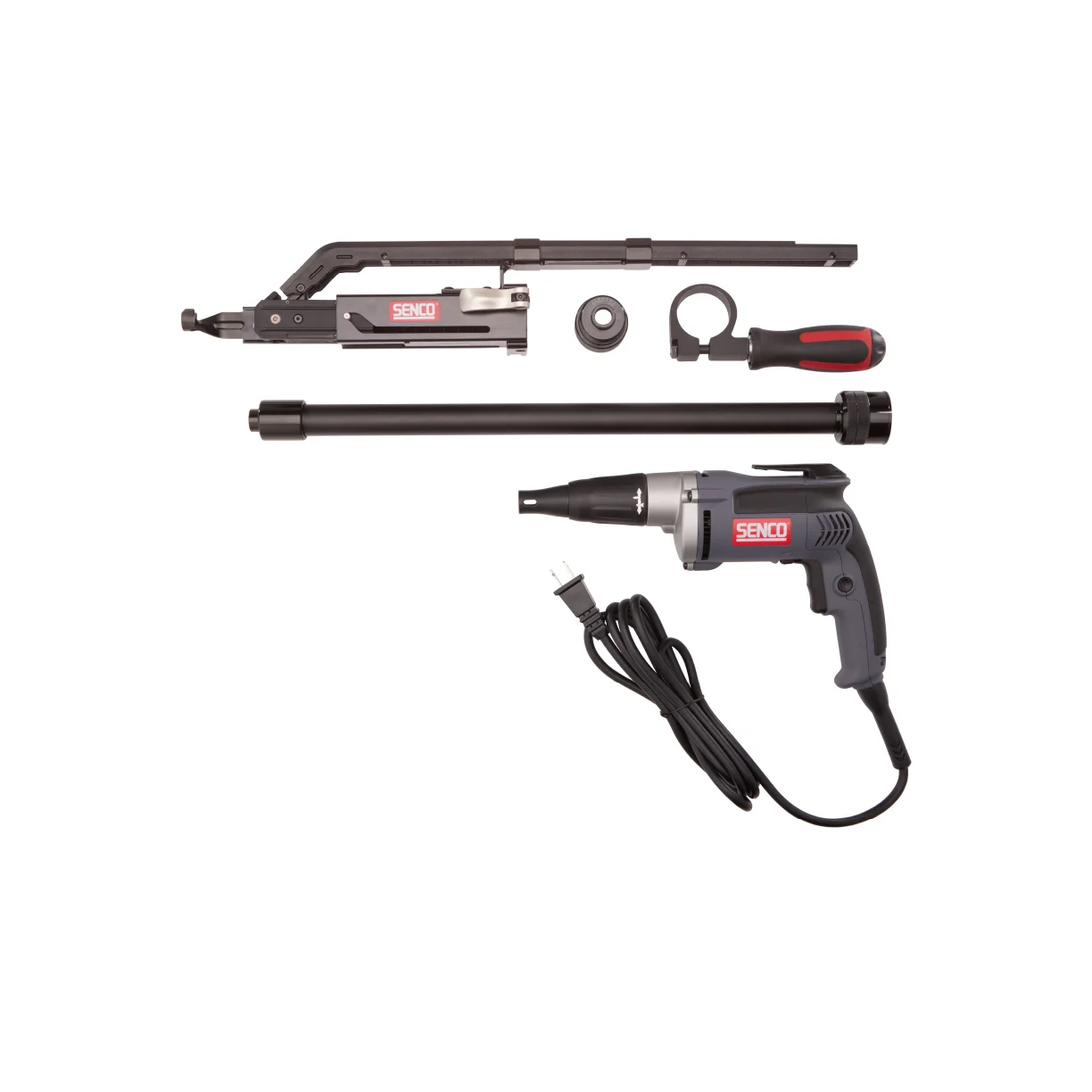

DS532-AC_0_Disassembled_Top_Down_View
DS532-AC_0_Assembled_Attachment_Only_w_Screws_01

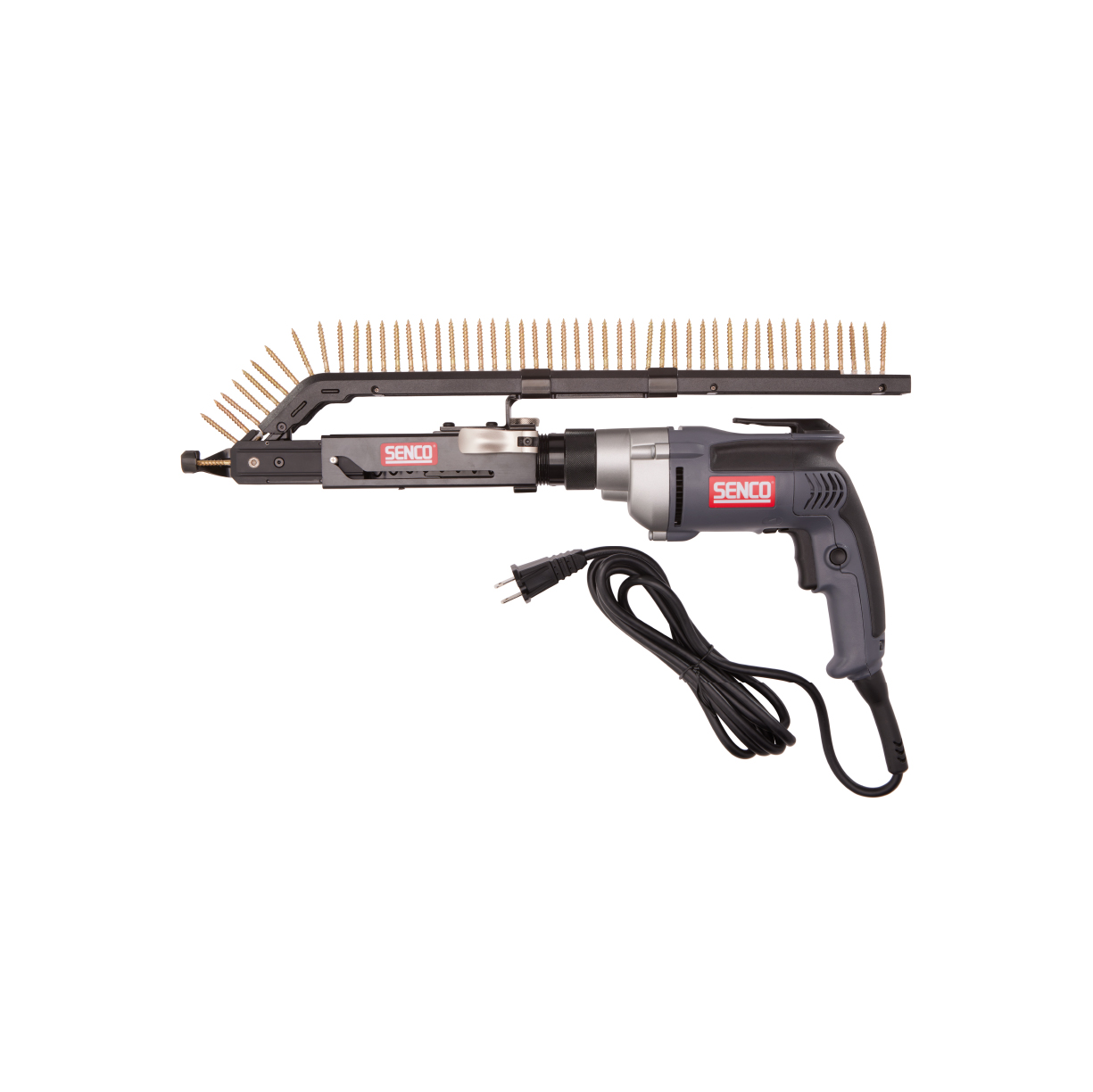

DS532-AC_0_Assembled_w_Screws
DS532-AC_180_Assembled_w_Screws
DS532-AC_Disassembled_Hero_High_Front

DS532-AC

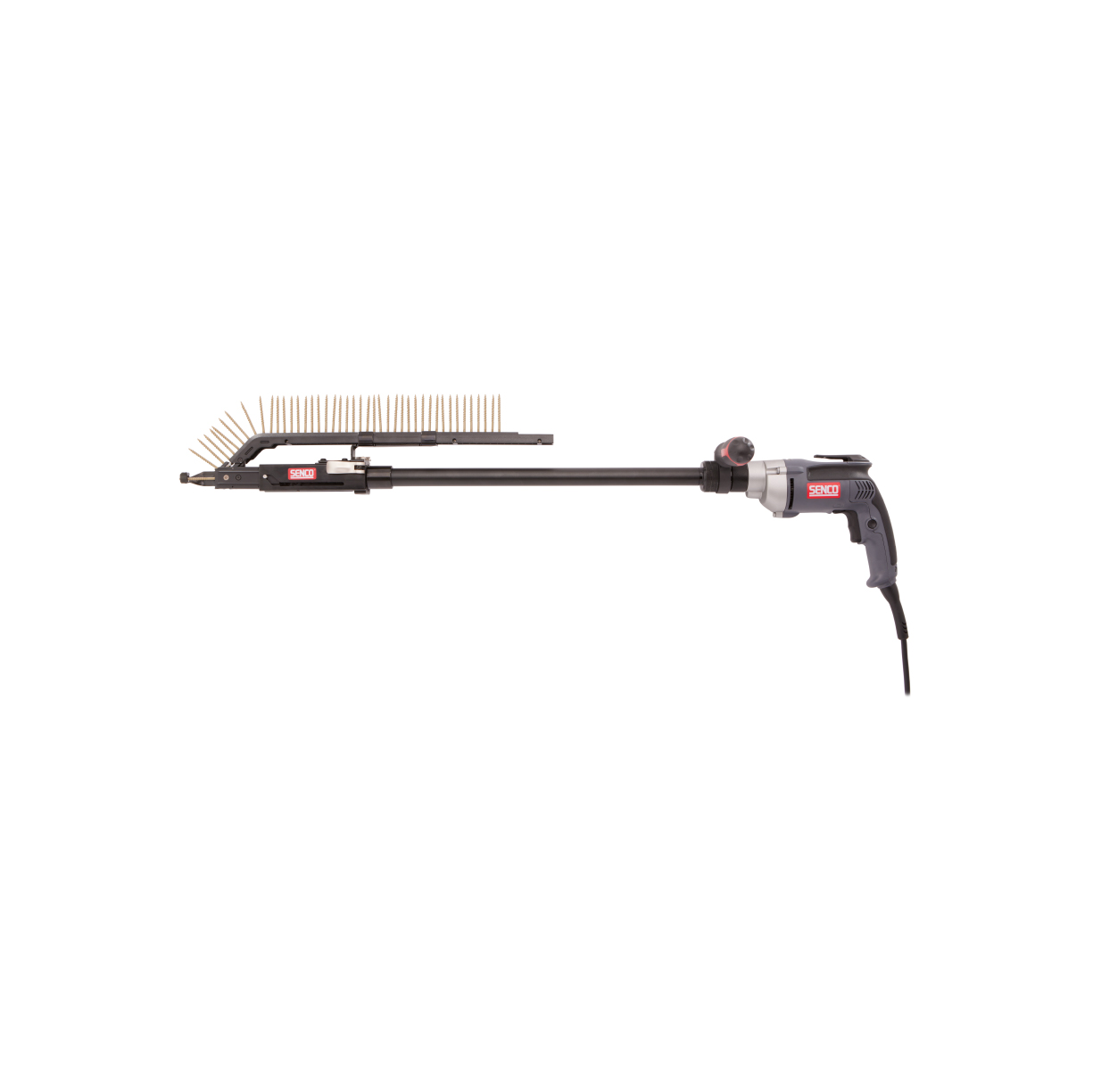

3” 2500 RPM SCREWDRIVER AND ATTACHMENT KIT

SHARE

  • 3-in-1 Tool Kit
  • Feed On Return
  • Patented Sliding Screw Guide
  • Corner-Fit Feed System
  • High-torque 0-2500 RPM motor
The extremely versatile DS532-AC 3-in-1 screwdriver kit provides configurations for a variety of applications. The high-torque, adjustable motor of the included SG2510 screwdriver is capable of speeds up to 2500 rpm, making it an ideal choice for driving 1”-3” screws into dense materials such as wood and composite decking, cement...
read more

DS532-AC

3” 2500 RPM SCREWDRIVER AND ATTACHMENT KIT

Features
1

FEED ON RETURN

Screws are in place before you drive for faster and more consistent performance

2

SLIDING SCREW GUIDE

Prevents screw binding ensuring consistent feeds

3

CORNER-FIT FEED SYSTEM

For better line of sight, easier operation, and excellent corner access

4

HIGH-TORQUE 0-2500 RPM MOTOR

Easily powers through the densest materials

5

QUICK RELEASE CLAMP

Easily change or replace bits

6

EXTENSION POLE

Provides extended reach for standing applications

7

ADJUSTABLE DEPTH-OF-DRIVE WITH DEPTH LOCK

For consistent flush or countersink drives

8

STRIP FOLDBACK PROTECTION

Prevents empty strip from jamming the tool

9

TOOL-FREE ADJUSTABLE NOSEPIECE

Single nosepiece for wood and drywall applications, with easy-to-read length markings

10

ADJUSTABLE POWER GRIP HANDLE

Durable and rotates 360°

Applications
  • For wood and composite decking
  • Cement board
  • Sub-flooring and underlayment
  • Sheathing to steel
  • Steel decking
  • Drywall to wood or steel

SPECIFICATIONS

  • Item #: 10X0003N
  • Tool Weight: 7 lbs (3.2 kgs)
  • Height: 7" (178 mm)
  • Length: 40.5" (1029 mm)
  • Width: 2.75" (70 mm)
  • Warranty: 5 years
  • Amp Draw: 6.5
  • Technology: DURASPIN
  • Trigger Type: Variable with Lock
  • Power Type: Corded
  • Screw Diameteres: #6 - #12
  • RPM: 2500
  • Range: 1" - 3"

FASTENERS

Compatible Fastners
Type: DeckingAndDocksSFCTSS
Gauge:
Range: 2-1/2" - 3"
Collation:

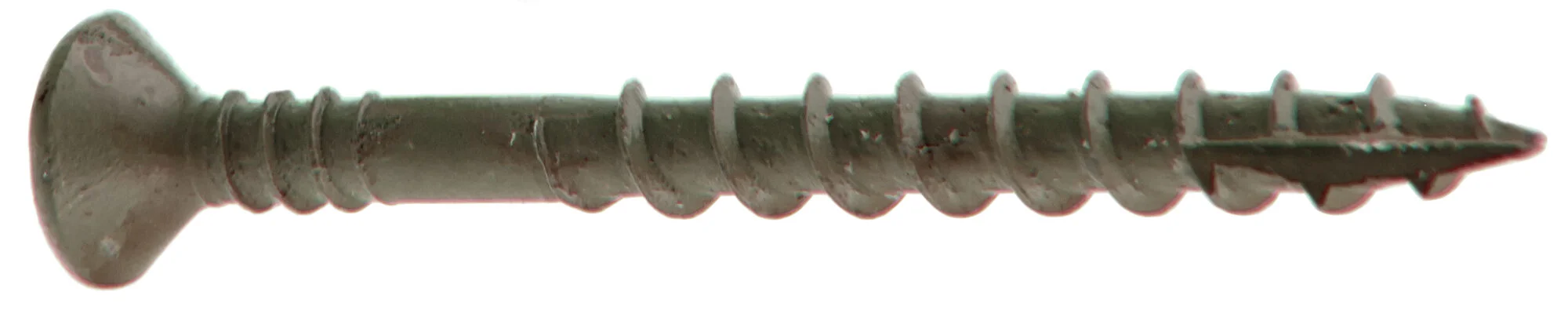

Type: DeckingAndDocksSFCTEX
Gauge:
Range: 2" - 3"
Collation:
Type: CompositeDeckingScrewsSCPSHEB
Gauge:
Range: 2-1/2
Collation:
Type: CompositeDeckingScrewsSCPSHEG
Gauge:
Range: 2-1/2
Collation: Plastic Strip
Type: CompositeDeckingScrewsSCPSHET
Gauge:
Range: 2-1/2
Collation:
Type: CompositeDeckingScrewsSTCTEX
Gauge:
Range: 2-1/2" - 3"
Collation:

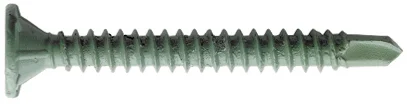

Type: CementBoardSWNDREX
Gauge:
Range: 1-1/2
Collation:

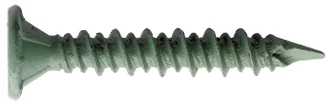

Type: CementBoardSWNSPEX
Gauge:
Range: 1-1/4" - 2"
Collation:

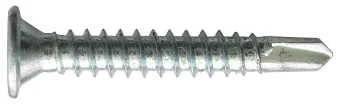

Type: WoodtoLightSteelSFSHCZ
Gauge:
Range: 1-1/2
Collation:
