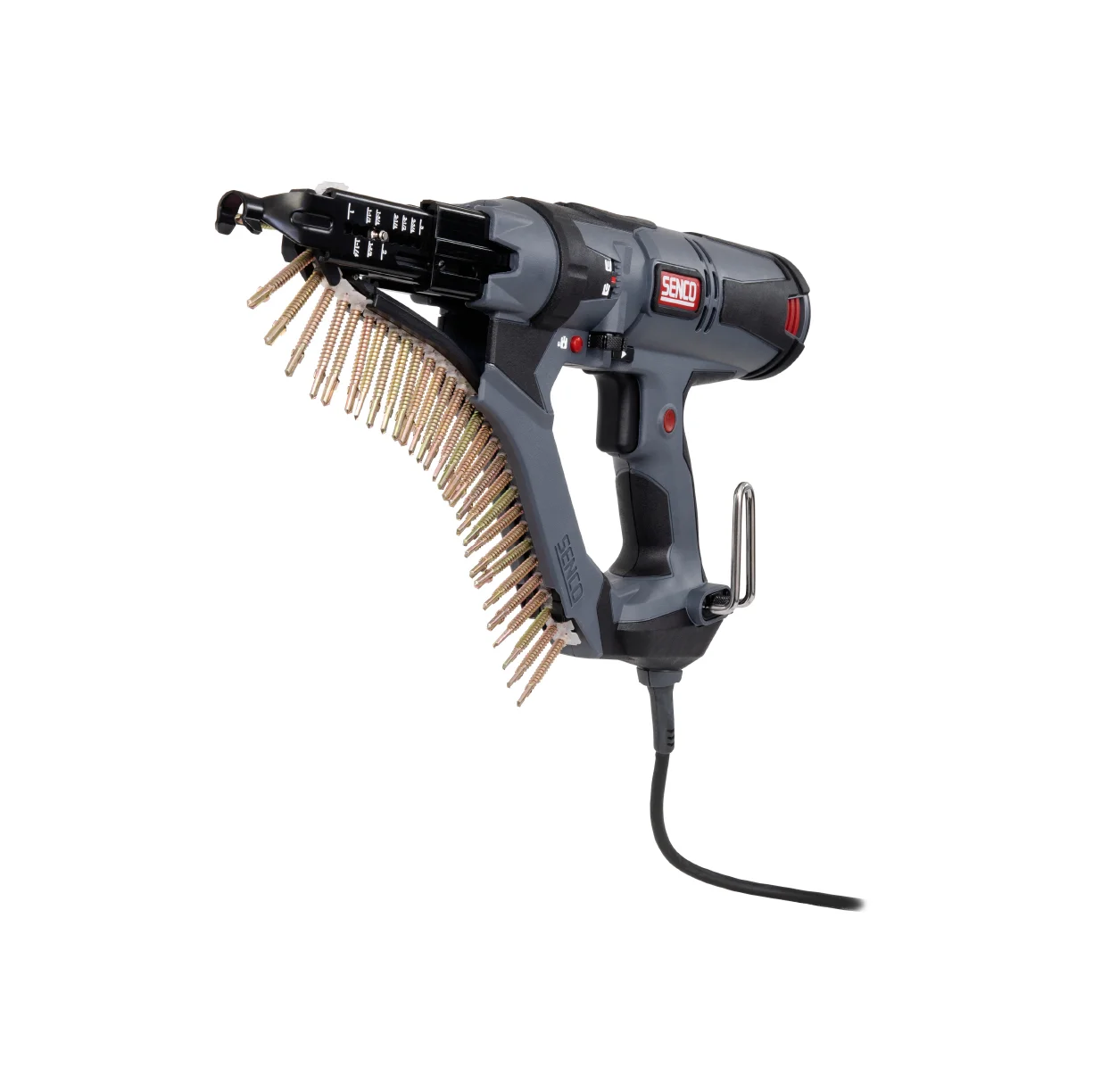

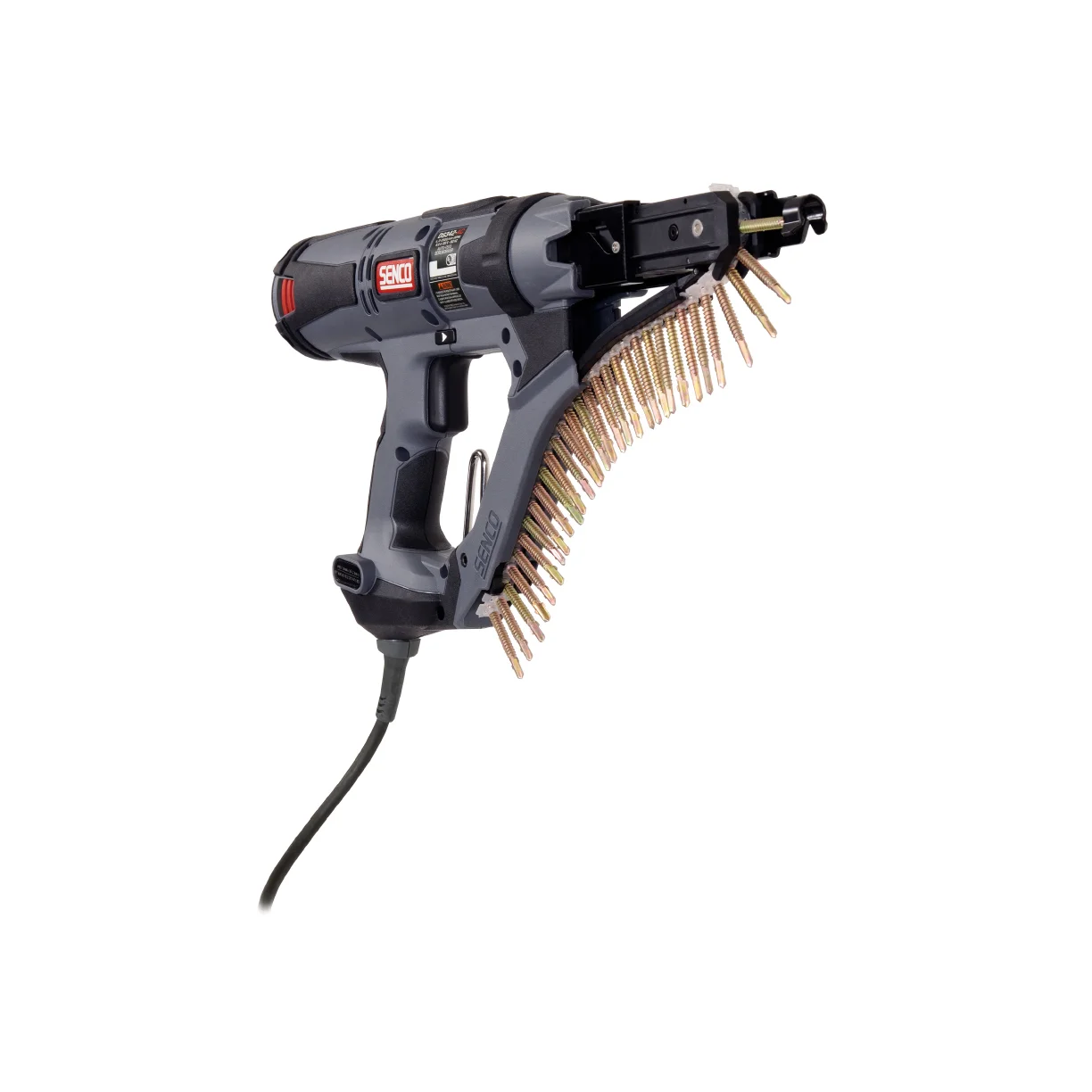

The DS342-AC is the perfect all-purpose tool for driving a broad range of screws into a variety of materials. The variable speed high-torque motor is capable of speeds up to 2500 rpm, easily driving 1” to 3” screws into dense materials. The tool-free screw-length adjustment allows the user to quickly switch between jobs on the fly. The patented screw-strip guide ensures consistent feeds and faster reloads after each strip.
DS342-AC
3” 120V 2500 RPM Collated Screwdriver
MSRP $295.00
- Patented corner-fit feed system
- Precise depth of drive adjustment with depth lock
- Quick slide bit release
- Tool-free screw length adjustment
- Variable speed trigger with lock and reverse
The DS342-AC is the perfect all-purpose tool for driving a broad range of screws into a variety of materials. The variable speed high-torque motor is capable of speeds up to 2500 rpm, easily driving 1” to 3” screws into dense materials. The tool-free screw-length adjustment allows the user to quickly...
Features
1
CORNER-FIT FEED SYSTEM
For better line of sight, easier operation and excellent corner access
2
FEED ON RETURN
Screws are in place before you drive for faster and more consistent performance
3
STRIP FOLDBACK PROTECTION
Prevents empty strip from jamming the tool
4
HIGH TORQUE MOTOR
Efficiently drives screws into dense substrates
5
Tool-free Depth Adjustment WITH DEPTH LOCK
Quickly change drive depth for flush or countersunk drives
6
QUICK SLIDE BIT RELEASE
Easily change or replace bits
7
TOOL-FREE ADJUSTABLE NOSEPIECE
Single nosepiece for wood and drywall applications, with easy-to-read length markings
8
REVERSE SWITCH
Switch between forward and reverse
9
VARIABLE SPEED TRIGGER
Vary RPMs for self-tapping screws into steel
10
SCREW GUIDE
Prevents screw binding for consistent feeds
11
BELT HOOK
Left or right side mounting option
12
POWER CORD
Heavy duty 10 ft. power cord
Applications
- High torque applications including flooring
- Decking
- Docks
- Crating
- Gypsum/sheathing to steel
SPECIFICATIONS
- Item #: 10F0001N
- Tool Weight: 6.68 lbs (3.03 kgs)
- Height: 9.5" (245.11 mm)
- Length: 17.17" (436.118 mm)
- Width: 3.23" (82.042 mm)
- Warranty: 5 years
- Technology: DURASPIN
- Trigger Type: Variable with Lock
- Range: 1" - 3"
- Power Type: Corded
- Screw Diameteres: #6 - #12
- RPM: 0 - 2500
- Includes: (2) Drive Bits EA0400(phillips), EA0401(square), Storage Bag
Bits
Compatible Bits
FASTENERS
Compatible Fasteners
Application: Underlayment
Diameter: #7
Range: 1
Thread: High Low
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Phillips
Point: Sharp
Head: Trim Head + Nibs
Diameter: #7
Range: 1
Thread: High Low
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Phillips
Point: Sharp
Head: Trim Head + Nibs
Application: Underlayment
Diameter: #7
Range: 1-1/4
Thread: High Low
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Square
Point: Sharp
Head: Trim Head + Nibs
Diameter: #7
Range: 1-1/4
Thread: High Low
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Square
Point: Sharp
Head: Trim Head + Nibs
Application: Gypsum to Heavy Steel
Diameter: #6
Range: 1-1/4" - 1-5/8"
Thread: Fine
Finish: Clear Zinc
Quantity: 4000
Drive Type: Phillips
Point: Drill
Head: Bugle
Diameter: #6
Range: 1-1/4" - 1-5/8"
Thread: Fine
Finish: Clear Zinc
Quantity: 4000
Drive Type: Phillips
Point: Drill
Head: Bugle
Application: Gypsum to Heavy Steel
Diameter: #6
Range: 1-1/4" - 3"
Thread: Fine
Finish: Exterior
Quantity: 1000
Drive Type: Phillips
Point: Drill
Head: Bugle
Diameter: #6
Range: 1-1/4" - 3"
Thread: Fine
Finish: Exterior
Quantity: 1000
Drive Type: Phillips
Point: Drill
Head: Bugle
Application: Gypsum to Heavy Steel
Diameter: #6
Range: 1-1/4" - 2"
Thread: Fine
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Phillips
Point: Drill
Head: Bugle
Diameter: #6
Range: 1-1/4" - 2"
Thread: Fine
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Phillips
Point: Drill
Head: Bugle
Application: Composite Decking
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Brown
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Brown
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan
Application: Composite Decking
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Gray
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Gray
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan
Application: Composite Decking
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Tan
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Tan
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan
Application: Composite Decking
Diameter: #8
Range: 2-1/2" - 3"
Thread: 2/3 Coarse
Finish: Exterior
Quantity: 800
Drive Type: Square
Point: Cut (Type 17)
Head: Trim
Diameter: #8
Range: 2-1/2" - 3"
Thread: 2/3 Coarse
Finish: Exterior
Quantity: 800
Drive Type: Square
Point: Cut (Type 17)
Head: Trim
Application: Decking And Docks
Diameter: #8
Range: 2" - 3"
Thread: 2/3 Coarse
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Cut (Type 17)
Head: Flat
Diameter: #8
Range: 2" - 3"
Thread: 2/3 Coarse
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Cut (Type 17)
Head: Flat
Application: Decking And Docks
Diameter: #8
Range: 2-1/2" - 3"
Thread: 2/3 Coarse
Finish: 304 Stainless Steel
Quantity: 800
Drive Type: Square
Point: Cut (Type 17)
Head: Flat
Diameter: #8
Range: 2-1/2" - 3"
Thread: 2/3 Coarse
Finish: 304 Stainless Steel
Quantity: 800
Drive Type: Square
Point: Cut (Type 17)
Head: Flat
