DS242-AC
DS242-AC_35_hero_low_w_fasteners
DS242-AC_-35_hero_low_w_fasteners
DS242-AC_180_w_fasteners

DS242-AC

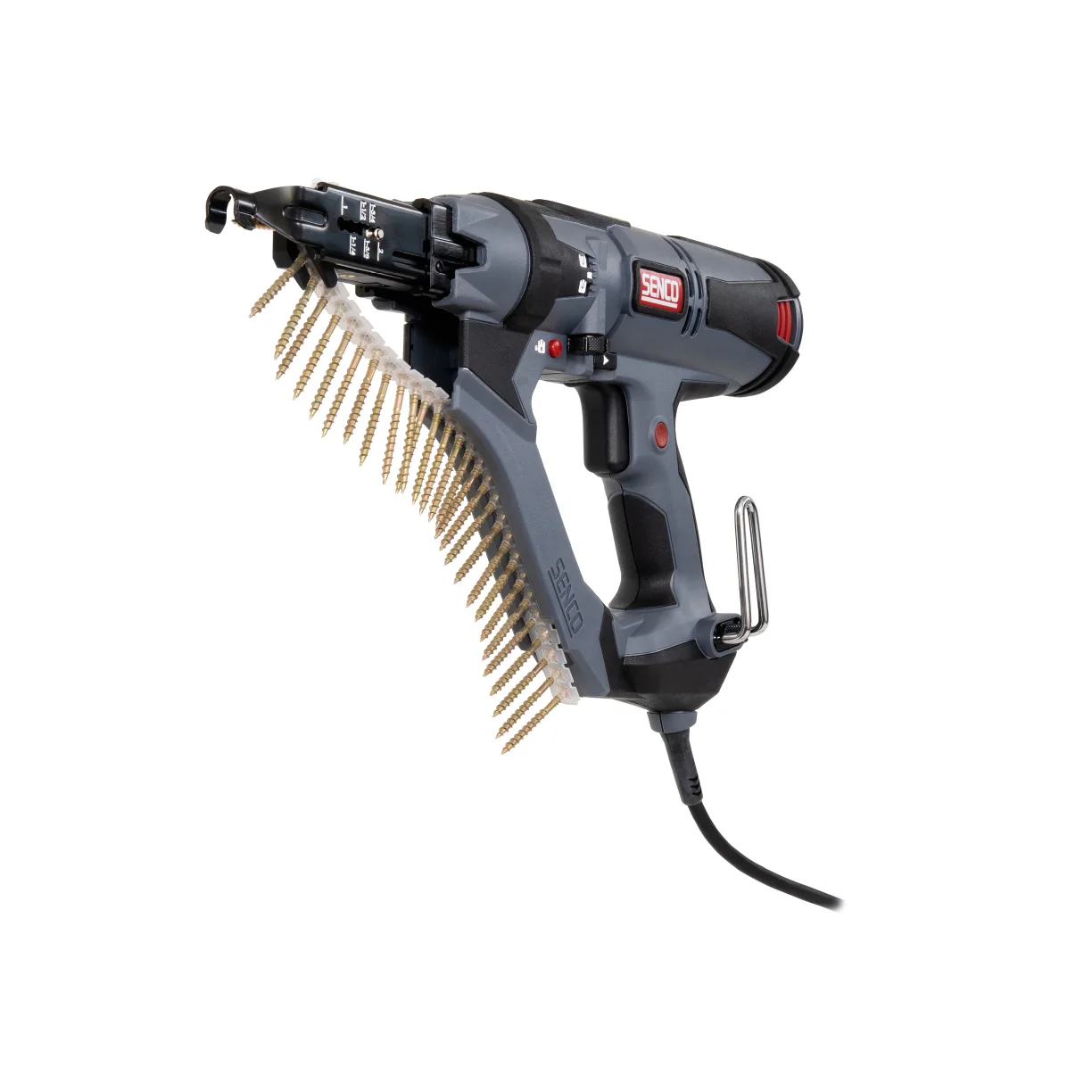

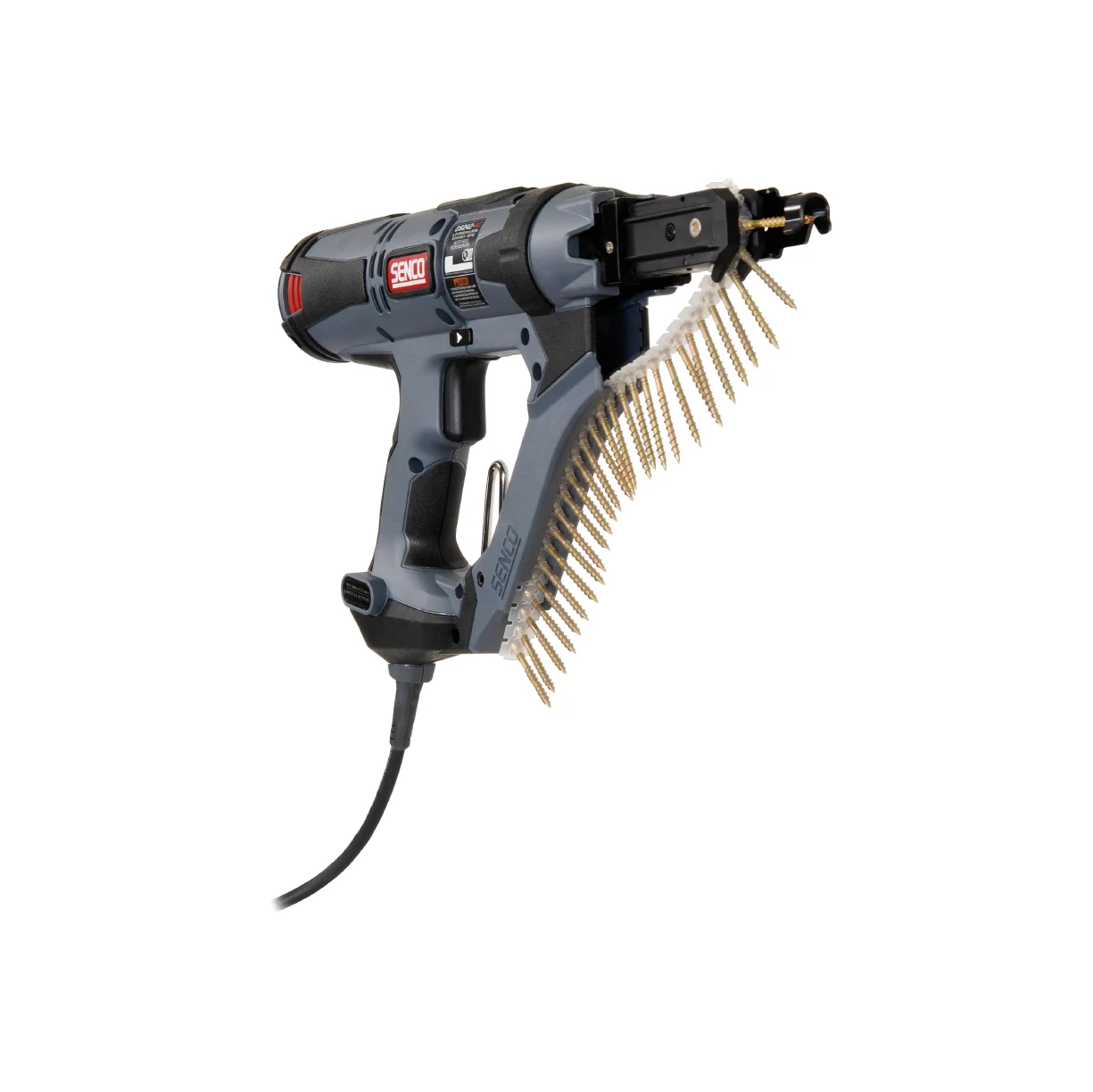

2" 120V 2500 RPM Auto-Feed Screwdriver

  • Patented corner-fit feed system
  • Precise depth of drive adjustment with depth lock
  • Quick slide button bit change
  • Tool-free screw length adjustment
The variable speed 2500 rpm high-torque motor of the DS242-AC provides the power for heavy duty applications, such as metal framing, gypsum sheathing to steel, and metal decking. The adjustable depth-of-drive locks in place to ensure consistent screw placement on each drive. SENCO’s patented corner-fit feed system provides access to...
read more

DS242-AC

2" 120V 2500 RPM Auto-Feed Screwdriver

Features
1

CORNER-FIT FEED SYSTEM

For better line of sight, easier operation and excellent corner access

2

FEED ON RETURN

Screws are in place before you drive for faster and more consistent performance

3

STRIP FOLDBACK PROTECTION

Prevents empty strip from jamming the tool

4

HIGH TORQUE MOTOR

Efficiently drives screws into dense substrates

5

ADJUSTABLE DEPTH-OF-DRIVE WITH DEPTH LOCK

For consistent flush drive or countersink (not visible, on other side of tool)

6

QUICK SLIDE BIT RELEASE

Easily change or replace bits

7

TOOL FREE ADJUSTABLE NOSEPIECE

Single nosepiece for wood and drywall applications, with easy-to-read length markings

8

REVERSE SWITCH

Quickly switch between forward and reverse

9

VARIABLE SPEED TRIGGER

Vary RPMs for self-tapping screws into steel

10

SCREW GUIDE

Prevents screw binding for consistent feeds

11

BELT HOOK

Left or right side mounting option

12

POWER CORD

Heavy duty 10 ft. power cord

Applications
  • High torque applications including metal framing
  • Decking
  • Gypsum sheathing
  • Sheathing to heavy steel

SPECIFICATIONS

  • Item #: 10E0001N
  • Tool Weight: 5.65 lbs (2.56 kgs)
  • Height: 9.65" (245.11 mm)
  • Length: 16.35" (415.29 mm)
  • Width: 3.23" (82.042 mm)
  • Warranty: 5 years
  • Technology: DURASPIN
  • Trigger Type: Variable with Lock
  • Power Type: Corded
  • Screw Diameteres: #6 - #12
  • RPM: 0 - 2500
  • Range: 1" - 2"
  • Includes: (2) Drive Bits EA0297(phillips), EA0298(square), Storage Bag

Bits

Compatible Bits

EA0297Phillips Bit

EA0298Square Bit

EA0299Rex Bit

FASTENERS

Compatible Fasteners
Application: WoodtoHeavySteelSWNWDEX
Diameter: #8
Range: 2
Thread: Fine
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Wing Drill
Head: Wafer + Nibs
Application: WoodtoLightSteelSFSHCZ
Diameter: #8
Range: 1-1/2
Thread: Double
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Sharp
Head: Flat
Application: SpecialtySROWCTCZ
Diameter: #8
Range: 1-1/4
Thread: Coarse
Finish: Clear Zinc
Quantity: 4000
Drive Type: Square
Point: Cut (Type 17)
Head: Round Washer
Application: SpecialtySROWDRCZ
Diameter: #8
Range: 1-1/4" - 2"
Thread: Double
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Drill
Head: Round Washer
Application: WoodtoHeavySteelRFWT3YZ
Diameter: #12
Range: 1-3/4
Thread: Fine
Finish: Yellow Zinc
Quantity: 1000
Drive Type: Rex
Point: Wing T3 Drill
Head: Flat
Application: WoodtoHeavySteelRFWT5YZ
Diameter: #12
Range: 2
Thread: Fine
Finish: Yellow Zinc
Quantity: 1000
Drive Type: Rex
Point: Wing T5 Drill
Head: Flat
Application: MetaltoMetalSMFPDRCZ
Diameter: #10
Range: 1
Thread: Fine
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Drill
Head: Mod Flat Pan
Application: GypsumtoHeavySteelPBDRCZ
Diameter: #6
Range: 1-1/4" - 1-5/8"
Thread: Fine
Finish: Clear Zinc
Quantity: 4000
Drive Type: Phillips
Point: Drill
Head: Bugle
Application: GypsumtoHeavySteelPBDREX
Diameter: #6
Range: 1-1/4" - 1-5/8"
Thread: Fine
Finish: Exterior
Quantity: 1000
Drive Type: Phillips
Point: Drill
Head: Bugle
Application: GypsumtoHeavySteelPBDRGP
Diameter: #6
Range: 1-1/4" - 2"
Thread: Fine
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Phillips
Point: Drill
Head: Bugle
08D200W_SCREW
Application: DeckingAndDocksSFCTEX
Diameter: #8
Range: 2
Thread: 2/3 Coarse
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Cut (Type 17)
Head: Flat
Application: CementBoardSWNDREX
Diameter: #8
Range: 1-1/2
Thread: Fine
Finish: Exterior
Quantity: 4000
Drive Type: Square
Point: Drill
Head: Wafer + Nibs
