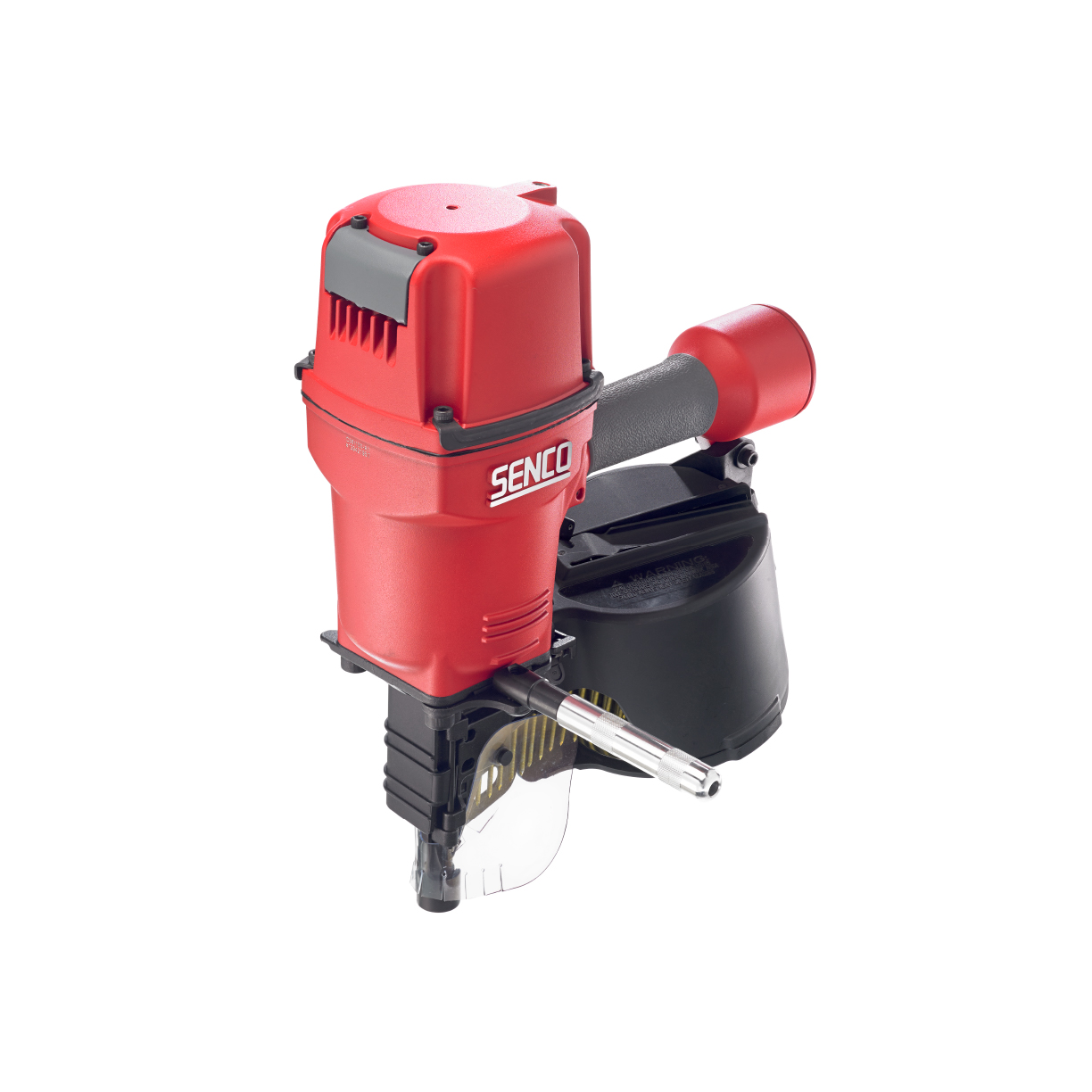

5L0001N

PalletPro100XP

15°

4" Coil Nailer

PalletPro™100XP has the power and durability to consistently drive up to 4" x .148 nails all day long. The included T-handle helps comfortably maneuver and securely control the tool during operation. The high capacity magazine holds up to 300 fasteners, ensuring maximum productivity for a wide variety of applications. If...

EXPLORE COMPATIBLE FASTENERS

FEATURES
SPECS
FASTENERS
similar products

5L0001N

PalletPro100XP

4" Coil Nailer

Manual Parts Chart

Features

Strengthened Driver and Piston Bumper

Improve performance and durability

Heavy-Duty Threaded T-handle

For extra stability when needed

High Capacity Magazine

Holds up to 300 fasteners

Flexible Collation Deﬂector and Debris Shield

Protects the operator and tool when in use

Aluminum Mainbody

Reduces weight and provides superior durability

Ergonomic Overmolded Grip

Reduces fatigue and increases control of the tool

Applications

Pallets
Framing
Engineered Lumber
Truss Attachment
Commercial Applications

SPECIFICATIONS

Item #: 5L0001N
Tool Weight: 11.5 lbs (5.24 kgs)
Height: 16.5" (418 mm)
Length: 13.25" (338 mm)
Width: 6" (153 mm)
Warranty: 5 years
Technology: PNEUMATIC
Trigger Type: Contact Actuation

Capacity: 225 - 300
Power Type: Pneumatic
Operating Pressure: 70 - 120 (PSI)
Operating Pressure: 4.9 - 8.4 (Bar)
Air Consumption: 11.4 (SCFM)
Air Inlet NPT: 3/8"
Range: 2-1/4" - 4"

FASTENERS

Compatible Fastners

Type: 15° Ring Shank Coil Nails
Degree: 15°
Range: 2" - 3"
Collation: 15° Angled Wire Coil

Type: 15° Screw Shank Coil Nails
Degree: 15°
Range: 2" - 2-1/4"
Collation: 15° Angled Wire Coil

Type: 15° Smooth Shank Coil Nails
Degree: 15°
Range: 2-3/8" - 3-1/2"
Collation: 15° Angled Wire Coil

Item Code	Length	Diameter	Point	Head	Finish	Coating	Collation	Box Count
BE23AABF	2-1/4	0.099	Diamond	Full Round Head	Galvanized	Sencote	15° Angled Wire Coil	6600
BL23APBF	2-1/4	0.099	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	6600
GL21APBF	2	0.113	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	6000
GL24AABF	2-3/8	0.113	Diamond	Full Round Head	Galvanized	Sencote	15° Angled Wire Coil	6000
GL24AGBF	2-3/8	0.113	Diamond	Full Round Head	304 Stainless Steel	Sencote	15° Angled Wire Coil	2700
GL24APBF	2-3/8	0.113	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	6000
GL24ASBF	2-3/8	0.113	Diamond	Full Round Head	Hot Dipped Galvanized	Sencote	15° Angled Wire Coil	2700
HL27AABF	3	0.12	Diamond	Full Round Head	Galvanized	Sencote	15° Angled Wire Coil	3600
HL27AGBF	3	0.12	Diamond	Full Round Head	304 Stainless Steel	Sencote	15° Angled Wire Coil	2400
HL27ASBF	3	0.12	Diamond	Full Round Head	Hot Dipped Galvanized	Sencote	15° Angled Wire Coil	2400

Item Code	Length	Diameter	Point	Head	Finish	Coating	Collation	Box Count
BK21BPBFN	2	0.099	Blunt Diamond	ProHead®	Bright Basic	Sencote	15° Angled Wire Coil	9000
BK21EPBF	2	0.099	Chisel	ProHead®	Bright Basic	Sencote	15° Angled Wire Coil	6600
BK23BPBFN	2-1/4	0.099	Blunt Diamond	ProHead®	Bright Basic	Sencote	15° Angled Wire Coil	9000
BK23EPBF	2-1/4	0.099	Chisel	ProHead®	Bright Basic	Sencote	15° Angled Wire Coil	6600

Item Code	Length	Diameter	Point	Head	Finish	Coating	Collation	Box Count
GD24APBF	2-3/8	0.113	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	6000
GD25AABF	2-1/2	0.113	Diamond	Full Round Head	Galvanized	Sencote	15° Angled Wire Coil	6000
GD25APBF	2-1/2	0.113	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	6000
HD27APBF	3	0.12	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	4000
HD28APBF	3-1/4	0.12	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	4000
KD25APBF	2-1/2	0.131	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	3600
KD27APBF	3	0.131	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	3600
KD27ASBF	3	0.131	Diamond	Full Round Head	Hot Dipped Galvanized	Sencote	15° Angled Wire Coil	2400
KD28AABF	3-1/4	0.131	Diamond	Full Round Head	Galvanized	Sencote	15° Angled Wire Coil	3600
KD28APBF	3-1/4	0.131	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	3600
KD28ASBF	3-1/4	0.131	Diamond	Full Round Head	Hot Dipped Galvanized	Sencote	15° Angled Wire Coil	2400
KD29APBF	3-1/2	0.131	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	3600
M003007	3	0.131	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	2400
M003009	3-1/4	0.131	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	2400
