The FN71T1 delivers the power, durability and performance to keep professional contractors working all day on the toughest jobsites. It drives both wire and plastic collated nails in a wide range of sizes from .099″ to .148″ in diameter and 2″ to 3-1/2″ in length. User-friendly features like the high-capacity magazine, tool-free depth adjustment, rugged rafter hook, and selectable trigger make the FN71T1 the ideal tool for framing and sheathing projects.

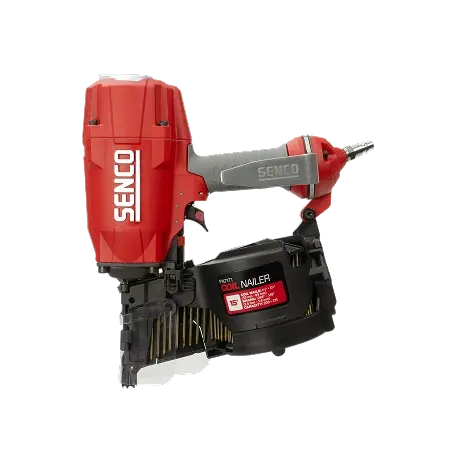

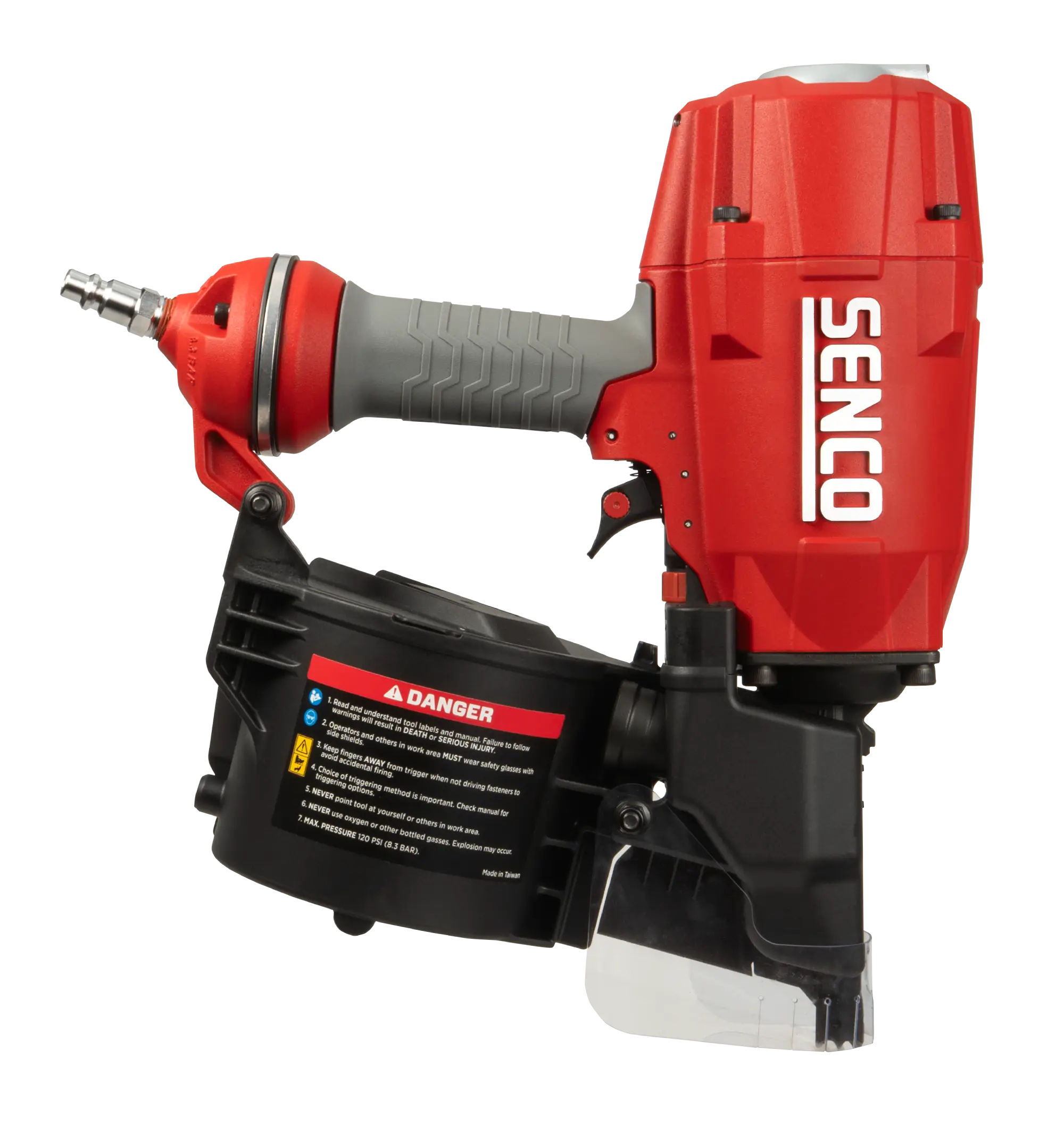

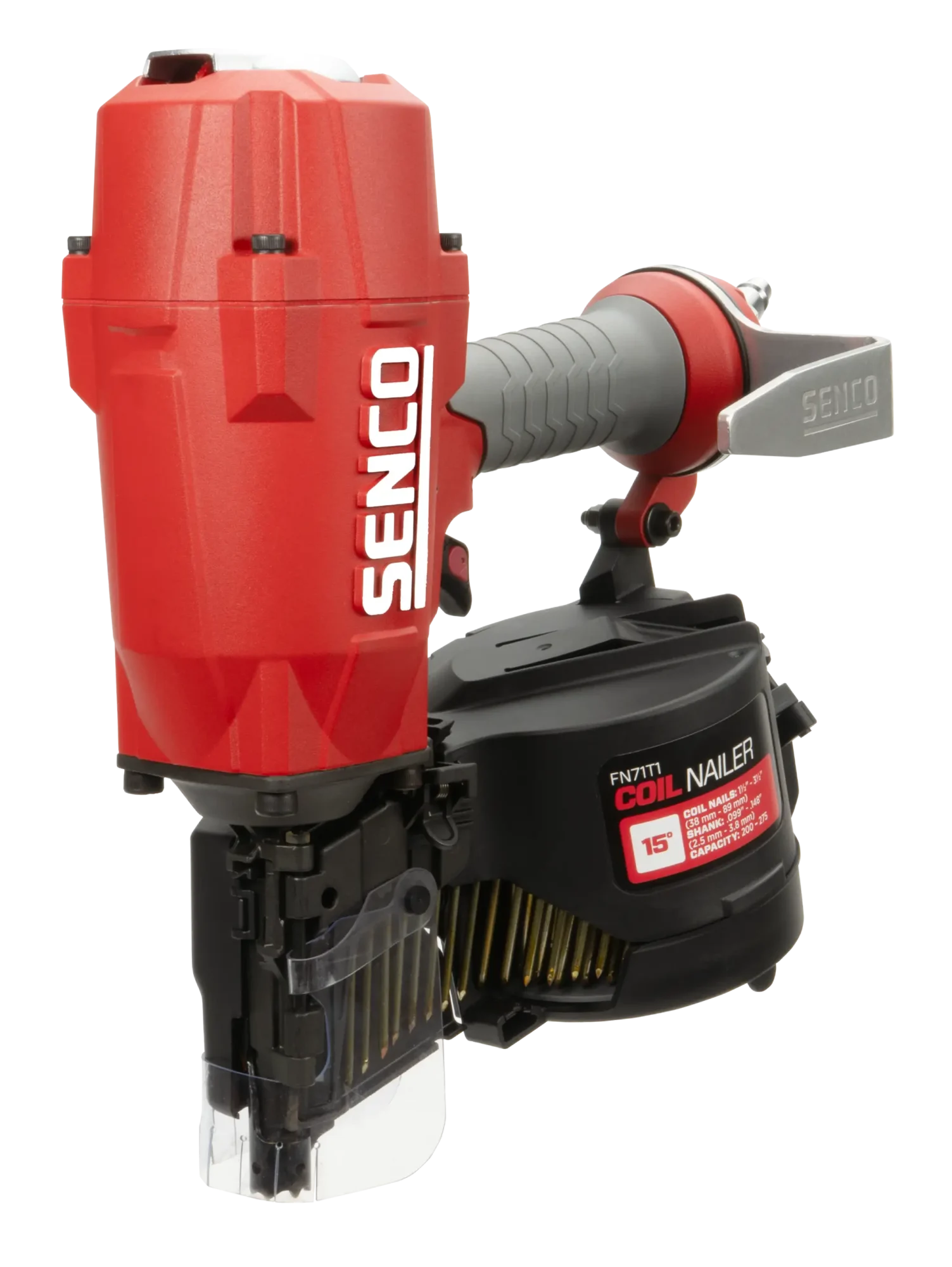

3-1/2” COIL NAILER
- Lightweight and durable aluminum body
for all-day use - Power to consistently drive a wide range of nails into dense materials like
LVL and OSB - Drives both wire and plastic collated nails with ease
- 275 nail high-capacity magazine
for fewer reloads - Tool-free depth adjustment for consistent flush or countersunk drives
The FN71T1 delivers the power, durability and performance to keep professional contractors working all day on the toughest jobsites. It drives both wire and plastic collated nails in a wide range of sizes from .099" to .148" in diameter and 2" to 3-1/2" in length. User-friendly features like the high-capacity...
Features
1
LIGHTWEIGHT AND BALANCED
Compact and comfortable design for all-day use
2
POWERFUL
Fully drives a wide range of nails into dense framing materials like LVL and OSB
3
DUAL COLLATION
Uses wire weld or plastic collated nails
4
HIGH CAPACITY
Magazine holds up to 275 nails for fewer reloads
5
TOOL-FREE DEPTH ADJUSTMENT
Quickly change drive depth for flush or countersunk drives
6
RUGGED RAFTER HOOK
Rotatable aluminum design keeps tool secure when not in use
7
SELECTABLE TRIGGER
Easily switch between contact or sequential firing modes
8
ERGONOMIC OVERMOLDED GRIP
Reduces fatigue and increases control
of the tool
9
DEBRIS SHIELD
Protects work surface and operator

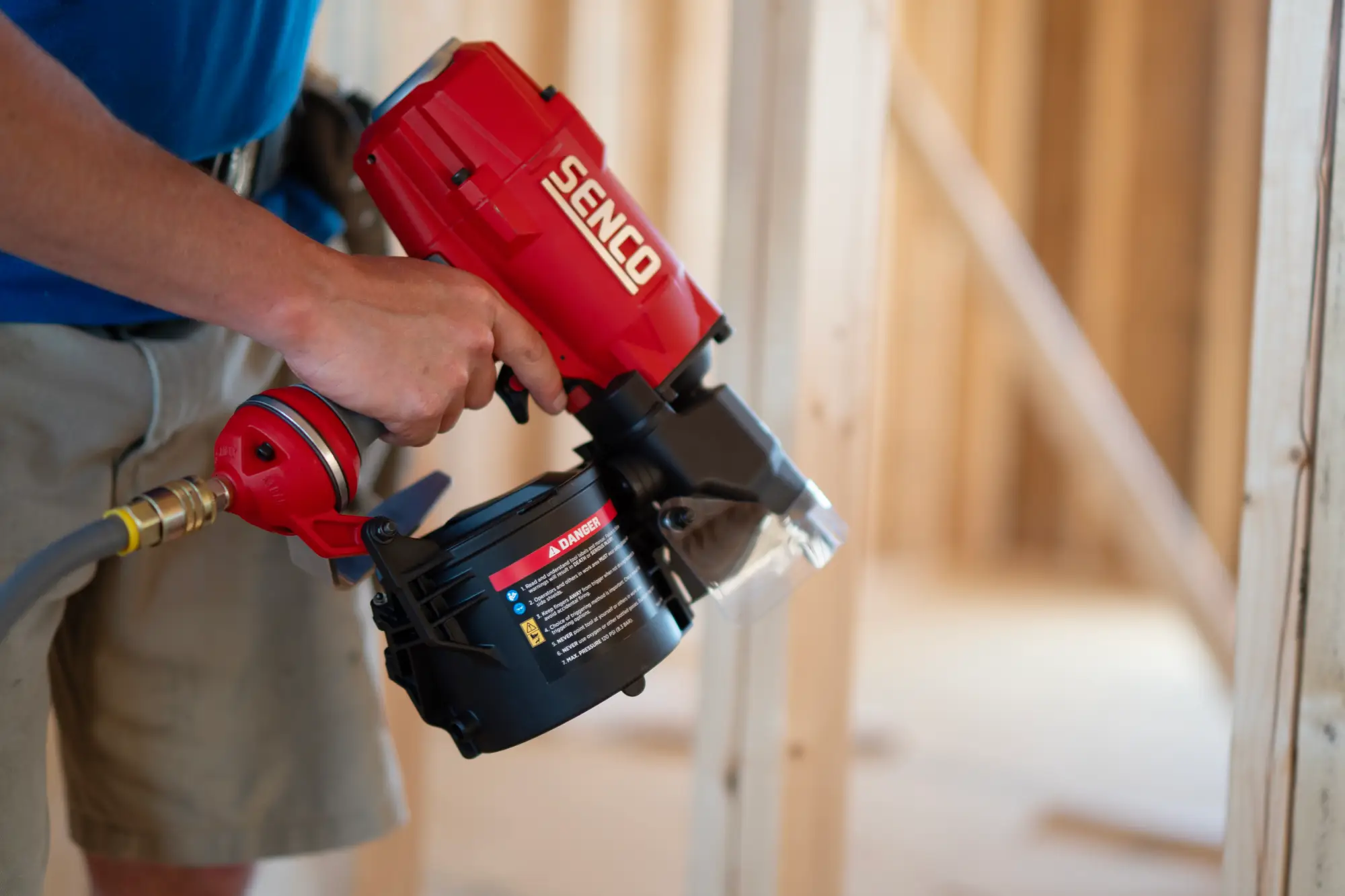

Applications
- Framing
- Truss Building
- Subflooring
- Sheating
- Decking
- Siding
- Fencing
- Pallets and Crate Assembly
SPECIFICATIONS
- Item #: FN71T1
- Tool Weight: 7.86 lbs (3.6 kgs)
- Height: 12.75" (324 mm)
- Length: 15" (381 mm)
- Width: 5" (127 mm)
- Warranty: 5 years
- Technology: PNEUMATIC
- Trigger Type: Selectable Actuation
- Power Source: Pneumatic
- Capacity: 200-275
- Diameter: 0.099" - 0.148"
- Range: 1-1/2" - 3-1/2"
- Operating Pressure: 70-120 PSI (4.8-8.3 Bar)
- Air Consumption: 5.86 SCFM
- Air Inlet NPT: 3/8"
- Includes: Air Plug
FASTENERS
Compatible Fasteners
Type: 15° Ring Shank Coil Nails – Whisper Grip
Degree: 15°
Range: 2" - 2-1/2"
Collation: 15° Angled Wire Coil
Degree: 15°
Range: 2" - 2-1/2"
Collation: 15° Angled Wire Coil
