520101N

SCN60XP

15°

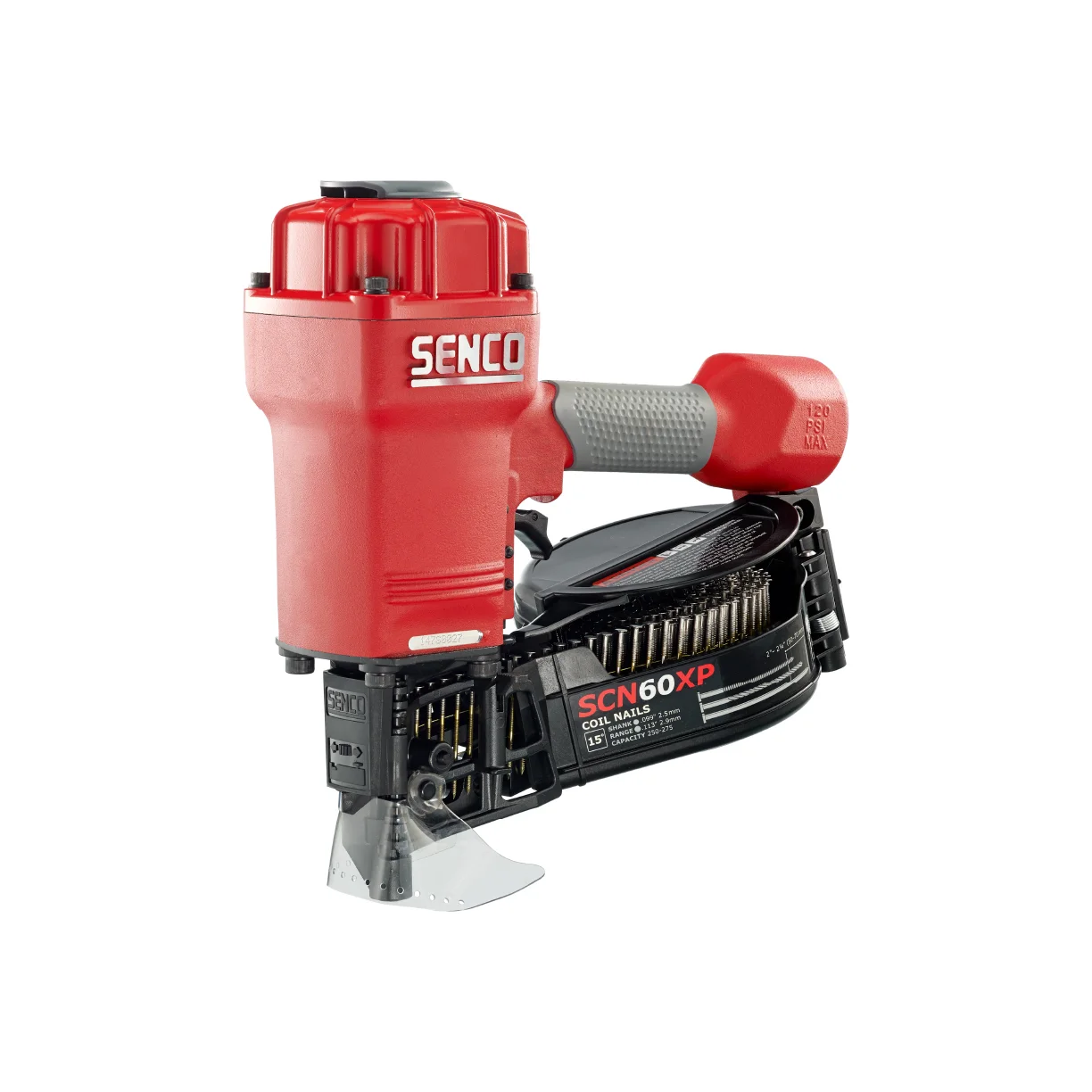

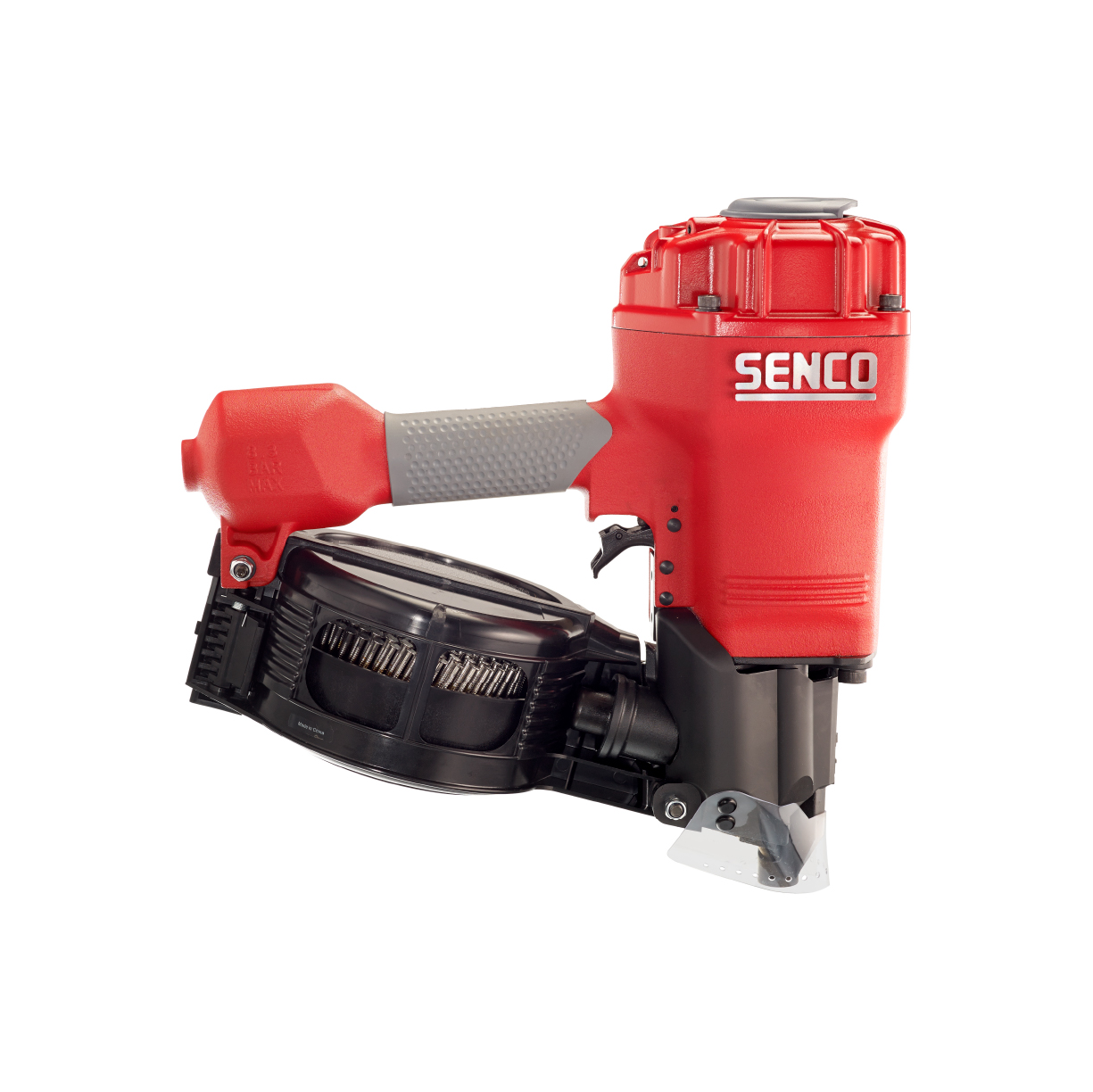

2-3/4" Coil Nailer

Ruggedly constructed with the power and speed to maximize productivity for a wide variety of applications, the SCN60XP coil nailer is a versatile tool that is built to last. The coil nailer’s magazine holds up to 275 15-degree flat wire welded coil nails up to 2-¾” in length. The tool...

EXPLORE COMPATIBLE FASTENERS

FEATURES
SPECS
FASTENERS
similar products

520101N

SCN60XP

2-3/4" Coil Nailer

Manual Parts Chart

Features

High Capacity Magazine

Holds up to 275 fasteners

Tool-Free Depth Adjustment

For consistent flush or countersunk drives

Clear Magazine Door

Makes it easy to see when you need to reload.

Debris Shield

Protects the user and work surface during use

Ergonomic Overmolded Grip

Reduces fatigue and increases control of the tool

360° Adjustable Exhaust

Directs air away from the operator or worksurface

Applications

Framing
Sheathing
Decking
Subflooring
Crate, Pallet & Box Assembly

SPECIFICATIONS

Item #: 520101N
Tool Weight: 7.5 lbs (3.4 kgs)
Height: 12.38" (314 mm)
Length: 12.88" (327 mm)
Width: 5.38" (137 mm)
Warranty: 5 years
Technology: PNEUMATIC
Trigger Type: Contact Actuation

Capacity: 250 - 275
Power Type: Pneumatic
Operating Pressure: 70 - 120 (PSI)
Operating Pressure: 4.8 - 8.3 (Bar)
Air Consumption: 8.29 (SCFM)
Air Inlet NPT: 3/8"
Range: 2" - 2-3/4"
Diameter: 0.099" - 0.113"

FASTENERS

Compatible Fastners

Type: 15° Ring Shank Coil Nails
Degree: 15°
Range: 2" - 2-3/8"
Collation: 15° Angled Wire Coil

Type: 15° Screw Shank Coil Nails
Degree: 15°
Range: 2" - 2-1/2"
Collation: 15° Angled Wire Coil

Type: 15° Smooth Shank Coil Nails
Degree: 15°
Range: 2" - 2-1/2"
Collation: 15° Angled Wire Coil

Type: Duplex Smooth Shank Coil Nails
Degree: 15°
Range: 2-1/8" - 2-7/8"
Collation: 15° Angled Wire Coil

Item Code	Length	Diameter	Point	Head	Finish	Coating	Collation	Box Count
BE23AABF	2-1/4	0.099	Diamond	Full Round Head	Galvanized	Sencote	15° Angled Wire Coil	6600
BL21APBF	2	0.099	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	6600
BL23APBF	2-1/4	0.099	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	6600
GL21APBF	2	0.113	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	6000
GL24AABF	2-3/8	0.113	Diamond	Full Round Head	Galvanized	Sencote	15° Angled Wire Coil	6000
GL24AGBF	2-3/8	0.113	Diamond	Full Round Head	304 Stainless Steel	Sencote	15° Angled Wire Coil	2700
GL24APBF	2-3/8	0.113	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	6000
GL24ASBF	2-3/8	0.113	Diamond	Full Round Head	Hot Dipped Galvanized	Sencote	15° Angled Wire Coil	2700

Item Code	Length	Diameter	Point	Head	Finish	Coating	Collation	Box Count
BK21BPBFN	2	0.099	Blunt Diamond	ProHead®	Bright Basic	Sencote	15° Angled Wire Coil	9000
BK21EPBF	2	0.099	Chisel	ProHead®	Bright Basic	Sencote	15° Angled Wire Coil	6600
BK23BPBFN	2-1/4	0.099	Blunt Diamond	ProHead®	Bright Basic	Sencote	15° Angled Wire Coil	9000
BK23EPBF	2-1/4	0.099	Chisel	ProHead®	Bright Basic	Sencote	15° Angled Wire Coil	6600
BK25BPBFN	2-1/2	0.099	Blunt Diamond	ProHead®	Bright Basic	Sencote	15° Angled Wire Coil	6000

Item Code	Length	Diameter	Point	Head	Finish	Coating	Collation	Box Count
GD21AABF	2	0.113	Diamond	Full Round Head	Galvanized	Sencote	15° Angled Wire Coil	6000
GD21APBF	2	0.113	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	6000
GD24APBF	2-3/8	0.113	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	6000
GD25AABF	2-1/2	0.113	Diamond	Full Round Head	Galvanized	Sencote	15° Angled Wire Coil	6000
GD25APBF	2-1/2	0.113	Diamond	Full Round Head	Bright Basic	Sencote	15° Angled Wire Coil	6000

Item Code	Length	Diameter	Point	Head	Finish	Coating	Collation	Box Count
HR22APAF	2-1/8	0.12	Diamond	Duplex	Bright Basic	Plain	15° Angled Wire Coil	5400
HR74APAF	2-7/8	0.12	Diamond	Duplex	Bright Basic	Plain	15° Angled Wire Coil	3600

SIMILAR PRODUCTS

SN71P1 2-1/2” COIL SIDING NAILER

520101N SCN60XP

540104N SCN65XP

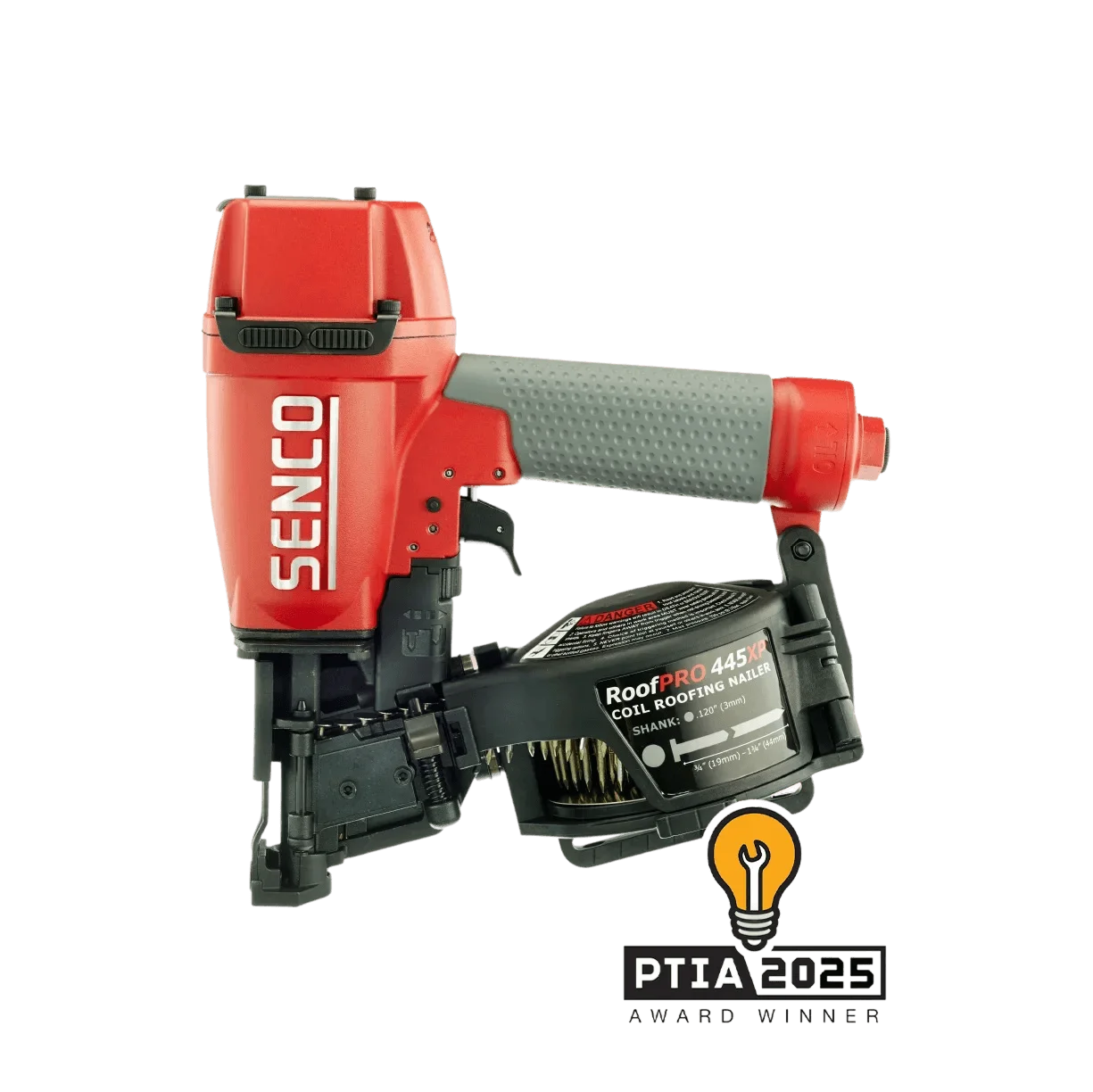

8V0001N RoofPro™445XP

4L0001N PalletPro57FXP

5L0001N PalletPro100XP

5M0001N PalletPro130XP
