Powered by an efficient brushless motor, this high torque collated screwdriver includes an extended life 4.0Ah battery and a variable speed selector for heavy steel, a quick release feed system with our patented corner fit technology. The DS222-18V also features feed on return – the next screw is aligned with the bit for better line of sight and easier, more accurate screw placement.
DS222-18V
2" 2500 RPM Cordless Collated Screwdriver
MSRP $475.00
- Patented corner-fit feed system
- Detachable feed system to expose bit for quick reversing
- Selectable 2500/1600 RPM high torque brushless motor
- Precise depth of drive adjustment with depth lock
- Quick slide bit release
Powered by an efficient brushless motor, this high torque collated screwdriver includes an extended life 4.0Ah battery and a variable speed selector for heavy steel, a quick release feed system with our patented corner fit technology. The DS222-18V also features feed on return – the next screw is aligned with...

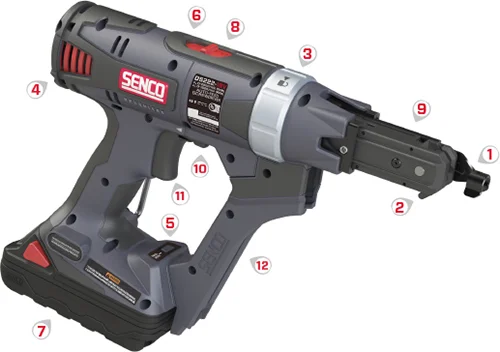

Features
1
CORNER-FIT FEED SYSTEM
Improved line of sight and better corner access
2
FEED ON RETURN
Screws are in place before you drive for faster and more consistent performance
3
REMOVABLE FEED SYSTEM
Detachable feed system for easier reversing
4
HIGH TORQUE BRUSHLESS MOTOR
Provides increased performance and battery life with reduced size
5
SPEED SELECTION BUTTON (1600 RPM)
Decrease the maximum speed for heavy steel applications
6
Tool-free Depth Adjustment WITH DEPTH LOCK
Quickly change drive depth for flush or countersunk drives
7
EXTENDED LIFE 4.0AH LI-ION BATTERY
Uses latest cell technology for increased power and capacity
8
QUICK SLIDE BIT RELEASE
Easily insert or remove bits
9
1”-2” TOOL-FREE ADJUSTABLE NOSE PIECE
Single nosepiece for wood and drywall applications with easy to read length markings
10
REVERSE SWITCH
Switch between forward and reverse drive modes
11
VARIABLE SPEED TRIGGER
Change RPMs for self-tapping screws into steel
12
PATENTED SCREW GUIDE
Prevents screw binding for consistent feeding
Applications
- High torque applications including metal framing/decking
- Crating
- Gypsum/sheathing to heavy steel
SPECIFICATIONS
- Item #: 10B0002N
- Tool Weight: 5.65 lbs (2.56 kgs)
- Height: 9.59" (243.59 mm)
- Length: 13.66" (346.96 mm)
- Width: 3.36" (85.34 mm)
- Warranty: 5 years
- Battery: 4.0Ah 18V Li-Ion Battery
- Fasteners Per Charge: 2500
- Technology: DURASPIN
- Trigger Type: Variable with Lock
- Range: 1" - 2"
- Power Type: Cordless
- Screw Diameteres: #6 - #12
- RPM: 2500
- Includes: (2) Drive Bits EA0297, EA0298, 4.0Ah Li-Ion Extended Life Battery, Charger, and Storage Bag
Bits
Compatible Bits
FASTENERS
Compatible Fasteners
Application: Cement Board
Diameter: #8
Range: 1-1/2
Thread: Fine
Finish: Exterior
Quantity: 4000
Drive Type: Square
Point: Drill
Head: Wafer + Nibs
Diameter: #8
Range: 1-1/2
Thread: Fine
Finish: Exterior
Quantity: 4000
Drive Type: Square
Point: Drill
Head: Wafer + Nibs
Application: Wood to Light Steel
Diameter: #8
Range: 1-1/2
Thread: Double
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Sharp
Head: Flat
Diameter: #8
Range: 1-1/2
Thread: Double
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Sharp
Head: Flat
Application: Wood to Heavy Steel
Diameter: #10
Range: 1-1/4
Thread: Fine
Finish: Clear Zinc
Quantity: 4000
Drive Type: Square
Point: Drill
Head: Wafer
Diameter: #10
Range: 1-1/4
Thread: Fine
Finish: Clear Zinc
Quantity: 4000
Drive Type: Square
Point: Drill
Head: Wafer
Application: Specialty
Diameter: #8
Range: 1-1/4
Thread: Coarse
Finish: Clear Zinc
Quantity: 4000
Drive Type: Square
Point: Cut (Type 17)
Head: Round Washer
Diameter: #8
Range: 1-1/4
Thread: Coarse
Finish: Clear Zinc
Quantity: 4000
Drive Type: Square
Point: Cut (Type 17)
Head: Round Washer
Application: Metal to Metal
Diameter: #10
Range: 1
Thread: Fine
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Drill
Head: Mod Flat Pan
Diameter: #10
Range: 1
Thread: Fine
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Drill
Head: Mod Flat Pan
Application: Gypsum to Heavy Steel
Diameter: #6
Range: 1-1/4" - 1-5/8"
Thread: Fine
Finish: Clear Zinc
Quantity: 4000
Drive Type: Phillips
Point: Drill
Head: Bugle
Diameter: #6
Range: 1-1/4" - 1-5/8"
Thread: Fine
Finish: Clear Zinc
Quantity: 4000
Drive Type: Phillips
Point: Drill
Head: Bugle
Application: Gypsum to Heavy Steel
Diameter: #6
Range: 1-1/4" - 2"
Thread: Fine
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Phillips
Point: Drill
Head: Bugle
Diameter: #6
Range: 1-1/4" - 2"
Thread: Fine
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Phillips
Point: Drill
Head: Bugle
Application: Wood to Heavy Steel
Diameter: #8
Range: 2
Thread: Fine
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Wing Drill
Head: Wafer + Nibs
Diameter: #8
Range: 2
Thread: Fine
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Wing Drill
Head: Wafer + Nibs
Application: Wood to Heavy Steel
Diameter: #8
Range: 2
Thread: Fine
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Pilot
Head: Flat
Diameter: #8
Range: 2
Thread: Fine
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Pilot
Head: Flat
Application: Wood to Heavy Steel
Diameter: #8
Range: 1-5/8
Thread: Fine
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Wing Drill
Head: Wafer + Nibs
Diameter: #8
Range: 1-5/8
Thread: Fine
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Wing Drill
Head: Wafer + Nibs
Application: Specialty
Diameter: #8
Range: 1-1/4" - 2"
Thread: Double
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Drill
Head: Round Washer
Diameter: #8
Range: 1-1/4" - 2"
Thread: Double
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Drill
Head: Round Washer
Application: Drywall to Light Steel
Diameter: #6
Range: 1-1/4" - 1-5/8"
Thread: Double
Finish: Gray Phosphate
Quantity: 1000
Drive Type: Phillips
Point: Sharp
Head: Bugle
Diameter: #6
Range: 1-1/4" - 1-5/8"
Thread: Double
Finish: Gray Phosphate
Quantity: 1000
Drive Type: Phillips
Point: Sharp
Head: Bugle
Application: Gypsum to Heavy Steel
Diameter: #6
Range: 1-1/4" - 3"
Thread: Fine
Finish: Exterior
Quantity: 1000
Drive Type: Phillips
Point: Drill
Head: Bugle
Diameter: #6
Range: 1-1/4" - 3"
Thread: Fine
Finish: Exterior
Quantity: 1000
Drive Type: Phillips
Point: Drill
Head: Bugle
Application: Decking And Docks
Diameter: #8
Range: 2
Thread: 2/3 Coarse
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Cut (Type 17)
Head: Flat
Diameter: #8
Range: 2
Thread: 2/3 Coarse
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Cut (Type 17)
Head: Flat
