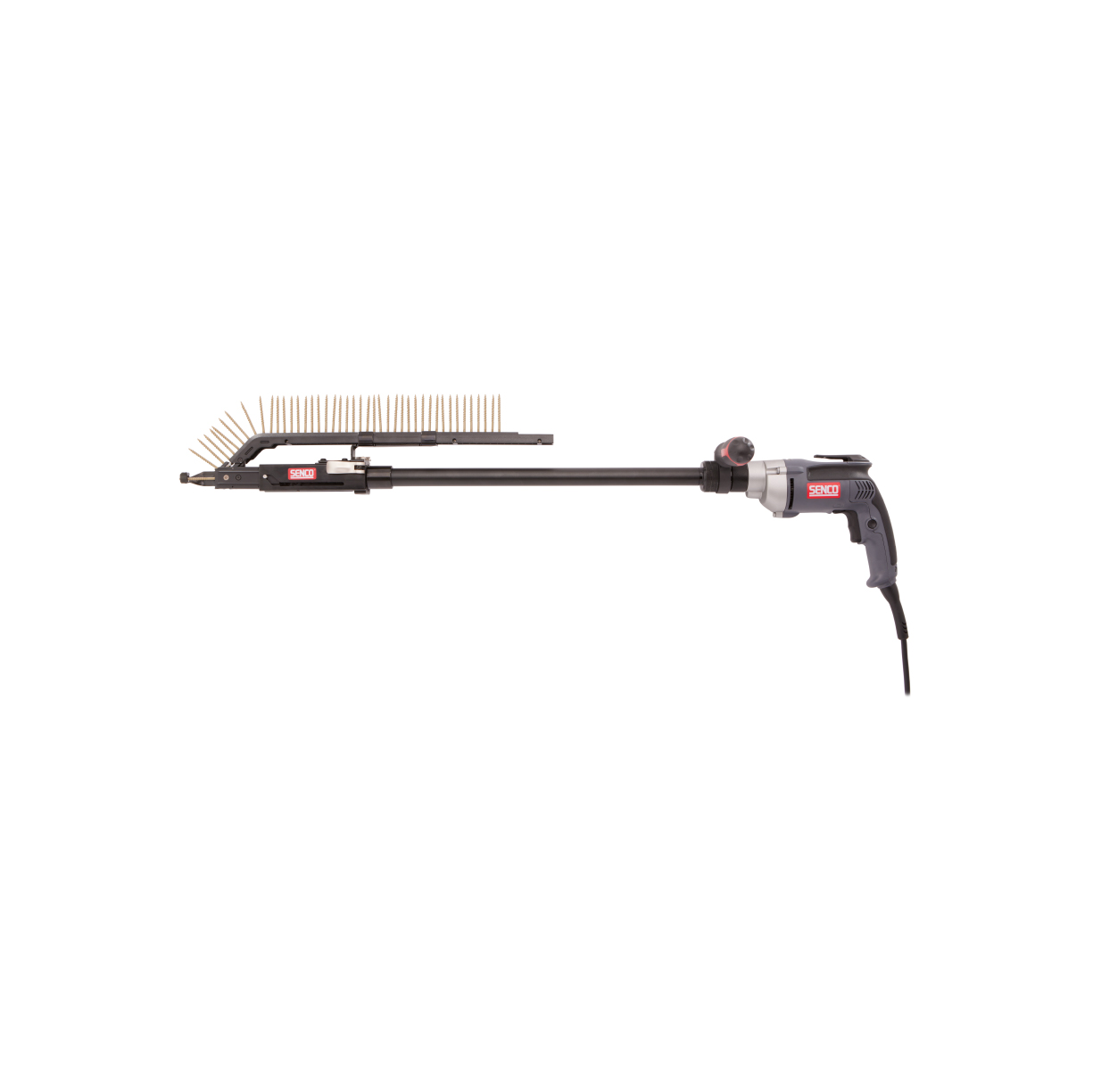

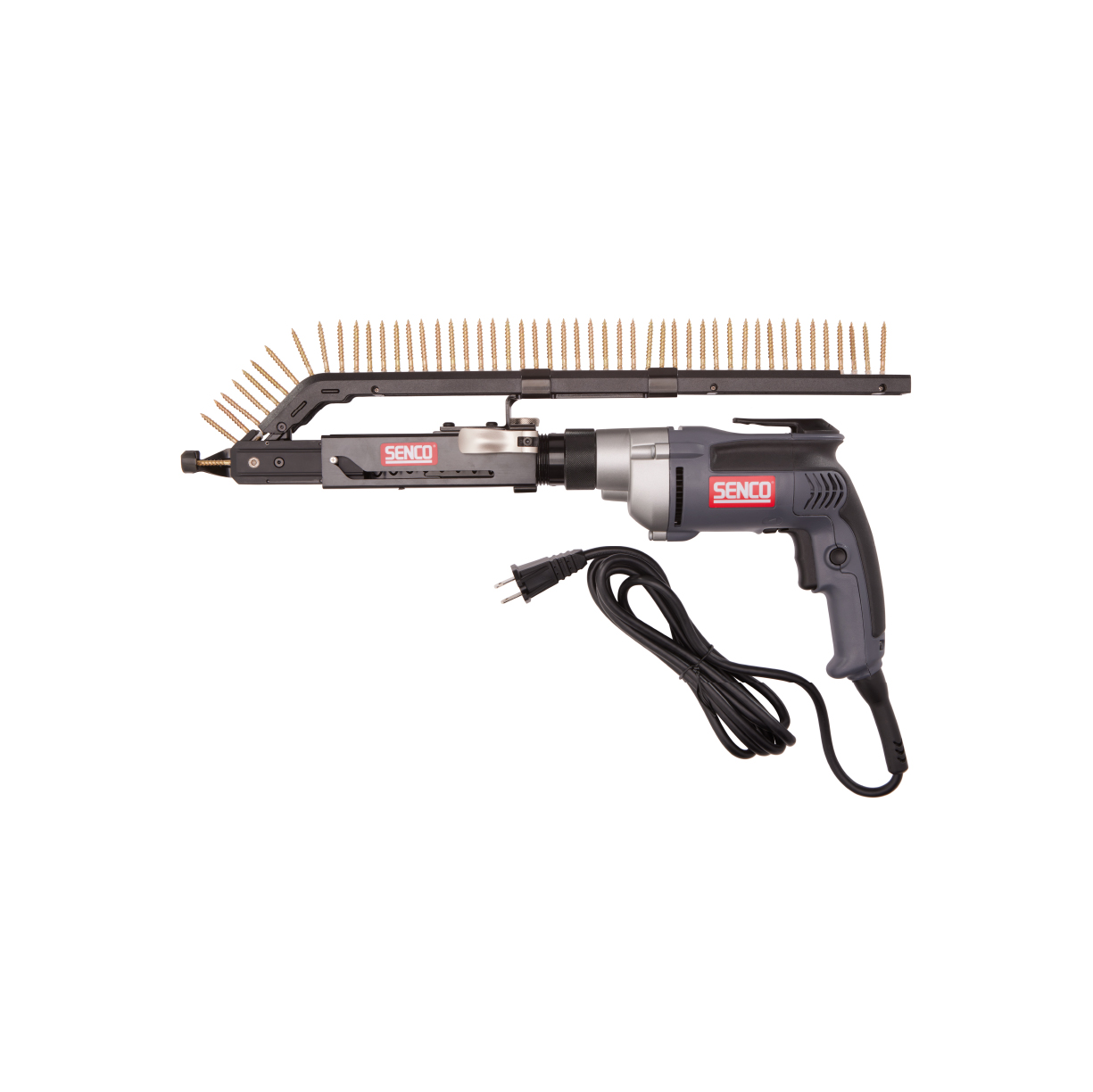

The extremely versatile DS532-AC 3-in-1 screwdriver kit provides configurations for a variety of applications. The high-torque, adjustable motor of the included SG2510 screwdriver is capable of speeds up to 2500 rpm, making it an ideal choice for driving 1”-3” screws into dense materials such as wood and composite decking, cement board, and sheathing to steel. The kit comes complete with SG2510 screwdriver, DS530 collated screwdriver attachment, extension pole, 3 bits and storage bag.
DS532-AC
3” 2500 RPM Collated Screwdriver and Attachment Kit
MSRP $399.00
- 3-in-1 Tool Kit
- Feed On Return
- Patented Sliding Screw Guide
- Corner-Fit Feed System
- High-torque 0-2500 RPM motor
The extremely versatile DS532-AC 3-in-1 screwdriver kit provides configurations for a variety of applications. The high-torque, adjustable motor of the included SG2510 screwdriver is capable of speeds up to 2500 rpm, making it an ideal choice for driving 1”-3” screws into dense materials such as wood and composite decking, cement...
Features
1
FEED ON RETURN
Screws are in place before you drive for faster and more consistent performance
2
SLIDING SCREW GUIDE
Prevents screw binding ensuring consistent feeds
3
CORNER-FIT FEED SYSTEM
For better line of sight, easier operation, and excellent corner access
4
HIGH-TORQUE 0-2500 RPM MOTOR
Easily powers through the densest materials
5
QUICK RELEASE CLAMP
Easily change or replace bits
6
EXTENSION POLE
Provides extended reach for standing applications
7
Tool-free Depth Adjustment WITH DEPTH LOCK
Quickly change drive depth for flush or countersunk drives
8
STRIP FOLDBACK PROTECTION
Prevents empty strip from jamming the tool
9
TOOL-FREE ADJUSTABLE NOSEPIECE
Single nosepiece for wood and drywall applications, with easy-to-read length markings
10
ADJUSTABLE POWER GRIP HANDLE
Durable and rotates 360°
Applications
- For wood and composite decking
- Cement board
- Sub-flooring and underlayment
- Sheathing to steel
- Steel decking
- Drywall to wood or steel
SPECIFICATIONS
- Item #: 10X0003N
- Tool Weight: 7 lbs (3.2 kgs)
- Height: 7" (178 mm)
- Length: 40.5" (1029 mm)
- Width: 2.75" (70 mm)
- Warranty: 5 years
- Amp Draw: 6.5
- Technology: DURASPIN
- Trigger Type: Variable with Lock
- Range: 1" - 3"
- Power Type: Corded
- Screw Diameteres: #6 - #12
- RPM: 0 - 2500

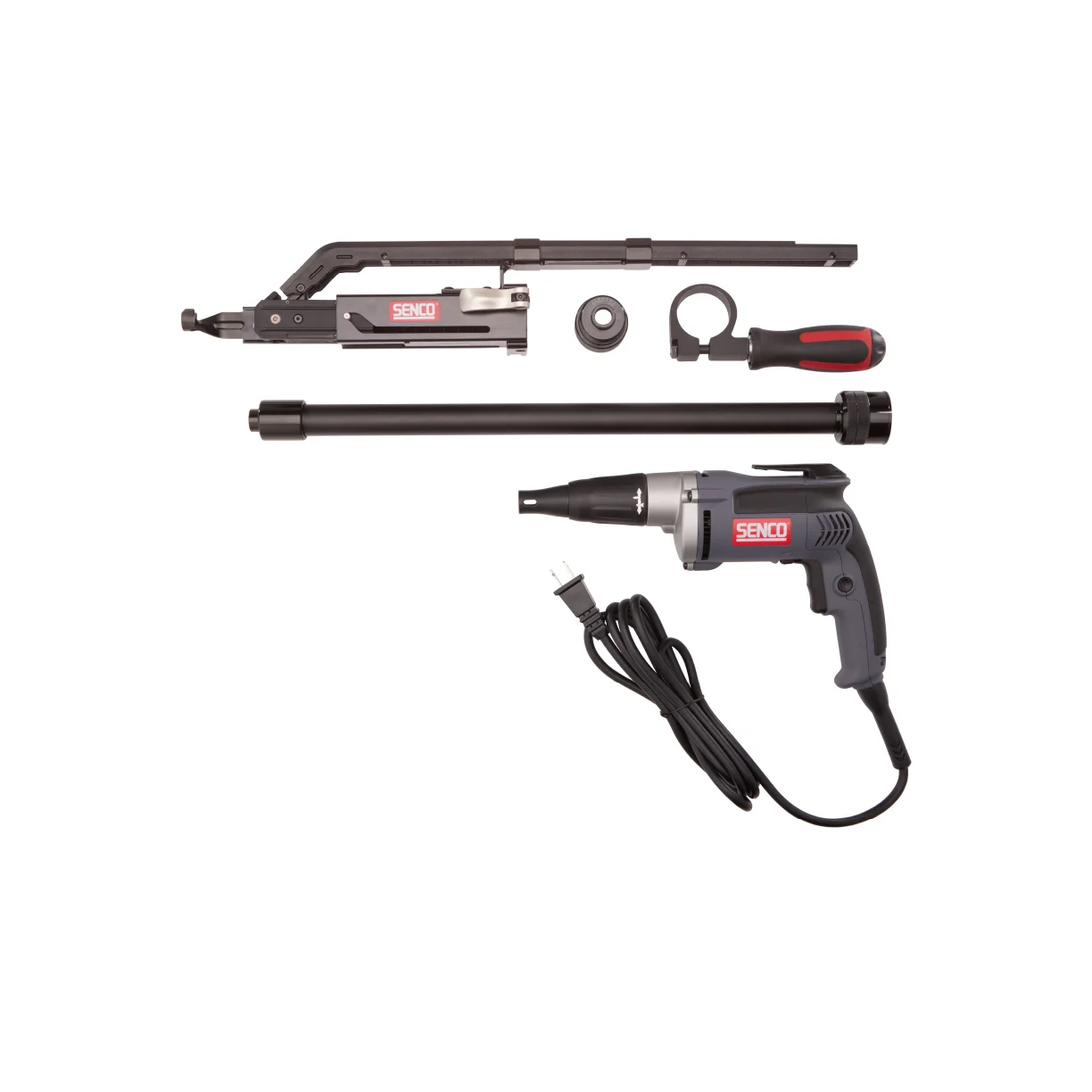

- Includes: SG2510 High-Torque Screwdriver, DS530 3” Auto-Feed Attachment, Extension Pole, Adapter, Adjustable Handle, Storage Bag, (3) Drive Bits EA0314 EA0315 EA0316
Bits
Compatible Bits
FASTENERS
Compatible Fasteners

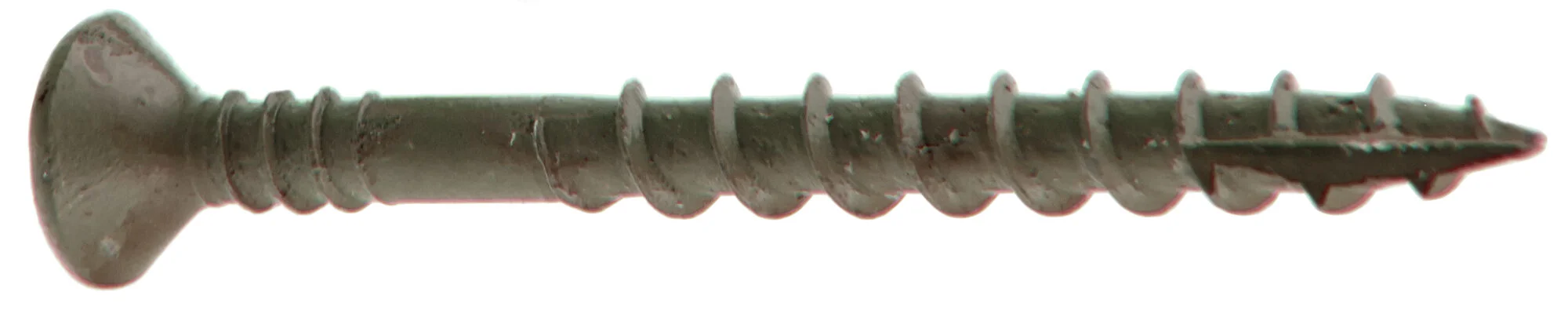

Application: Decking And Docks
Diameter: #8
Range: 2-1/2" - 3"
Thread: 2/3 Coarse
Finish: 304 Stainless Steel
Quantity: 800
Drive Type: Square
Point: Cut (Type 17)
Head: Flat
Diameter: #8
Range: 2-1/2" - 3"
Thread: 2/3 Coarse
Finish: 304 Stainless Steel
Quantity: 800
Drive Type: Square
Point: Cut (Type 17)
Head: Flat
Application: Decking And Docks
Diameter: #8
Range: 2" - 3"
Thread: 2/3 Coarse
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Cut (Type 17)
Head: Flat
Diameter: #8
Range: 2" - 3"
Thread: 2/3 Coarse
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Cut (Type 17)
Head: Flat
Application: Composite Decking
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Brown
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Brown
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan
Application: Composite Decking
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Gray
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Gray
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan
Application: Composite Decking
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Tan
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Tan
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan
Application: Composite Decking
Diameter: #8
Range: 2-1/2" - 3"
Thread: 2/3 Coarse
Finish: Exterior
Quantity: 800
Drive Type: Square
Point: Cut (Type 17)
Head: Trim
Diameter: #8
Range: 2-1/2" - 3"
Thread: 2/3 Coarse
Finish: Exterior
Quantity: 800
Drive Type: Square
Point: Cut (Type 17)
Head: Trim

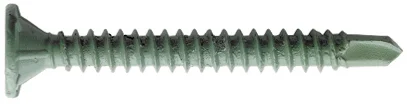

Application: Cement Board
Diameter: #8
Range: 1-1/2
Thread: Fine
Finish: Exterior
Quantity: 4000
Drive Type: Square
Point: Drill
Head: Wafer + Nibs
Diameter: #8
Range: 1-1/2
Thread: Fine
Finish: Exterior
Quantity: 4000
Drive Type: Square
Point: Drill
Head: Wafer + Nibs

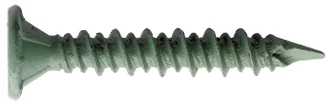

Application: Cement Board
Diameter: #8
Range: 1-1/4" - 2"
Thread: High Low
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Spoon
Head: Wafer + Nibs
Diameter: #8
Range: 1-1/4" - 2"
Thread: High Low
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Spoon
Head: Wafer + Nibs

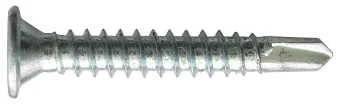

Application: Wood to Light Steel
Diameter: #8
Range: 1-1/2
Thread: Double
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Sharp
Head: Flat
Diameter: #8
Range: 1-1/2
Thread: Double
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Sharp
Head: Flat
