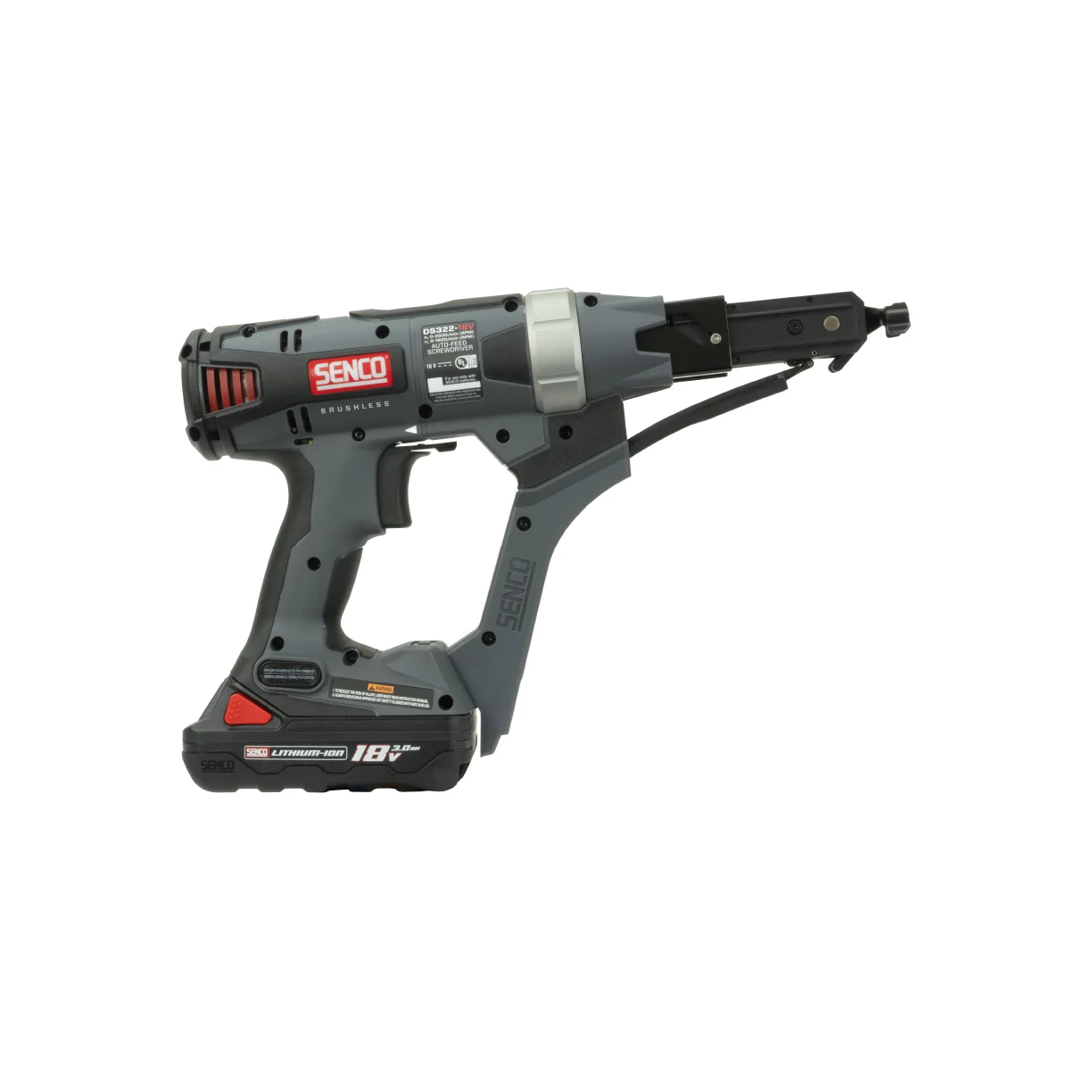

DS322-18V
DS322-18V_180

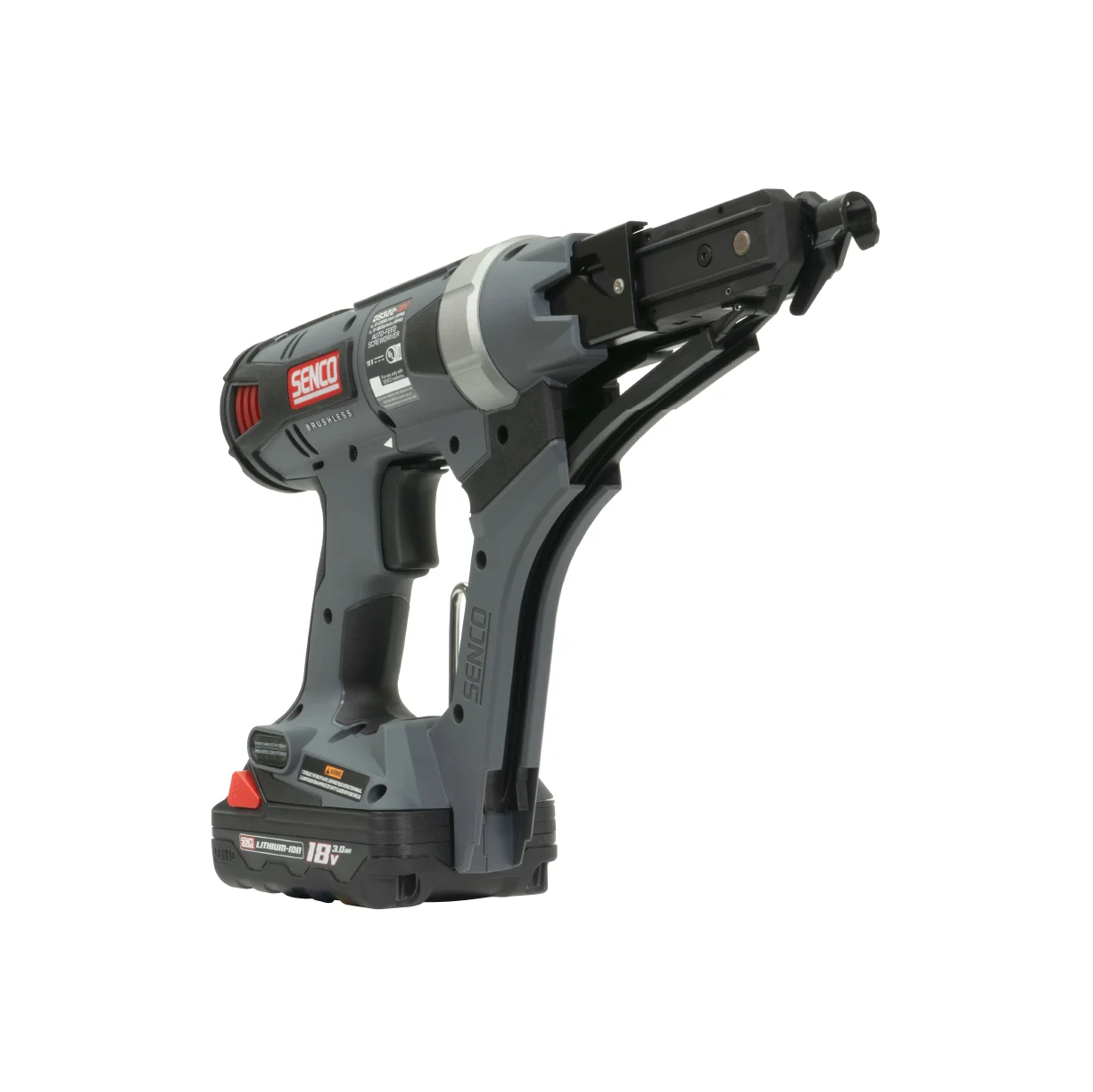

DS322-18V_Facing_Left_Low_Elevation

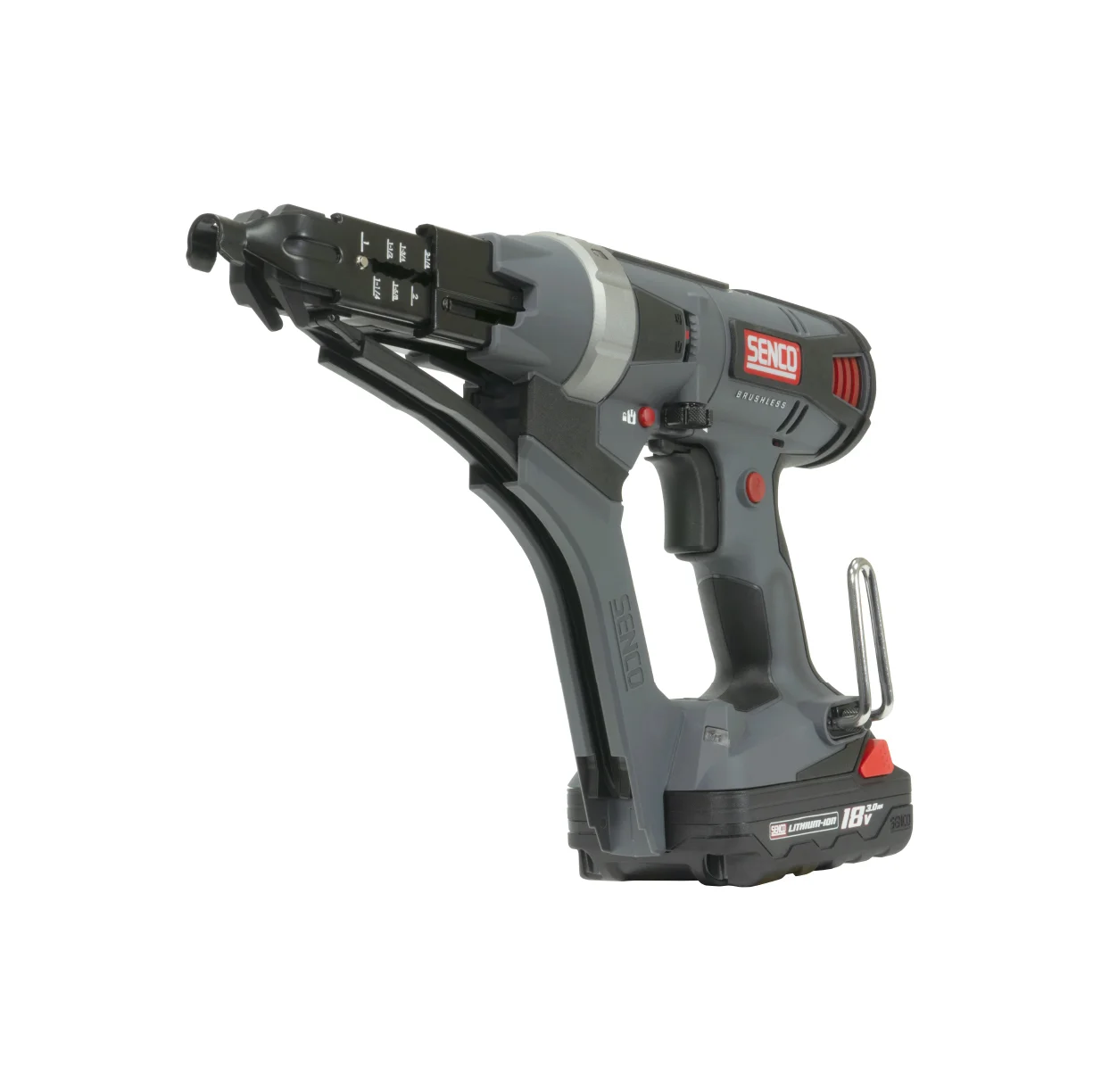

DS322-18V_Facing_Right_Low_Elevation
DS332-18V_Facing_Right_Elevated_w_Fasteners

DS322-18V

3" 2500 RPM Cordless Auto-Feed Screwdriver

  • Patented corner-fit feed system
  • Detachable feed system to expose bit for quick reversing
  • Selectable 2500/1600 RPM high torque brushless motor
  • Precise depth of drive adjustment with depth lock
  • Quick slide button bit change
Powered by an efficient brushless motor, this high torque auto-feed screwdriver includes two extended life 3.0Ah batteries, a variable speed selector for heavy steel, a quick release feed system with our patented corner fit technology. The DS322-18V also features feed on return - the next screw is aligned with the...
read more

DS322-18V

3" 2500 RPM Cordless Auto-Feed Screwdriver

Features
1

CORNER-FIT FEED SYSTEM

Improved line of sight and better corner access

2

FEED ON RETURN

Screws are in place before you drive for faster and more consistent performance

3

REMOVABLE FEED SYSTEM

Detachable feed system for easier reversing

4

HIGH TORQUE BRUSHLESS MOTOR

Provides increased performance and battery life with reduced size

5

SPEED SELECTION BUTTON (1600 RPM)

Quickly decrease the maximum speed for heavy steel applications

6

ADJUSTABLE DEPTH-OF-DRIVE WITH DEPTH LOCK

For consistent flush drive or countersink (knob is on the reverse side, not shown)

7

EXTENDED LIFE 3.0AH LI-ION BATTERY

Uses latest cell technology for increased power and capacity

8

QUICK SLIDE BIT RELEASE

Easily insert or remove bits

9

1”-3” TOOL FREE ADJUSTABLE NOSEPIECE

Single nosepiece for wood and drywall applications with easy-to-read length markings

10

QUICK TOGGLE REVERSE SWITCH

Easily switch between forward and reverse

11

VARIABLE SPEED TRIGGER

Change RPMs for self-tapping screws into steel

12

PATENTED SCREW GUIDE

Prevents screw binding for consistent feeding

Applications
  • High torque applications including flooring
  • Decking
  • Docks
  • Crating
  • Gypsum/sheathing to heavy steel
  • Tile Roofing

SPECIFICATIONS

  • Item #: 10C0001N
  • Tool Weight: 5.95 lbs (2.7 kgs)
  • Height: 9.5625" (244 mm)
  • Length: 14.5" (369 mm)
  • Width: 3.375" (85 mm)
  • Warranty: 5 years
  • Battery: 3.0Ah 18V Li-Ion Battery
  • Fasteners Per Charge: 2000
  • Technology: DURASPIN
  • Trigger Type: Variable with Lock
  • Power Type: Cordless
  • Screw Diameteres: #6 - #12
  • RPM: 0 - 2500
  • Range: 1" - 3"
  • Includes: (2) Drive Bits EA0297, EA0298, (2) VB0190 3.0Ah Li-Ion Extended Life Batteries, Charger, and Storage Bag

Bits

Compatible Bits

EA0400Phillips Bit

EA0401Square Bit

EA0402Rex Bit

FASTENERS

Compatible Fasteners
Application: WoodtoHeavySteelSWNWDEX
Diameter: #8
Range: 2
Thread: Fine
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Wing Drill
Head: Wafer + Nibs
Application: WoodtoLightSteelSFSHCZ
Diameter: #8
Range: 1-1/2
Thread: Double
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Sharp
Head: Flat
Application: WoodtoWoodSFCTCZ
Diameter: #8
Range: 1-1/4
Thread: Coarse
Finish: Clear Zinc
Quantity: 4000
Drive Type: Square
Point: Cut (Type 17)
Head: Flat
Application: WoodtoWoodSFCTYZ
Diameter: #8
Range: 1-3/4
Thread: Coarse
Finish: Yellow Zinc
Quantity: 4000
Drive Type: Square
Point: Cut (Type 17)
Head: Flat
Application: WoodtoWoodSFSHYZ
Diameter: #8
Range: 1-1/2" - 3"
Thread: Coarse
Finish: Yellow Zinc
Quantity: 1000
Drive Type: Square
Point: Sharp
Head: Flat
Application: WoodtoWoodSTNSHYZ
Diameter: #8
Range: 2
Thread: High Low
Finish: Yellow Zinc
Quantity: 4000
Drive Type: Square
Point: Sharp
Head: Trim Head + Nibs
Application: WoodtoHeavySteelRFWT3YZ
Diameter: #12
Range: 1-3/4
Thread: Fine
Finish: Yellow Zinc
Quantity: 1000
Drive Type: Rex
Point: Wing T3 Drill
Head: Flat

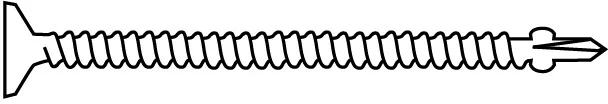

Application: WoodtoHeavySteelRFWT5YZ
Diameter: #12
Range: 2" - 2-1/2"
Thread: Fine
Finish: Yellow Zinc
Quantity: 1000
Drive Type: Rex
Point: Wing T5 Drill
Head: Flat
Application: WoodtoHeavySteelSFPICZ
Diameter: #8
Range: 2
Thread: Fine
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Pilot
Head: Flat
Application: WoodtoHeavySteelSWDRCZ
Diameter: #10
Range: 1-1/4
Thread: Fine
Finish: Clear Zinc
Quantity: 4000
Drive Type: Square
Point: Drill
Head: Wafer
Application: WoodtoHeavySteelSWNWDCZ
Diameter: #8
Range: 1-5/8
Thread: Fine
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Wing Drill
Head: Wafer + Nibs
Application: SpecialtySROWCTCZ
Diameter: #8
Range: 1-1/4
Thread: Coarse
Finish: Clear Zinc
Quantity: 4000
Drive Type: Square
Point: Cut (Type 17)
Head: Round Washer
Application: MetaltoMetalSMFPDRCZ
Diameter: #10
Range: 1
Thread: Fine
Finish: Clear Zinc
Quantity: 1000
Drive Type: Square
Point: Drill
Head: Mod Flat Pan
Application: GypsumtoHeavySteelPBDRCZ
Diameter: #6
Range: 1-1/4" - 1-5/8"
Thread: Fine
Finish: Clear Zinc
Quantity: 4000
Drive Type: Phillips
Point: Drill
Head: Bugle
Application: GypsumtoHeavySteelPBDREX
Diameter: #6
Range: 1-1/4" - 3"
Thread: Fine
Finish: Exterior
Quantity: 1000
Drive Type: Phillips
Point: Drill
Head: Bugle
Application: GypsumtoHeavySteelPBDRGP
Diameter: #6
Range: 1-1/4" - 2"
Thread: Fine
Finish: Gray Phosphate
Quantity: 4000
Drive Type: Phillips
Point: Drill
Head: Bugle
Application: CompositeDeckingScrewsSCPSHEB
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Brown
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan
Application: CompositeDeckingScrewsSCPSHEG
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Gray
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan
Application: CompositeDeckingScrewsSCPSHET
Diameter: #8
Range: 2-1/2
Thread: Multi-Thread
Finish: Exterior Tan
Quantity: 800
Drive Type: Square
Point: Sharp
Head: Cupped Pan
Application: CompositeDeckingScrewsSTCTEX
Diameter: #8
Range: 2-1/2" - 3"
Thread: 2/3 Coarse
Finish: Exterior
Quantity: 800
Drive Type: Square
Point: Cut (Type 17)
Head: Trim
08D200W_SCREW
Application: DeckingAndDocksSFCTEX
Diameter: #8
Range: 2" - 3"
Thread: 2/3 Coarse
Finish: Exterior
Quantity: 1000
Drive Type: Square
Point: Cut (Type 17)
Head: Flat
Application: DeckingAndDocksSFCTSS
Diameter: #8
Range: 2-1/2" - 3"
Thread: 2/3 Coarse
Finish: 304 Stainless Steel
Quantity: 800
Drive Type: Square
Point: Cut (Type 17)
Head: Flat
